7 Accessories
The following describes how to connect and operate accessory components to the system� These com-
ponents are not included in the scope of supply� They can be ordered separately as accessories (see the
chapter 3�4 Accessories)�
If non-Renfert accessories are used, no warranty can be assumed for the functionality� If necessary,
device-specific settings settings are required on the additional device.
7.1 EASY view 3D HDMI-Video-Recorder
With the HDMI-Video-Recorder, video sequences can be recorded with audio on a USB memory stick�
To do so, the HDMI-Video-Recorder is inserted between the head and the monitor�
The USB stick is connected to the HDMI-Video-Recorder�
7.1.1 Connecting
The HDMI-DVI-cable of the monitor must be replaced with the HDMI-HDMI cable of the HDMI-Video-
Recorder (included).
⇒ With the exception of the power supply (20, Fig� 2), remove all
connectors from the head�
⇒ Remove the retaining clips and remove the cable duct�
⇒ Pull the HDMI-DVI cable of the monitor out of the cable duct�
⇒ Insert the HDMI-HDMI cable of the HDMI-Video-Recorder into
the cable duct using the insertion aid� Refer to Chapter 8�3
⇒ Put retaining clips back on and secure cable duct to the sup-
port arm�
⇒ Connect the HDMI-HDMI cable of the HDMI-Video-Recorder
to the head in the connection (21, Fig� 2) and to the HDMI-
Video-Recorder to the connection HDMI IN (51)�
⇒ Plug the HDMI-DVI cable of the monitor to the HDMI-Recorder
connection HDMI OUT (50)�
⇒ Insert another USB stick into the connection USB HOST (53)�
⇒ Connect the HDMI-Video-Recorder's power supply to the
connection DC IN (52)� Ensure that the color coding is correct
between the connection cable and socket!
⇒ Insert the power plug into the building installed wall socket�
♦ The signal LED (55) turns green, signaling the system is
ready to record�
If the supplied USB stick is used as a storage medium and connected to the HDMI-Video-Record-
er, screen shots can not be recorded. If both screen shots and video sequences are to be record-
ed, a second USB stick must be used.
Recording is not possible until about 30 seconds after switching on the HDMI-Video-Recorder or
30 seconds after the USB stick has been inserted.
7.1.2 Recording video
When the HDMI-Video-Recorder is connected, video sequences can be recorded on a connected storage
medium such as the USB stick� The screen data, which is sent from the head to the monitor, is recorded�
Video sequences can be recorded in both 2D and 3D modes� In order to be able to view 3D video se-
quences at a PC later, a 3D-capable monitor and 3D glasses are required�
To record video sequences:
⇒ Press the REC button (56, Fig� 35) on the HDMI-Video-Recorder�
♦ Video recording starts�
♦ The signal LED (55, Fig� 35) turns red�
⇒ Press the REC button on the HDMI-Video-Recorder again�
♦ The video recording is stopped and the data is stored on the storage medium�
♦ The signal LED flashes red, the data is saved.
♦ The signal LED turns green and the HDMI-Video-Recorder is ready for recording again�
When the signal LED is red or flashing, the USB memory stick should not be removed, as the data
will not be stored correctly and data loss will occur.
- 19 -

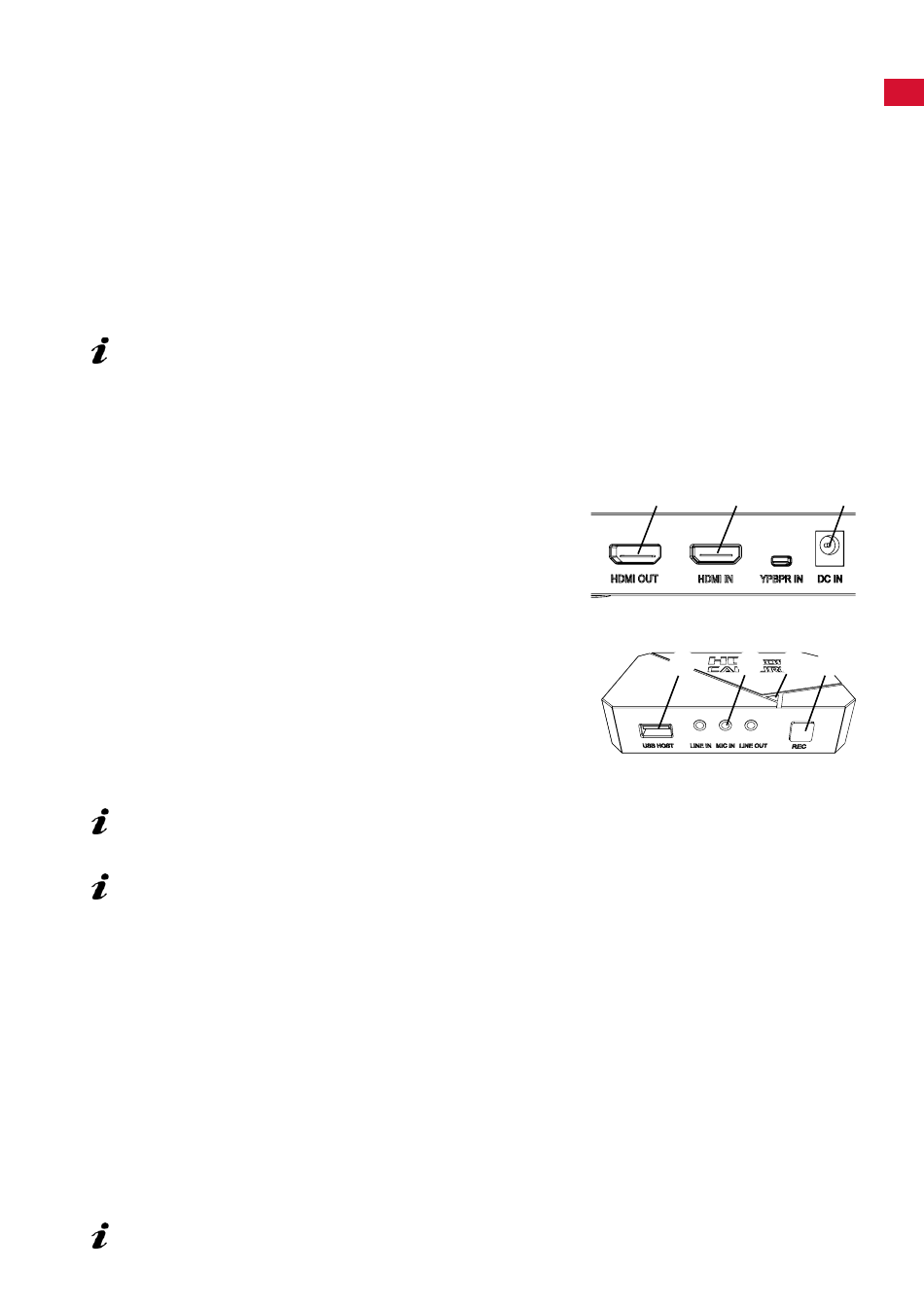

50 51
