5.4 Set up
There are two options for focusing the image:
• Coarse adjustment by moving the head with the support arm�
• Fine adjustment through height adjustment (6, Fig� 1)�
The amount of force required for the movement of the support arm, head and height adjustment can be
adjusted using the fastening and clamping screws, see Chapter 5�5�
The following procedure is recommended:
⇒ Align the head parallel to the table�
⇒ Place the object on the desk pad within the cone of light�
⇒ Set the head to the middle of the height adjustment�
⇒ Set the head on the support arm so that the object can be seen on the monitor and if necessary adjust
the height adjustment�
This allows you to quickly correct the focus for objects with different heights.

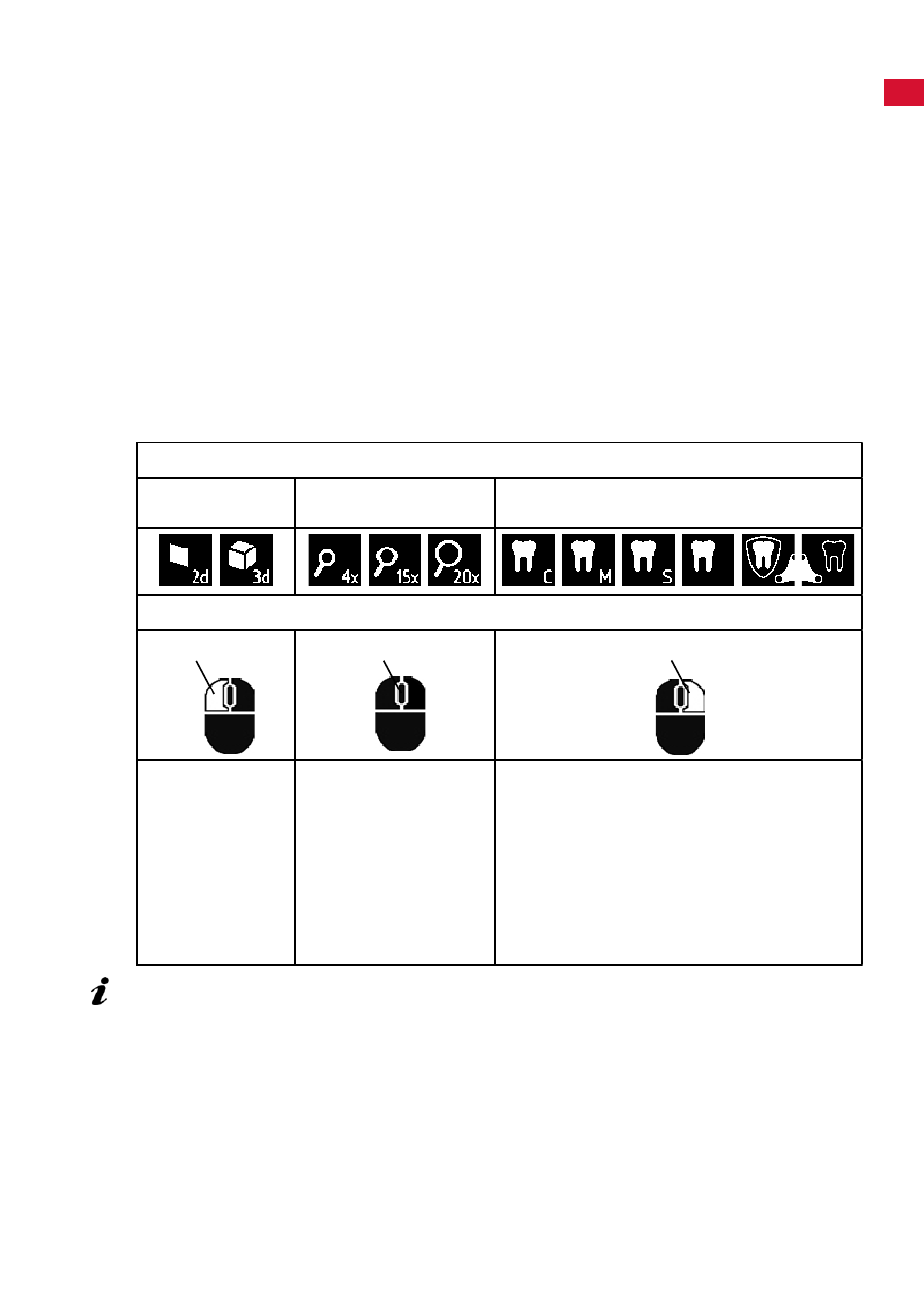

5.5 System settings
The current settings of the system are displayed on the monitor at the bottom left�
As soon as the mouse is moved, the monitor displays the available settings and with which element of the
mouse the setting can be changed�
2D/3D representa-
tion
A
⇒ Left mouse button
(A)
♦ Switch between
2D and 3D
display
4 x magnification provides a wider field of view and greater depth of field. This mode allows the
visualization of a complete dental arch and is particularly suitable for documentation.
However, a 3D display is NOT possible.
System settings
Magnification
(4x, 15x, 20x)
Changing the system settings
B
⇒ Mouse wheel (B) rota-
tion forward / backward
♦ Switch of magnifica-
tion between 4x, 15x
and 20x
⇒ Press / rotate the mouse
wheel (B)
♦ Adjust the brightness
of an object mode
(see Chapter 5�5�1)�
- 11 -
Object mode (ceramic, metal, standard, neutral),
see Chapter 5�5�1�
C
⇒ Right mouse button (C)
♦ Switch object modes
