Technische Daten • Einzelkomponenten
5 Slot Buseinheiten
PCI Slot 4
PCI Slot 2
PCI Slot 5
PCI Slot 3
5AC901.BX05-00
PCI Slot 4
PCI Slot 5
PCIe Slot 2 (x1)
5AC901.BX05-02
PCIe Slot 3 (x8) PCIe Slot 1 (x1)
3.5.1.2 Bestelldaten
Bestellnummer Kurzbeschreibung
Buseinheiten
5AC901.BX01-00 APC910 1-Slot Bus - 1 PCI
5AC901.BX01-01 APC910 1-Slot Bus - 1 PCI Express x8
5AC901.BX02-00 APC910 2-Slot Bus - 2 PCI
5AC901.BX02-01 APC910 2-Slot Bus - 1 PCI - 1 PCI Express x8
5AC901.BX02-02 ≤ Rev. C0 APC910 2-Slot Bus - 2 PCI Express x4
5AC901.BX02-02 ≥ Rev. D0 APC910 2-Slot Bus - 2 PCI Express x4, offenes Ende
5AC901.BX05-00 APC910 5-Slot Bus - 5 PCI
5AC901.BX05-01 APC910 5-Slot Bus - 4 PCI - 1 PCI Express x8
5AC901.BX05-02 APC910 5-Slot Bus - 2 PCI - 1 PCI Express x8 - 2 PCI Express
x1
5AC901.BX05-03 APC910 5-Slot Bus - 2 PCI Express x4 - 3 PCI Express x1
Tabelle 52: 5AC901.BX01-00, 5AC901.BX01-01, 5AC901.BX02-00, 5AC901.BX02-01, 5AC901.BX02-02,
5AC901.BX05-00, 5AC901.BX05-01, 5AC901.BX05-02, 5AC901.BX05-03 - Bestelldaten
88
PCI Slot 4
PCI Slot 5
PCI Slot 1
5AC901.BX05-01
PCIe Slot 3 (x4)
PCIe Slot 4 (x4)
5AC901.BX05-03

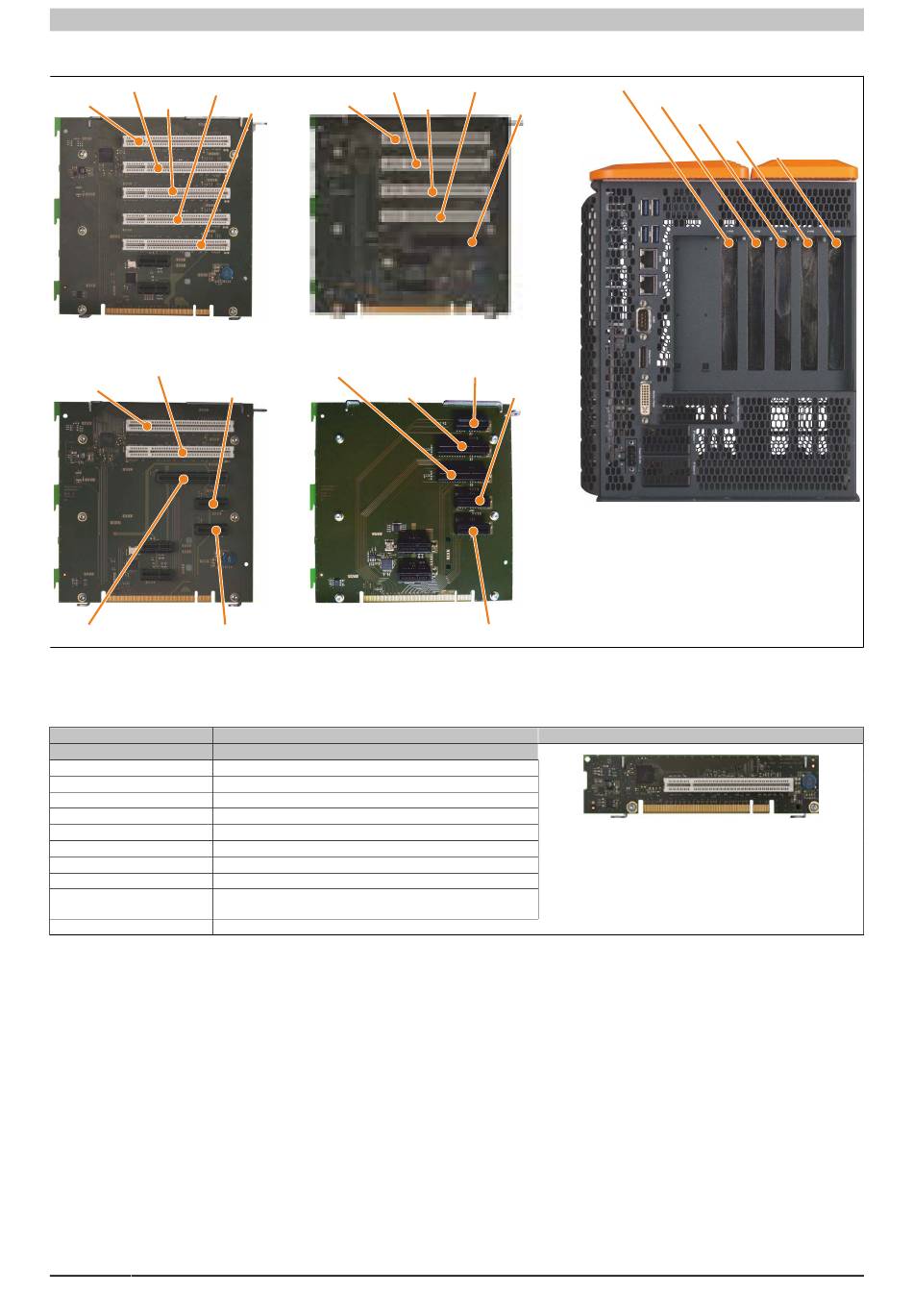

Abbildung 33: 5 Slot Buseinheiten

PCI Slot 2
PCI Slot 3
PCIe Slot 1 (x8)
PCIe Slot 5 (x1)
PCIe Slot 2 (x1)
PCIe Slot 1 (x1)
PCI/PCIe Slot 1
PCI/PCIe Slot 2
PCI/PCIe Slot 3
PCI/PCIe Slot 4
PCI/PCIe Slot 5
5PC910.SX05-00
Abbildung
