GEARSHIFT
INSTALLING THE REAR WHEEL
1. Place the chain on the pinion.
2. Place the rear wheel into the drop-out. Ensure that the wheel
is placed straight in the holder.
3. Push the shifting protection bracket (if present) and the wash-
ers onto the axle.
4. For models without quick clamp: Attach the wheel with the
axle nuts on both sides with an 18 mm wrench. Tighten the
axle nuts (s. chapter Torque specifications).
For models with quick clamp: Close the quick clamp properly
(s. chapter Quick clamp).
5. Plug in the plug of the motor cable (model with rear wheel
motor).

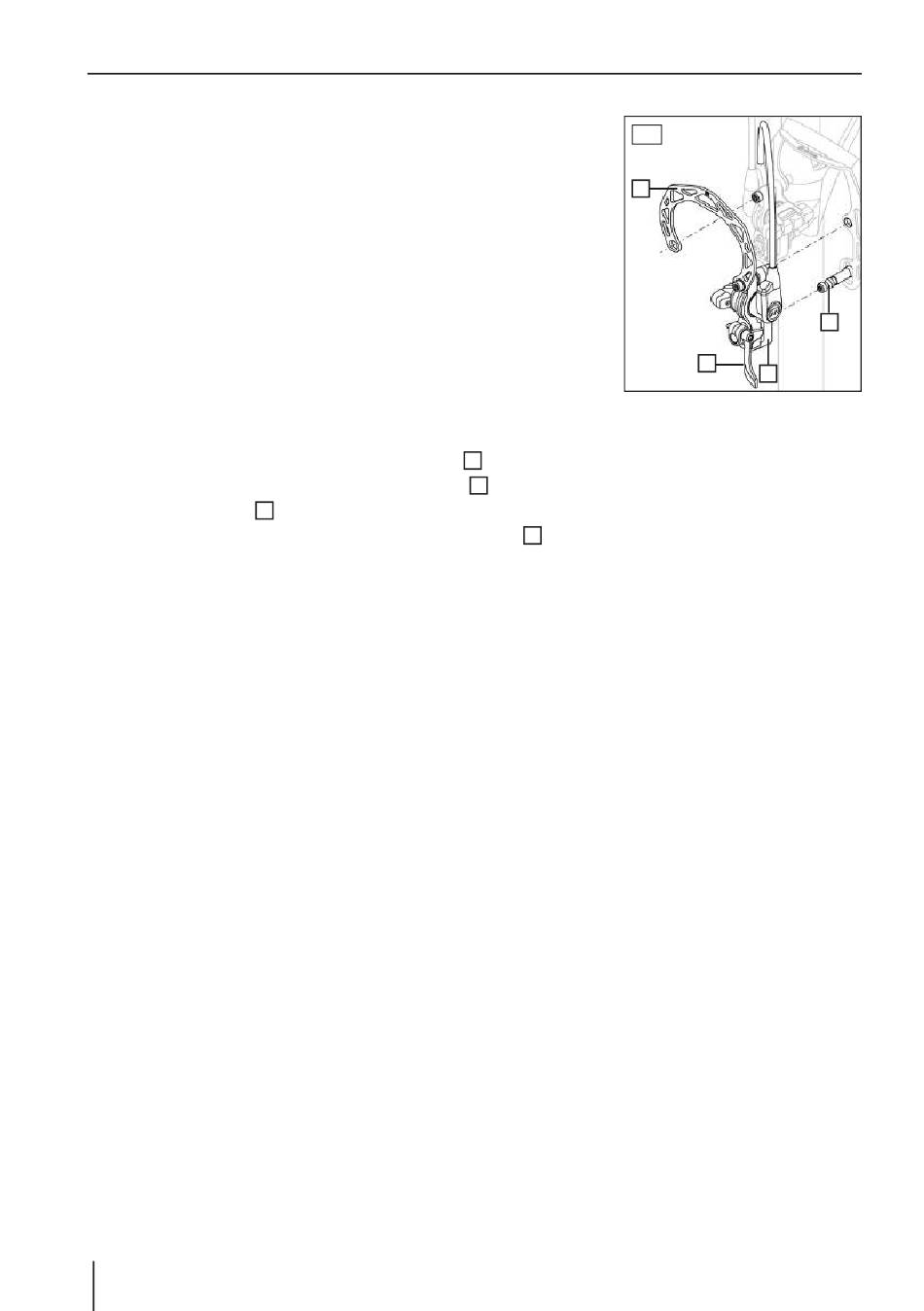

6. V-brake rim brake: Connect the brake cable
Hydraulic rim brake: Push the brake cylinder
cantilever socket
1
7. Hydraulic rim brake: Close the quick-clamping lever
[CLOSE]. If the lever closes too easily, the quick-clamping
screw must be adjusted (see chapter Brakes).
8. Check that the brake works properly and adjust it if necessary
(s. chapter Brake).
9. Set the gearshift (s. chapter Gearshift).
EN 66
(fig. BY).
BY
4
(fig. BX) again.
1
back onto the
2
(fig. BY)
3
1
3
2
