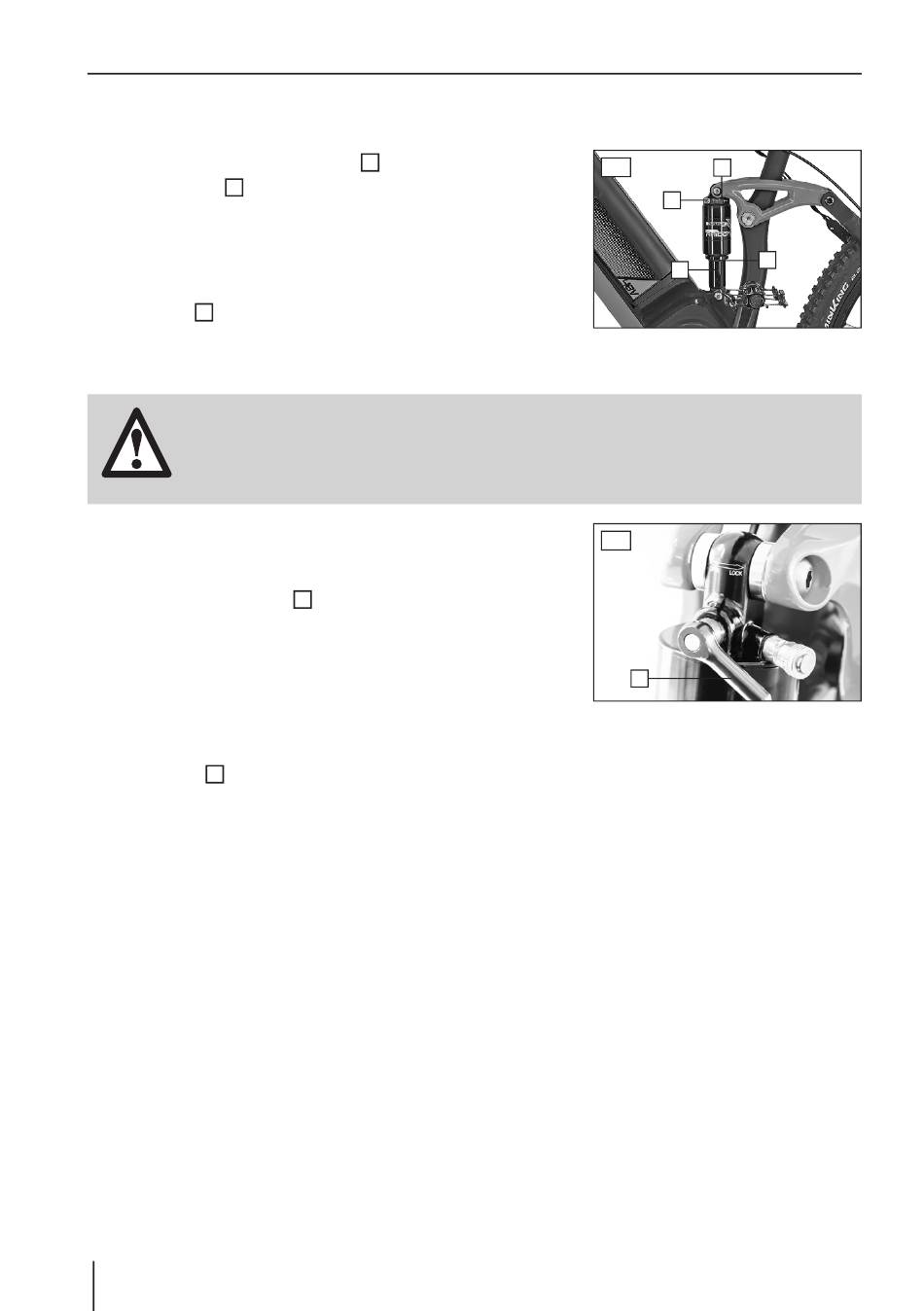

DAMPER (SHOCK)
MEASURING THE SAG VALUE
1. Attach a cable tie to the piston
the dust seal (fig. AB).
2
2. Sit on the bike in the riding position. Do not rock to avoid
falsifying the SAG value.
3. Carefully get off of the bicycle.
4. Measure the negative deflection (SAG value) between the
dust seal (fig. AB) of the damper and the cable tie.
2
SETTING THE DAMPER
• D o not exceed the maximum air pressure released for the damper (20.7 bar/300p-
si). Damage to the damper and frame may occur.
Danger of damage and accidents!
DANGER
Use an air pump with pressure gauge to set or check the
air pressure.
1. Take off the valve cap
2. Apply the air pump to the valve of the damper and check
the air pressure at the pressure gauge.
3. Check the air pressure if necessary.
SWITCHING THE SUSPENSION ON/OFF
Turn the lever (Fig. AC) towards LOCK blocks the spring
1
travel. Reactivate the spring function by turning the lever
towards OPEN.
EN 26
(fig. AB) and push it to
3
(fig. AC).
2
AB
1
4
2
3
AC
1
