• Replace the brake pads only with genuine spare parts. Always ensure that you only
use brake pads that are suitable for the rim used (steel or aluminium). Proper func-
tion is otherwise not ensured. Danger of accident!
• Replace the brake pads only in pairs, since the brake will otherwise not work cor-
DANGER
rectly or the brake performance will reduce. Danger of accident!

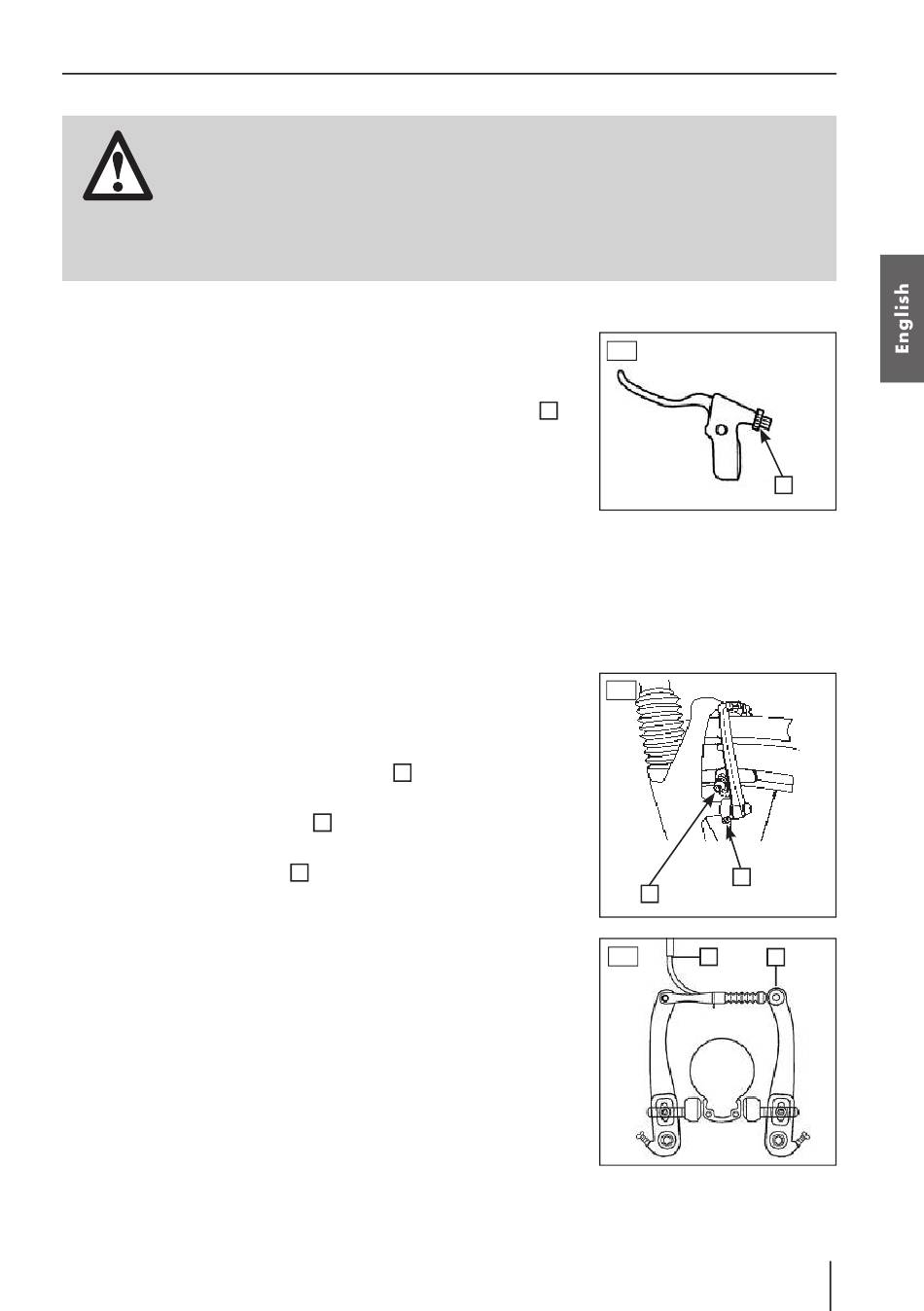

ADJUSTING THE BRAKE LEVER
The idle path of the brake lever is regulated by the tension of
the brake cable.
1. Release the counter-ring and then turn the setting screw
(fig. AH), to regulate the idle path of the brake lever.
2. Hold the setting screw and tighten the counter-ring well until
it pushes against the lever housing.
3. After setting, actuate the brake lever approx. 8–10 times
when standing in order to remove play at the brake lever and
the brake linings.
4. Adjust the idle path of the brake lever again if necessary.
EXCHANGING THE BRAKE PADS
The brake linings (also called brake pads) wear when used.
Therefore, regularly check their wear and replace them with-
out delay, at the latest when brake force is lost:
1. Release the screws of the brake pads
and right sides with a 5 mm hexagonal socket wrench.
2. Disconnect the brake cable
3. Replace the two brake pads.
4. Connect the brake cable
5. Then adjust the brake pads and the brake lever anew.
All manuals and user guides at all-guides.com
(fig. AI) on the left
1
(fig. AJ).
1
(fig. AJ) again.
1
AH
1
AI
1
AJ
1
BRAKE
1
2
2
EN 29
