49
d
.
49
1
.
49
2
.
49
3

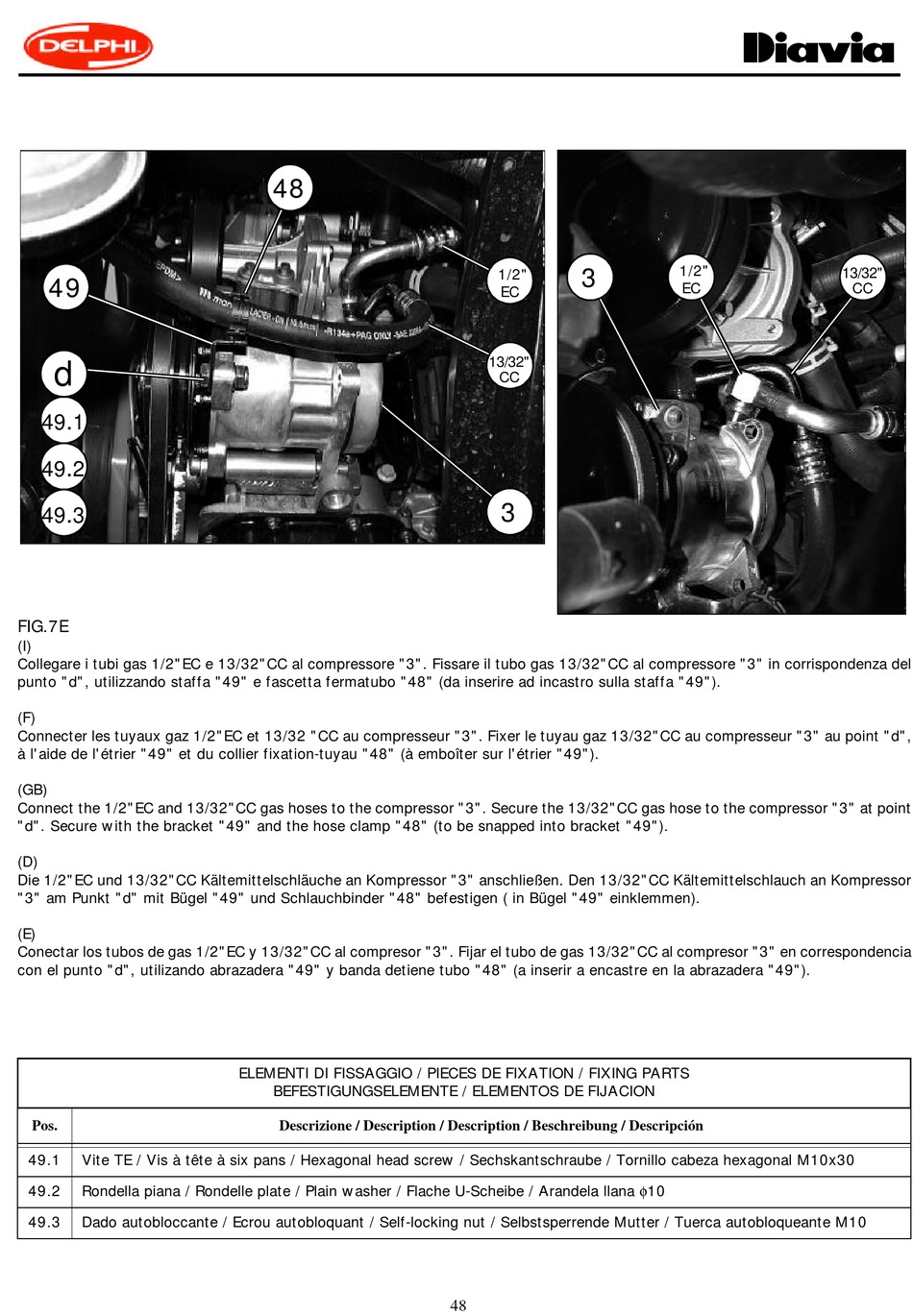

FIG.7E
(I)
Collegare i tubi gas 1/2"EC e 13/32"CC al compressore "3". Fissare il tubo gas 13/32"CC al compressore "3" in corrispondenza del
punto "d", utilizzando staffa "49" e fascetta fermatubo "48" (da inserire ad incastro sulla staffa "49").
(F)
Connecter les tuyaux gaz 1/2"EC et 13/32 "CC au compresseur "3". Fixer le tuyau gaz 13/32"CC au compresseur "3" au point "d",
à l'aide de l'étrier "49" et du collier fixation-tuyau "48" (à emboîter sur l'étrier "49").
(GB)
Connect the 1/2"EC and 13/32"CC gas hoses to the compressor "3". Secure the 13/32"CC gas hose to the compressor "3" at point
"d". Secure with the bracket "49" and the hose clamp "48" (to be snapped into bracket "49").
(D)
Die 1/2"EC und 13/32"CC Kältemittelschläuche an Kompressor "3" anschließen. Den 13/32"CC Kältemittelschlauch an Kompressor
"3" am Punkt "d" mit Bügel "49" und Schlauchbinder "48" befestigen ( in Bügel "49" einklemmen).
(E)
Conectar los tubos de gas 1/2"EC y 13/32"CC al compresor "3". Fijar el tubo de gas 13/32"CC al compresor "3" en correspondencia
con el punto "d", utilizando abrazadera "49" y banda detiene tubo "48" (a inserir a encastre en la abrazadera "49").
Pos.
49.1
Vite TE / Vis à tête à six pans / Hexagonal head screw / Sechskantschraube / Tornillo cabeza hexagonal M10x30
Rondella piana / Rondelle plate / Plain washer / Flache U-Scheibe / Arandela llana φ10
49.2
49.3
Dado autobloccante / Ecrou autobloquant / Self-locking nut / Selbstsperrende Mutter / Tuerca autobloqueante M10
48
ELEMENTI DI FISSAGGIO / PIECES DE FIXATION / FIXING PARTS
BEFESTIGUNGSELEMENTE / ELEMENTOS DE FIJACION
Descrizione / Description / Description / Beschreibung / Descripción
3
1/2"
EC
13/32"
CC
3
48
1/2"
13/32"
EC
CC
