Operation ILR11xx
6.2.3
In operating mode "DIST mm" or "DIST INCH" appears in the first line depending on the active unit. The cur-
rent measured value is displayed in the second line. When the keys
up.
DIST mm
2487
6.2.4
The current measured value is displayed in the first line. In the centre of the second line the energy value is
displayed as an alignment aid in the form of a bar graph. Q1 and Q2 can be taught directly by pressing the
appropriate button (the teach-in function is not possible if SSI mode is active).
Depending on the selected mode of the switching outputs (see teach-in menu) the rising or falling edge of the
switching output is taught with the set hysteresis in "Single switching" mode.
4564
In "Double switching" mode the teach-in point (LP) marks the centre of the switching points (rising or falling
Q1 ||| q2
edge). The switching points are located symmetrically in a distance of 100 mm around LP with the set
hysteresis.
Meaning of the display symbols:
Q1 = Output 1
q1 = Output 1
Example: QuickSet
current value:
Q2 = Output 2
4564 mm,
q2 = Output 2
Q1 ON,
Q2 OFF,
The appropriate LEDs (yellow) on the front of the sensor indi-
Incoming energy:
cate the state of the switching points also. Quit the menu with
50%
the Enter key or the ESCape function.
Page 70

Operation Mode

QuickSet
ON
OFF
ON
OFF
or are pressed the screen lights
Hysteresis
ILR
no hysteresis
with hysteresis
Q1
Mode
Mode
Q1

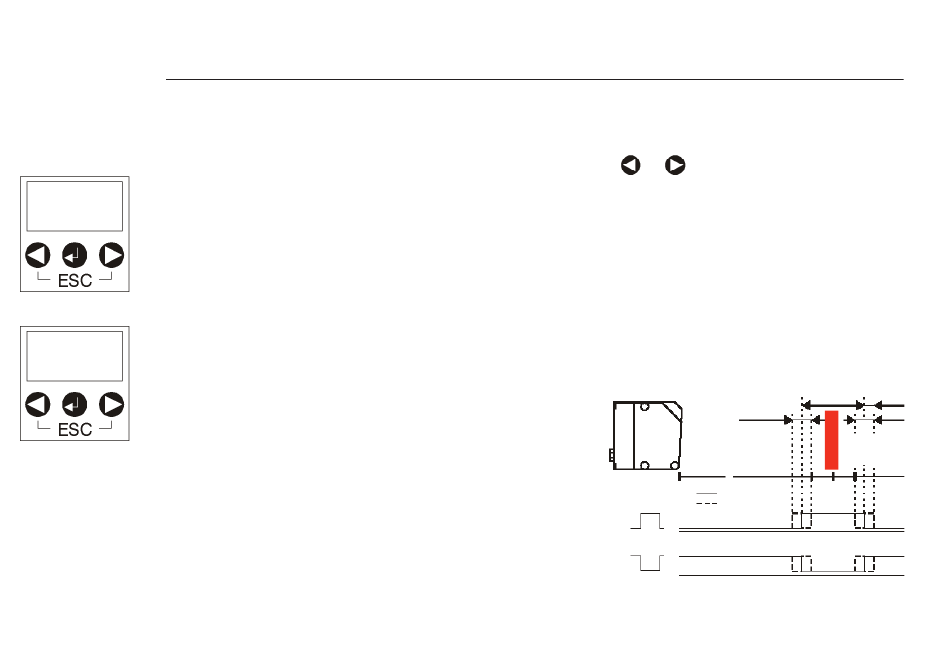

Fig. 6.1: Switching points in the double
switching mode, with and without hysteresis
±100 mm
Target
LP
