Operation ILR11xx
6.2
Once the device has been connected to the power supply the display shows the measured value if a target or
a reflector is in the path of the beam. The green "POWER" LED lights up. The sensor needs a warmup time of
about 15 min for repeatable measurements.
6.2.1
Display
Key
Page 66
ILR11xx

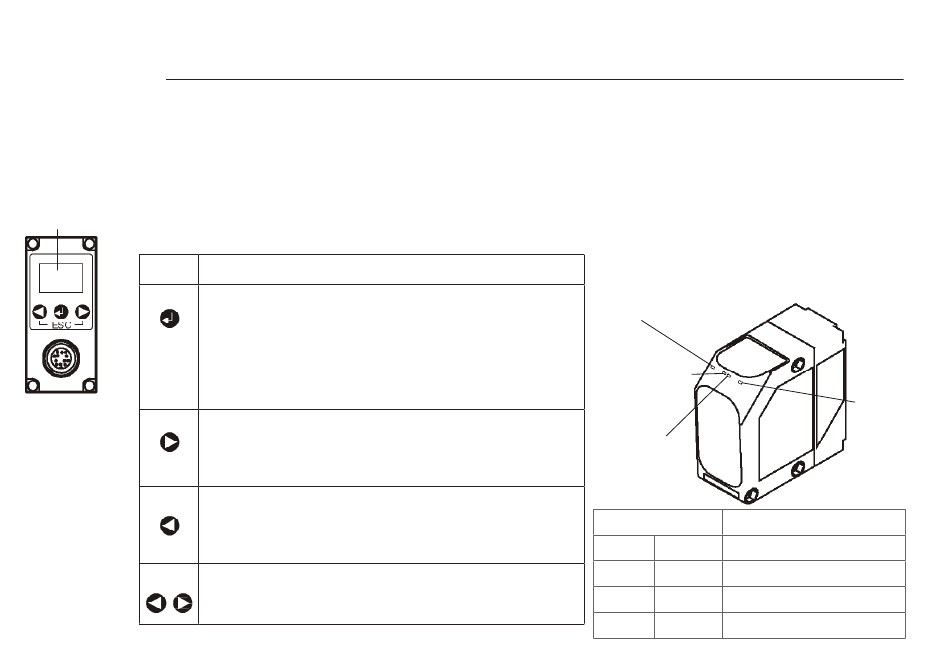

Control and Display Elements
Specification
- Select function, switch down one menu level
- Save value, switch up one menu level
- In operating mode:Switch to menu level (If password fun-
ction is active changes to password entry. Measuring mode
remains active until correct password has been entered).
- When editing e.g. switching points: Switches cursor positi-
on from right to left or stops entry if cursor is at the far left.
- Scrolls to the next function (right),
- Editing: Increase current digit by 1,
- In „QuickSet" menu it enables the teach-in of Q2,
- In measuring mode: Press this key to light up the display
- Scrolls to the next function (left),
- Editing: Decrease current digit by 1,
- In „QuickSet" menu it enables the teach-in of Q1,
- In measuring mode: Press this key to light up the display
Cancels active function and switches to next menu level
above (important: keys must be pressed simultaneously,
previous value is maintained unaltered)
The ILR11xx sensors are equipped with an LCD
display and 3 keys which control all
instrument functions.
LED Q
2
yellow
LED Power
green
LED Error
red
LED Beschreibung
Q leuchtet Schaltausgang Q
1
Q leuchtet Schaltausgang Q
2
Power leuchtet Versorgung vorhanden
Error leuchtet
LED Q
1
yellow
aktiv
1
aktiv
2
Fehler
