Operation ILR102x
Q -Setup
B

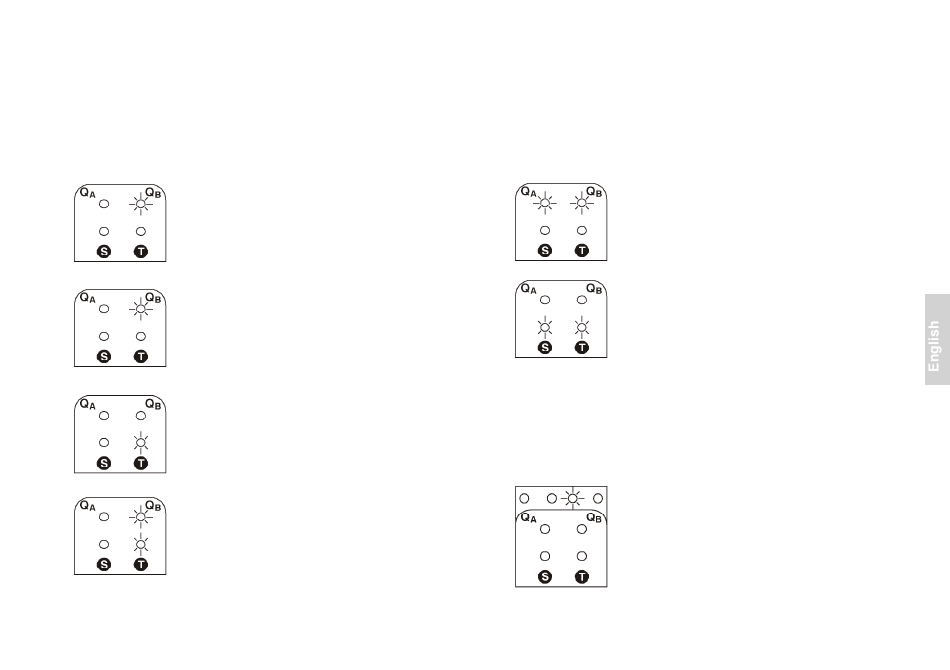

Setting switching point Q
Press the Toggle key until the menu LED
SB1 lights up. Position the reflector at the
desired switching point, then press the
Set key.
Setting switching window Q
Press the Toggle key until the menu LED
SB1 lights up. Position the reflector at the
desired first switching point, then press
the Set key.
Press the Toggle key until the menu SB2
lights up. Move the reflector to the desired
second switching point, then press the
Set key.
Invert switching output Q
Press the Toggle key until the menu LEDs
SB1 and SB2 light up. Press the Set key.
The output signal is inverted.
Analog-Setup
B
B
A
Setting analog output
Press the Toggle key until the menu LEDs
SA1 and SB1 light up. Position the reflector at
the desired 0% point (4 mA), then press the
Set key.
Press the Toggle key until the menu LEDs
SA2 and SB2 light up. Position the reflector at
the desired 100% point (20 mA), then press
the Set key.
If the set distance between the 0% and the
100% point is less than 600 mm the sensor
sets the analogue output automatically to
600 mm.The middle of the measuring range
is placed automatically between the two set
positions.
Switching between Fast and Slow mode
Press the Toggle key until the LED SLOW
lights up. Press Set key than the sensor
switches between FAST and SLOW mode.
LED SLOW flashes slow: SLOW mode
LED SLOW flashes fast: FAST mode
