Operation ILR102x
6.1.3
IMPORTANT!
Function for ILR1020
only.
Page 64
Factory setting
Press the Toggle key for 15 seconds
until the menu LEDs flash. The sensor is
set to factory setting.
Automatic Reflector Mode ILR1020
Zone A
high
Qn
low

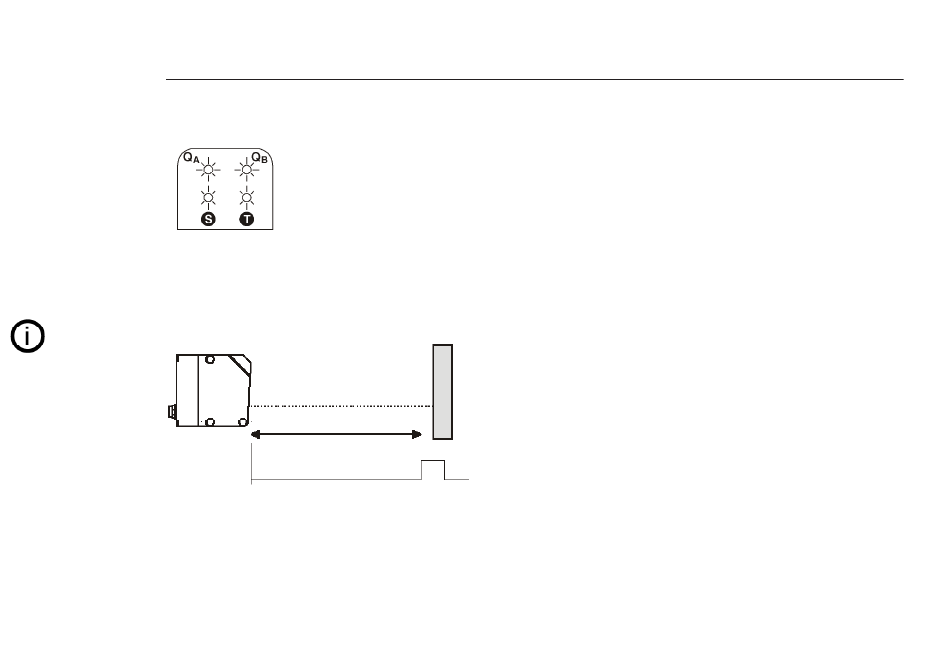

With this mode a scanning zone (window) is set for a si-
gnal output so that the detected surface of the background
object (automatic reflector) is approx. in midway between
the switch points Qn. 1 and Qn. 2. The background object
can also be moved (e.g. a conveyor belt). The sensor
now operates like a reflection light barrier. All objects are
detected in zone A (regardless of their degree of reflection
or possible mirroring surfaces, exception: transparent
objects).
Qn 1
Qn 2
To activate this mode: Set a window with the switching
points Qn1 and Qn2.
