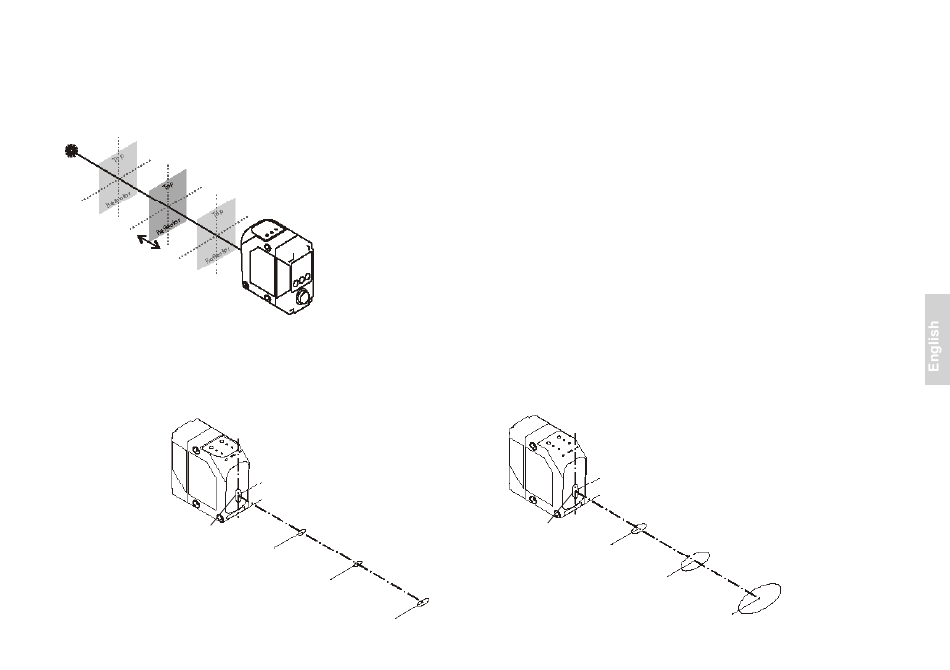

Fig. 5.4: Reflector orientation
5.3 Light Spot Geometry
5.3.1 ILR102x
10 x 5
Fig. 5.5: Light spot
geometry ILR1020
It is possible to align the sensor over a max. distance of approx. 50
m using the integrated red light target laser. For larger distances,
the aligning aid (ILR-AA1) listed in the accessories is to be used.
This aligning aid, makes it possible to check the position of the
red light target laser spot on the reflector at very long ranges
(> 100 m). When aligning first check that the light spot is in the
centre of the reflector at a very short distance (e. g. <1 m). The
reflector is then moved to its final position with the longest range
and the position of the light spot is checked again and adjusted if
necessary. Finally, check the position of the light spot again close-
up. The light spot must always be in the centre of the reflector
whatever the position. The fine adjustment set
as an accessory can be used for finer adjustment.
27.5
4 x 7
2 m
3 x 10
4 m
6 m
27.5
10 x 5
10 m
Fig. 5.6: Light spot
4 x 12
geometry ILR1021
(LR-FA1) available
Dimensions in
mm
15 x 20
30 x 40
45 x 60
20 m
30 m
