Installation
5. Installation
The sensor optoNCDT102x/110x/115x is an optical sensor for measurements with millimeter accuracy. Make
sure it is handled carefully when installing and operating.
5.1

Sensor Mounting

• The sensor is mounted by means of 3 screws type M5
• The laser beam must be directed perpendicularly onto the surface of the target. In case of misalignment it
is possible that the measurement results will not always be accurate.
• To align the sensor, please comply with the „Instructions for Operation", especially Chapter 7.
Light beam
42 (1.65)

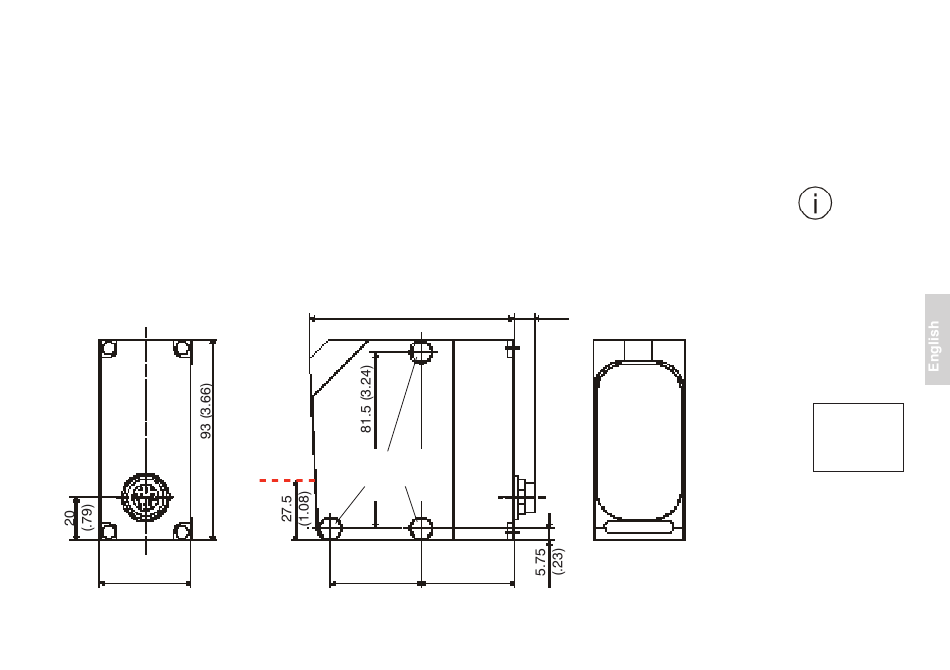

Fig. 5.1: Sensor drawings, not to scale
94.4 (3.72)
Mounting holes
ø 5.8 (.23 DIA)
42 (1.65) 43 (1.69)
12.3
(.48)
IMPORTANT!
Handle optical
sensors with care.
mm
(inches)
Page 55
