Operation ILR11xx
Continuation user commands
Befehl Name
„IN1" input norm Q1
„IN2" input norm Q2
„IVL" input visible laser
„ISB" input stand-by
„ESM" trigger single measurement /
Execute sing. m.
„EPW" write parameter page /
execute parameter write

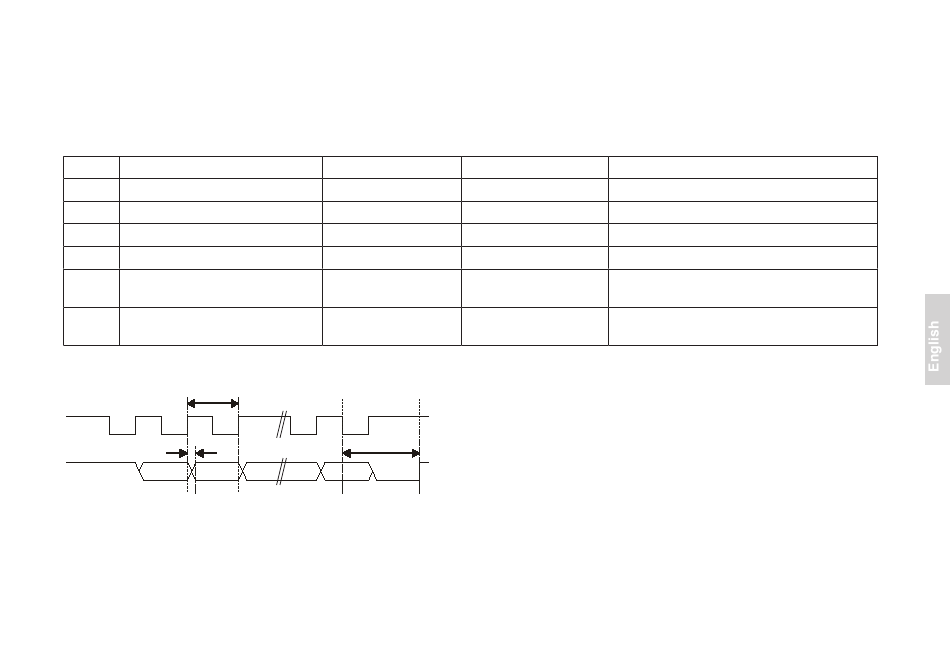

6.2.10 Timing SSi Compatible Interface
T
Clock
Tv
Data SSI
Gn Gn-1
Attention: With SSI compatible transmission data are
updated synchronous with the readout cycle. The data are
as up to date as the time interval between two readouts.
A periodical readout is therefore recommended. After a
longer readout break the data contents of the first readout
can be "out of date" and should be ignored.
Data to ILR11xx
„0" , „1"
„0" , „1"
„0" , „1"
„0" , „1"
-
-
Tm
Gn1 Gn0
Date to ILR11xx Specification
ACK „0" = Q, „1" = Q inverted
ACK „0" = Q, „1" = Q inverted
ACK „0" = Target laser on „1" = Target laser off
ACK „0" = Operation „1" =Stand-by
<meas. value> Request for measured value with single
measurement output
ACK
Parameters are stored
T = Duration of clock signal,
minimum 2 µSec = 500 kHz,
max. 13 µSec = 77kHz
Tv = Delay time max. 360 ns
Tm = Minimum time between last rising edge
and reloading of SSI approx. 24 µSec.
Gn = MSB (here Gray Code)
24 bit transmission:
G1 = second LSB, G0 = LSB
24+E transmission: G1 = LSB. G0 = Error bit
25 bit transmission: G1 second LSB, G0 = LSB
