Operation ILR102x
6.1.2
Open control menu
Press the Set key for 3 seconds. For
all settings given below, the sensor
has to be in the control menu. Du-
ring this time, the target laser used
for mounting the sensor is switched
on automatically. In this mode the
sensor works only with a reduced
switching frequency.
Leave control menu (-ESC-)
The menu can be left at any point.
Press the Set and Toggle keys
simultaneously for 1 second.
When leaving the control menu the
target laser is switched off automa-
tically.
Page 62
Switching Point, Analog Output, SLOW/FAST Mode
Q Setup
A

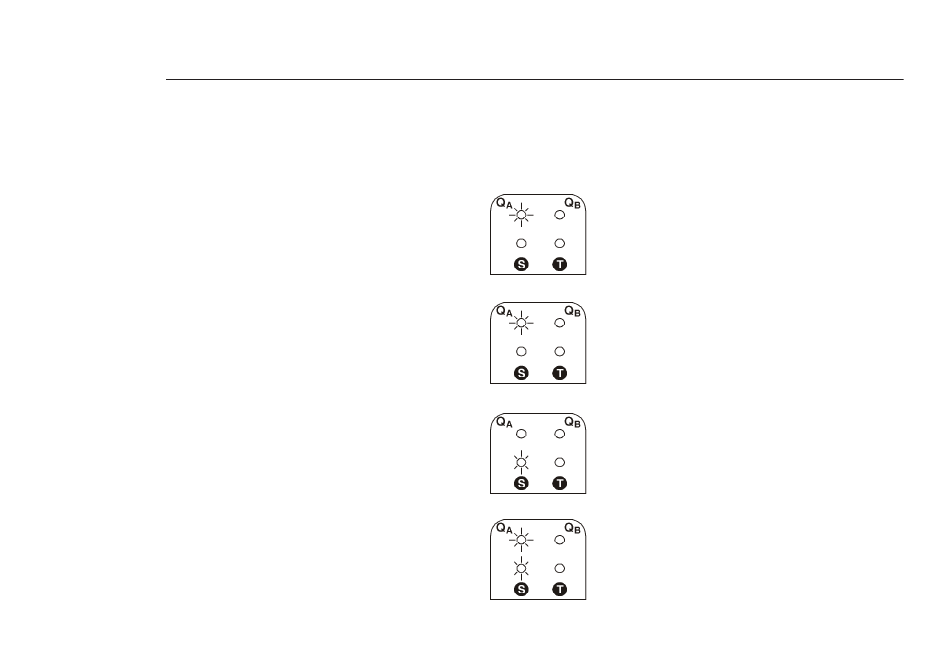

Setting switching point Q
Press the Toggle key until the menu LED
SA1 lights up. Position the reflector at the
desired switching point, then press the
Set key.
Setting switching window Q
Press the Toggle key until the menu LED
SA1 lights up. Position the reflector at the
desired first switching point, then press
the Set key.
Press the Toggle key until the menu SA2
lights up. Move the reflector to the desired
second switching point, then press the
Set key.
Invert switching output Q
Press the Toggle key until the menu LEDs
SA1 and SA2 light up. Press the Set key.
The output signal is inverted.
A
A
A
