Operation ILR102x

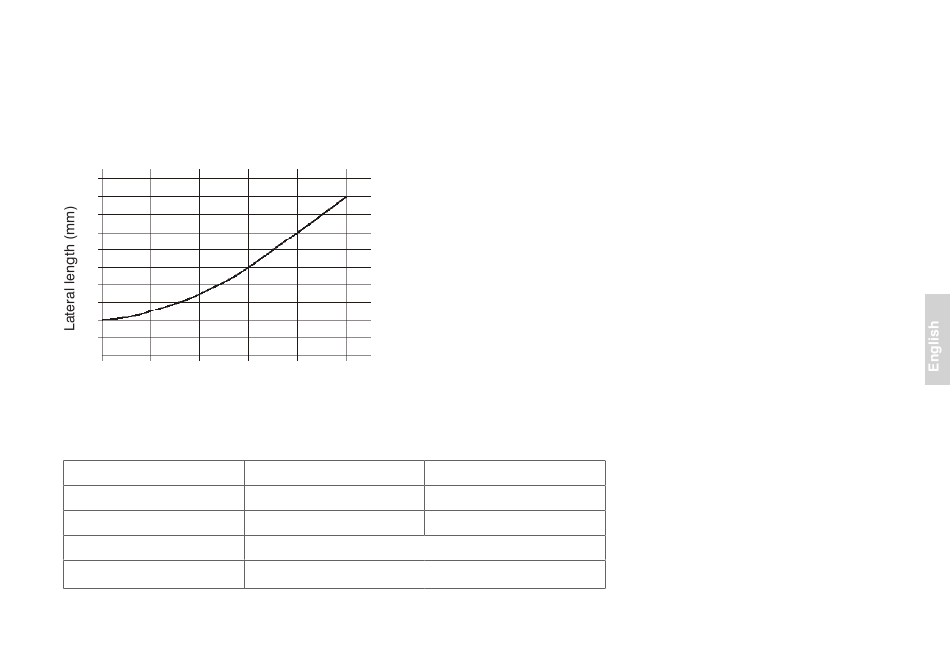

6.1.4 Target Dimensions ILR1020
10
9
8
7
6
5
4
3
2
1
0
1 2 3
6.1.5

Factory Setting

Analog output 0 %
Analog output 100 %
Switching output Q
A
Switching output Q
B
Smallest detectable part in relation to the distance.
This chart shows typical values measured on a square,
white object.
4 5 6 Distance (m)
ILR1020
4 mA (6.000 mm)
20 mA (200 mm)
600 mm N.O.
2.500 mm N.O.
ILR1021
4 mA (30.000 mm)
20 mA (200 mm)
Page 65
