Displaying the data storage (Continued)
EN
To display the patient data graph:
1. Tap the Graph icon.
• Primary patient temperature reading from attached probe (A)
• Intermediate target temperature (B)
• Water temperature (C)
• Power level (D)
2. To view data values, hide values, or data lines, tap an icon until the data you desire appears for the selected icon.
3. Tap next to see the current values for each variable.
4. To exit, tap the Graph icon or the Exit button.
Notes
• In monitor mode, only the patient temperature data is displayed (A).
• The graph icon is only available when a therapy is active.
• The patient data remains until the product sleeps or you powered off the product.
• If you lose power for more than 10 minutes, the data will not be retrievable.

Opening and securing items in the storage compartment

The storage compartment holds a maximum of 3 lb (1.36 kg).
To open the storage compartment door, lift up on the door
The storage compartment secures the following items:
• Two patient probes
• Two reusable adapter cables
• One reusable patient temperature output cable
• Product operations manual
1-34
Operation

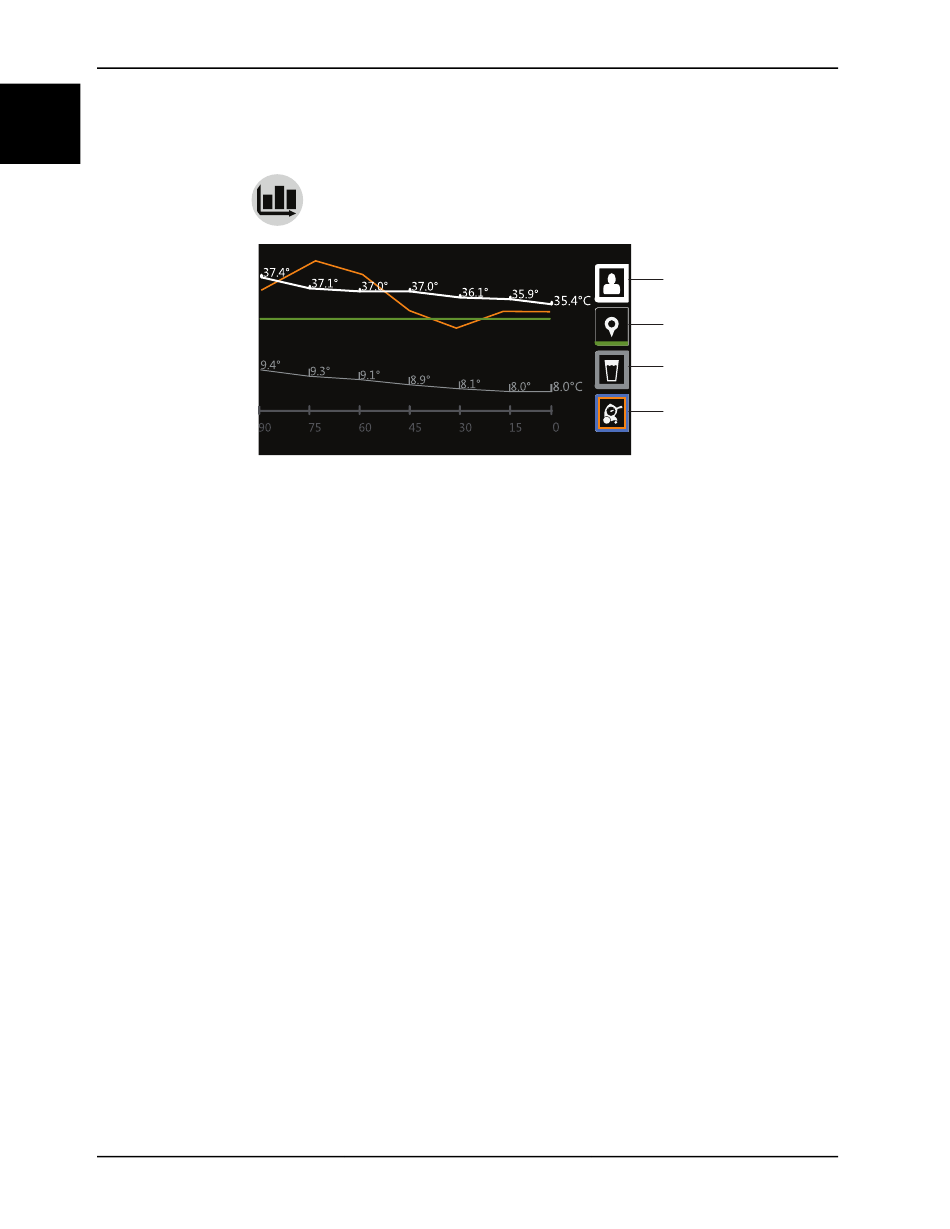

Figure 1-19: Graphical display
(Figure 1-19 on page
(Figure 1-20 on page
8001-109-005 REV B
A
B
C
D
1-34)
1-35).
