Connecting the reusable patient temperature output cable (Continued)
EN
To connect the reusable patient temperature output cable:
1. Insert the reusable patient temperature output cable into the patient temperature port
2. Connect the other end of the reusable patient temperature output cable to the external device.
Note: When Altrix is powered, the calibration of the patient temperature output is completed.
Note: If you need to calibrate the patient temperature output cable, power cycle the product by removing the plug
from the wall.
Note: For the reusable patient temperature output cable to work properly, make sure that you insert a patient
temperature probe into port A or port B.
3. Tap Confirm.

Connecting the insulated hoses

To connect the insulated hoses:
1. To connect, push back on the retaining collar of the port on the controller
2. Push the hose into an upper or lower port
clicks into place
Note: Connect a set of ports for proper water flow.
1-24

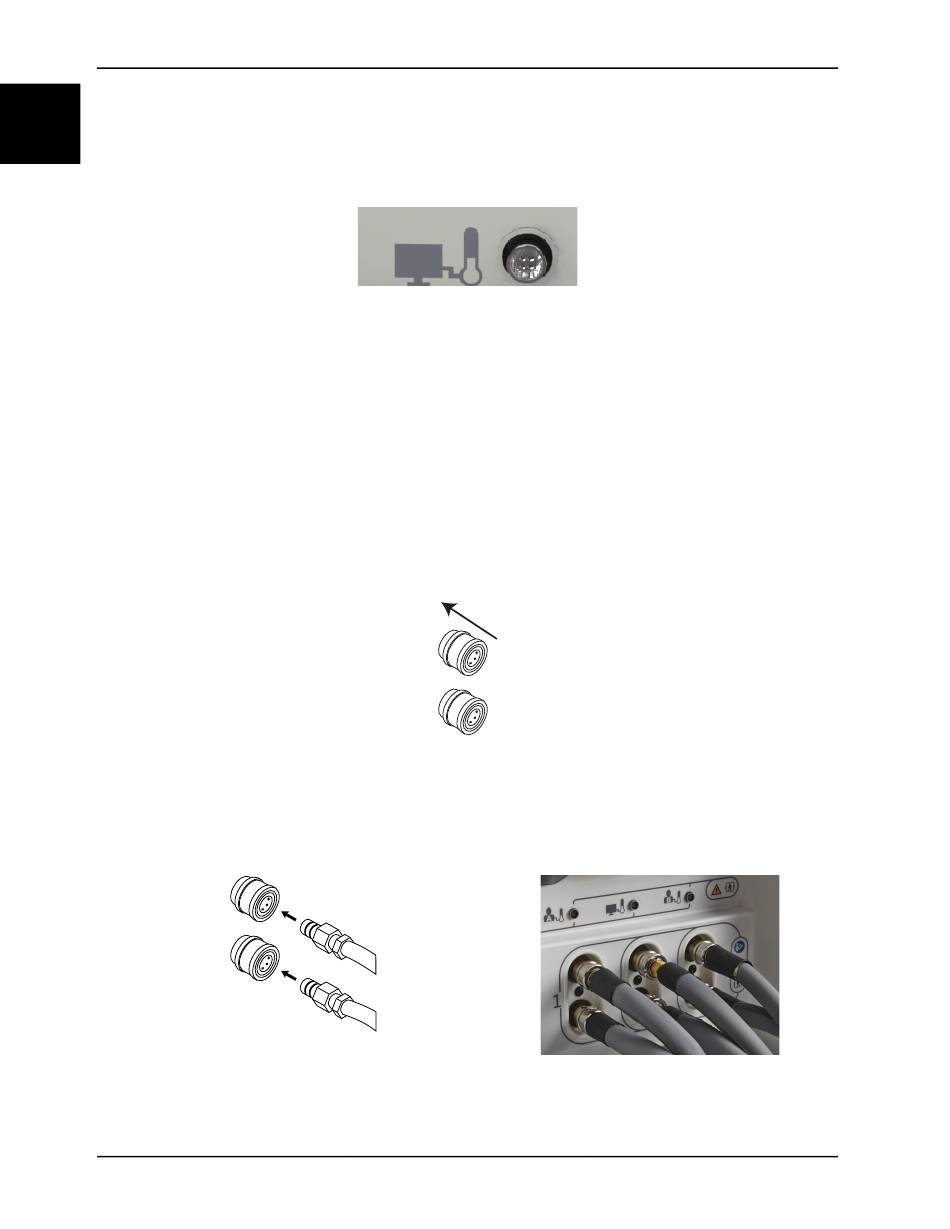

Figure 1-8: Patient temperature output port
Figure 1-9: Pull back on the retaining collar
(Figure 1-11 on page 1-24).
Figure 1-10: Connect the hoses
Operation
(Figure 1-10 on page 1-24) and release the collar until the retaining collar
Figure 1-11: Hoses connected
