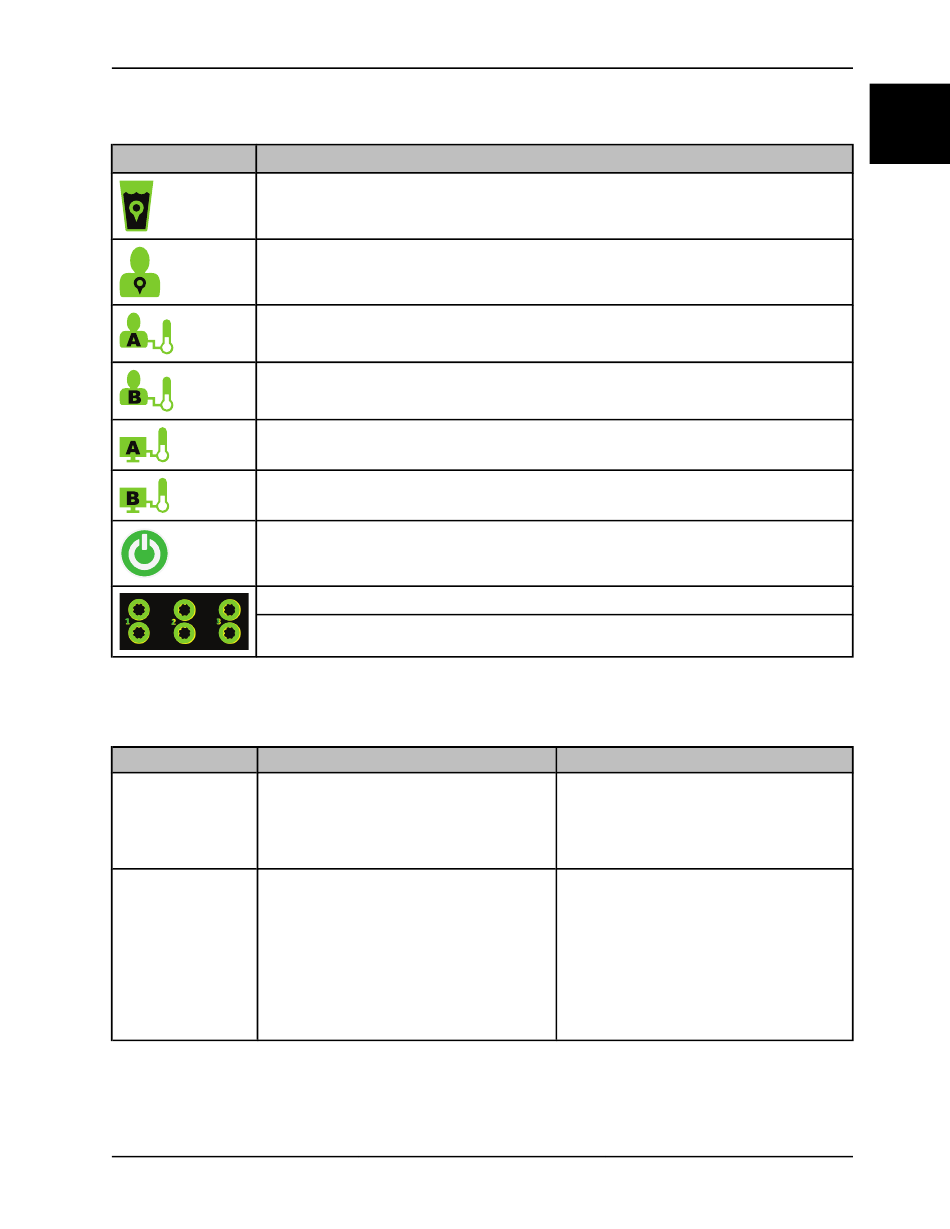

Product functions (Continued)
Icon, green Name
Water temperature on target, solid green when active, does not breathe
Patient temperature on target
Patient probe A port, stabilized
Patient probe B port, stabilized
External device, patient probe A
External device, patient probe B
Stand-by
Water flow detected, ports 1, 2, or 3 are solid green when active
If the water flow is less than 0.8 lpm, ports 1, 2, or 3 breathe

Flow indicators

Indication Manual mode
Low flow <0.8 lpm Indicated by a breathing green indicator for
10 minutes, maximum
Low flow that changes to No flow will remain
breathing green for 15 seconds, maximum
Good flow ≥ 0.8 lpm Solid green indicator when flow is maintained
for 30 seconds.
Good flow that is reduced to Low flow will
change the indicator to breathing green for 10
minutes, maximum
Good flow that is reduced to No flow will
change the indicator to breathing green for 15
seconds, maximum
