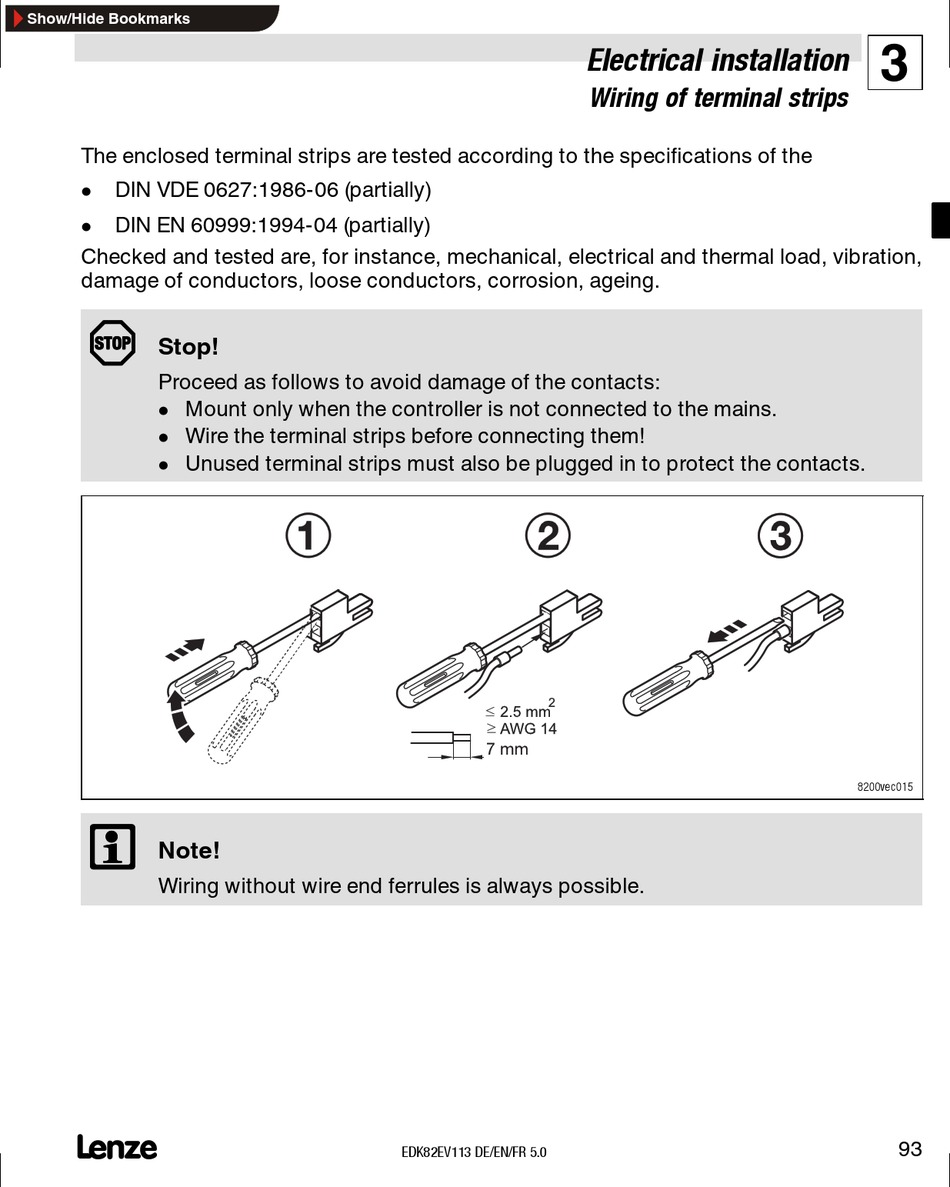

Lenze 8200 vector Montageanleitung Seite 93

Show/Hide Bookmarks
The enclosed terminal strips are tested according to the specifications of the
DIN VDE 0627:1986-06 (partially)
l
DIN EN 60999:1994-04 (partially)
l
Checked and tested are, for instance, mechanical, electrical and thermal load, vibration,
damage of conductors, loose conductors, corrosion, ageing.
( ( ( (
Stop!
Proceed as follows to avoid damage of the contacts:
Mount only when the controller is not connected to the mains.
l
Wire the terminal strips before connecting them!
l
Unused terminal strips must also be plugged in to protect the contacts.
l
) ) ) )
Note!
Wiring without wire end ferrules is always possible.
L
EDK82EV113 DE/EN/FR 5.0
Electrical installation
Wiring of terminal strips
3
8200vec015
