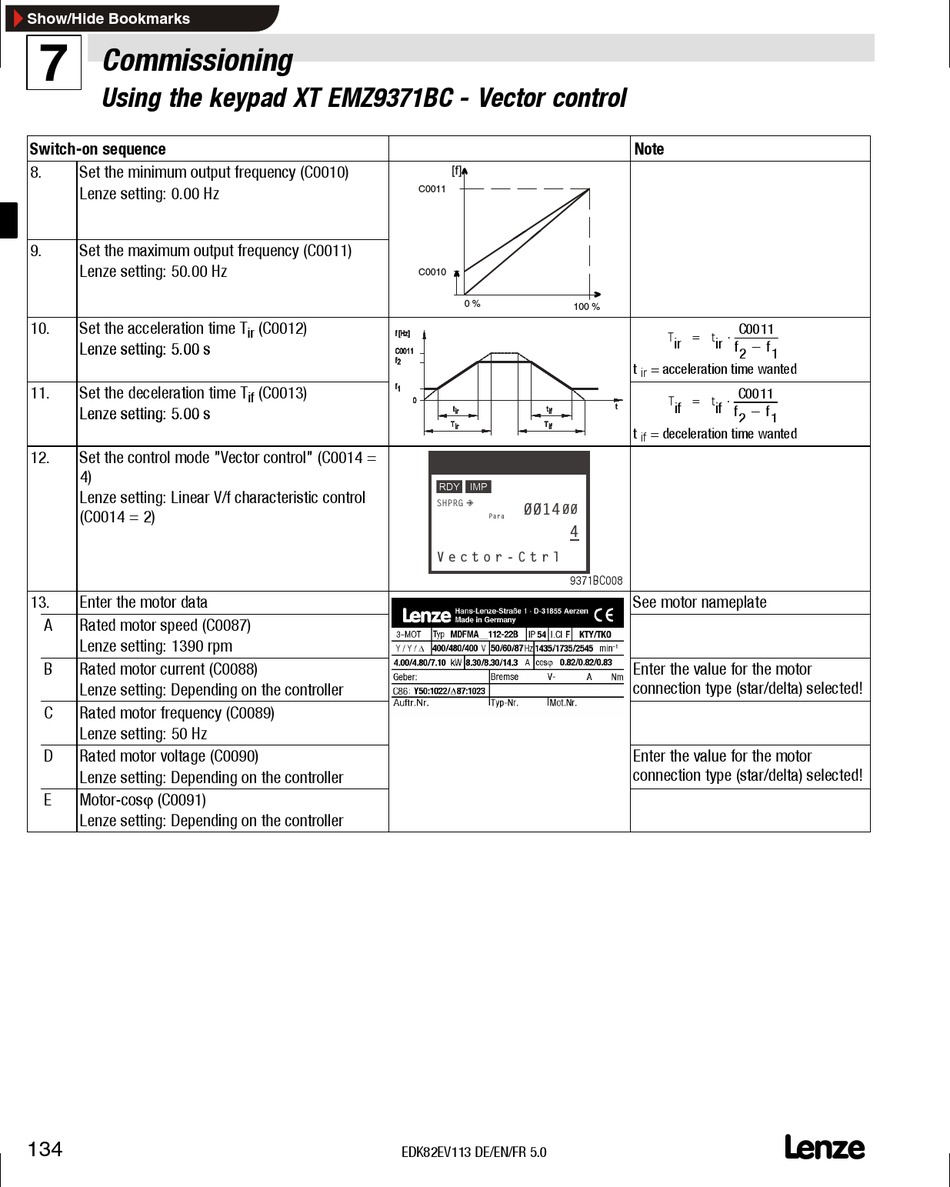

Commissioning
7
Using the keypad XT EMZ9371BC - Vector control
Switch-on sequence
8. Set the minimum output frequency (C0010)
Lenze setting: 0.00 Hz
9. Set the maximum output frequency (C0011)
Lenze setting: 50.00 Hz
10. Set the acceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
11. Set the deceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
12. Set the control mode "Vector control" (C0014 =
4)
Lenze setting: Linear V/f characteristic control
(C0014 = 2)
13. Enter the motor data
A Rated motor speed (C0087)
Lenze setting: 1390 rpm
B Rated motor current (C0088)
Lenze setting: Depending on the controller
C Rated motor frequency (C0089)
Lenze setting: 50 Hz
D Rated motor voltage (C0090)
Lenze setting: Depending on the controller
Motor-cos ϕ (C0091)
E
Lenze setting: Depending on the controller
134
C0011
C0010
(C0012)
ir
(C0013)
if
EDK82EV113 DE/EN/FR 5.0
[f]
0 %
100 %
SHPRG
Menu
0014
00
Code
Para
4
V e c t o r - C t r l
9371BC008
Note
C0011
T = t
⋅
ir ir
f 2 − f 1
t = acceleration time wanted
ir
C0011
T = t
⋅
if if
f 2 − f 1
t = deceleration time wanted
if
See motor nameplate
Enter the value for the motor
connection type (star/delta) selected!
Enter the value for the motor
connection type (star/delta) selected!
