Function
X1.2/K11 Relay output normally-closed
contact
X1.2/K12 Mid position contact
X1.2/K14 Relay output - normally-open
contact
PES HF-shield end by PE connection through shield clamp.
) ) ) )
Note!
For switching the control signals use shielded cables and establish an HF
l
shield termination by PE connection.
For mains potential switching unshielded cables are sufficient.
l
The service life of the relay depends on the type of load (ohmic, inductive or
l
capacitive) and the value of the switching capacity.
The output message can be changed under codes C0008 or C0415/1.
l
( ( ( (
Stop!
If you control a holding brake at the motor with the relay output (description
see System Manual) a spark suppressor must be used in case of DC
switching:
Universal spark suppressor for 24 V DC brake,
l
6-pole Lenze brake rectifier for 180 V/205 V DC brake.
l
L
Message
Relay position set
(Lenze setting)
open
closed
EDK82EV113 DE/EN/FR 5.0

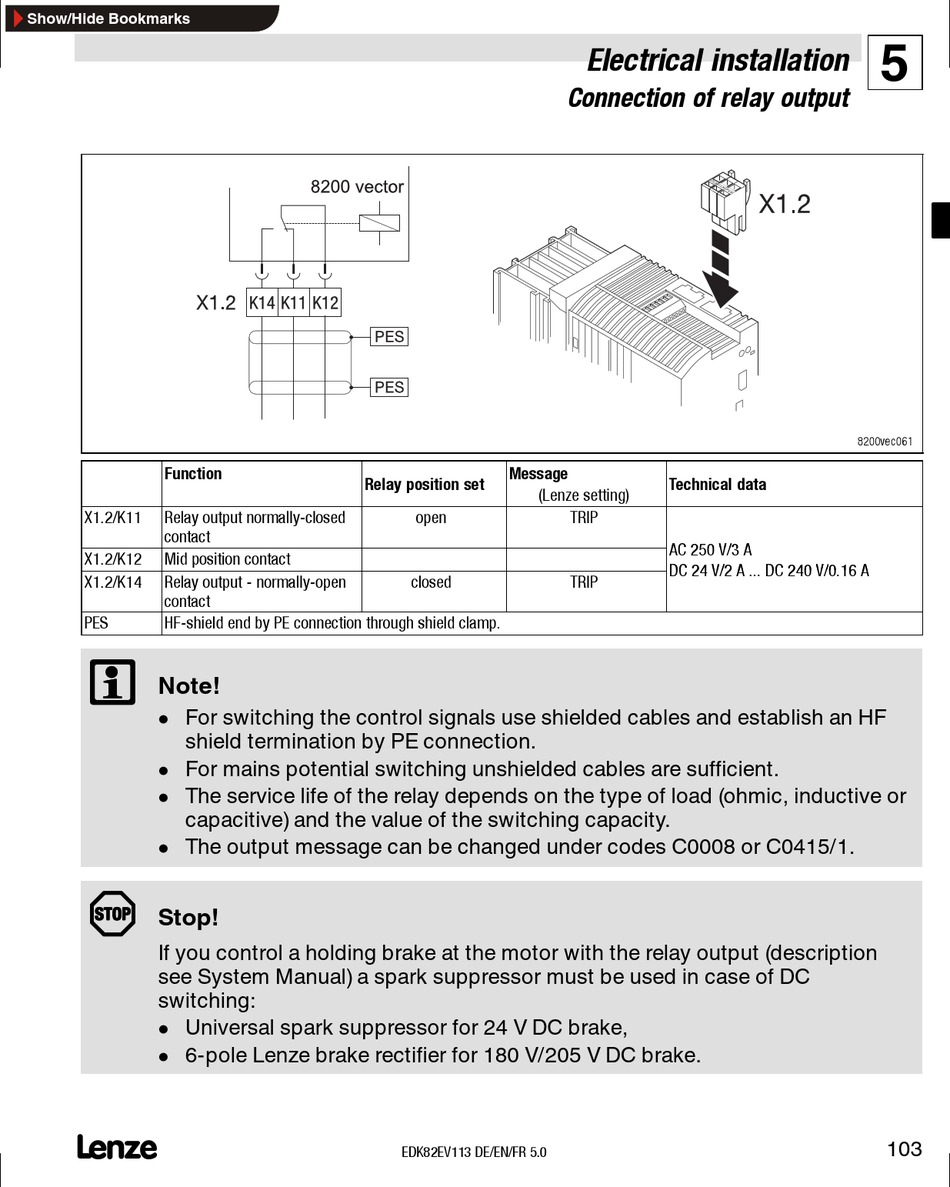

Electrical installation
Connection of relay output
Technical data
TRIP
AC 250 V/3 A AC 250 V/3 A
DC 24 V/2 A ... DC 240 V/0.16 A DC 24 V/2 A
TRIP
5
-26-8200vec061
DC 240 V/0 16 A
