Function module (optional)
6
Mounting

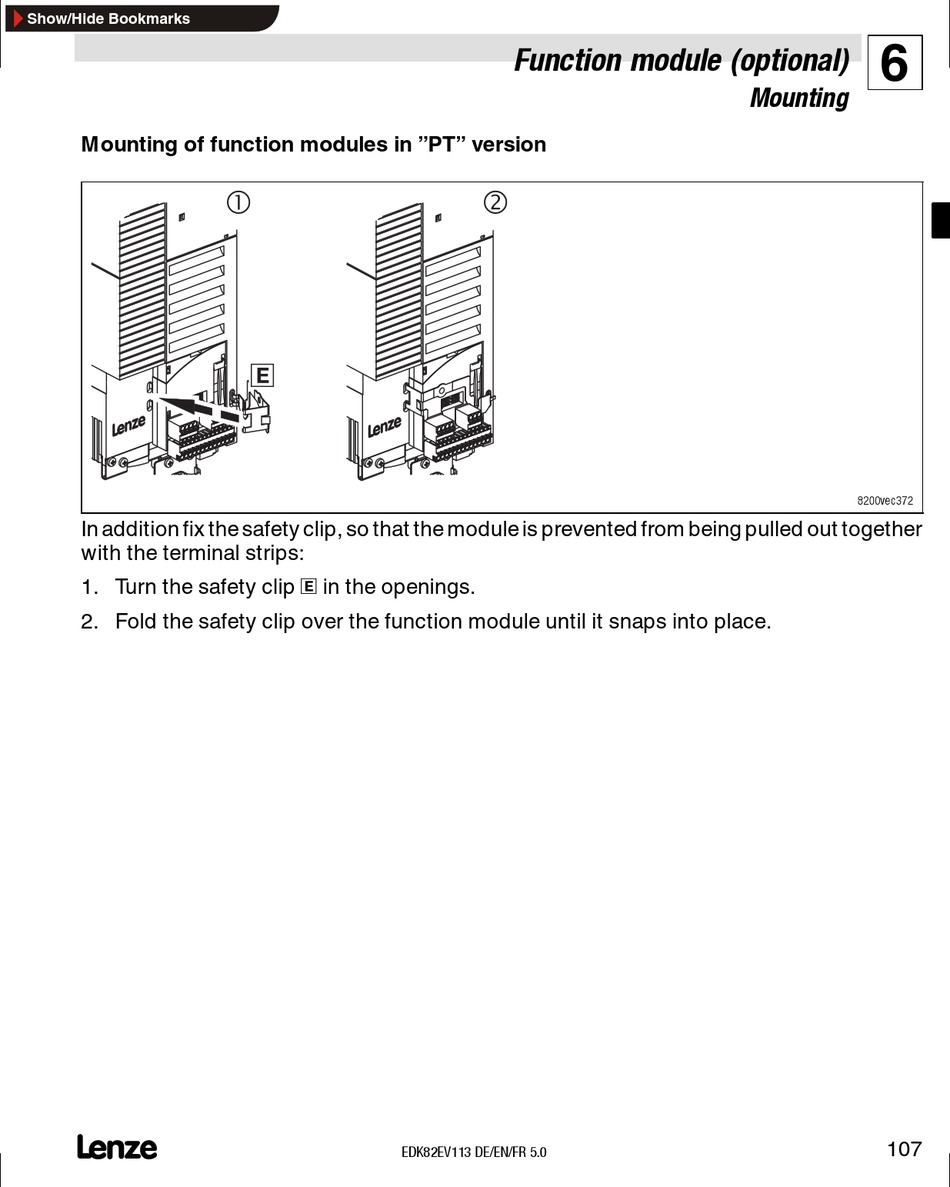

Mounting of function modules in "PT" version
 ‚
-29-8200vec372
In addition fix the safety clip, so that the module is prevented from being pulled out together
with the terminal strips:
1. Turn the safety clip 4 in the openings.
2. Fold the safety clip over the function module until it snaps into place.
