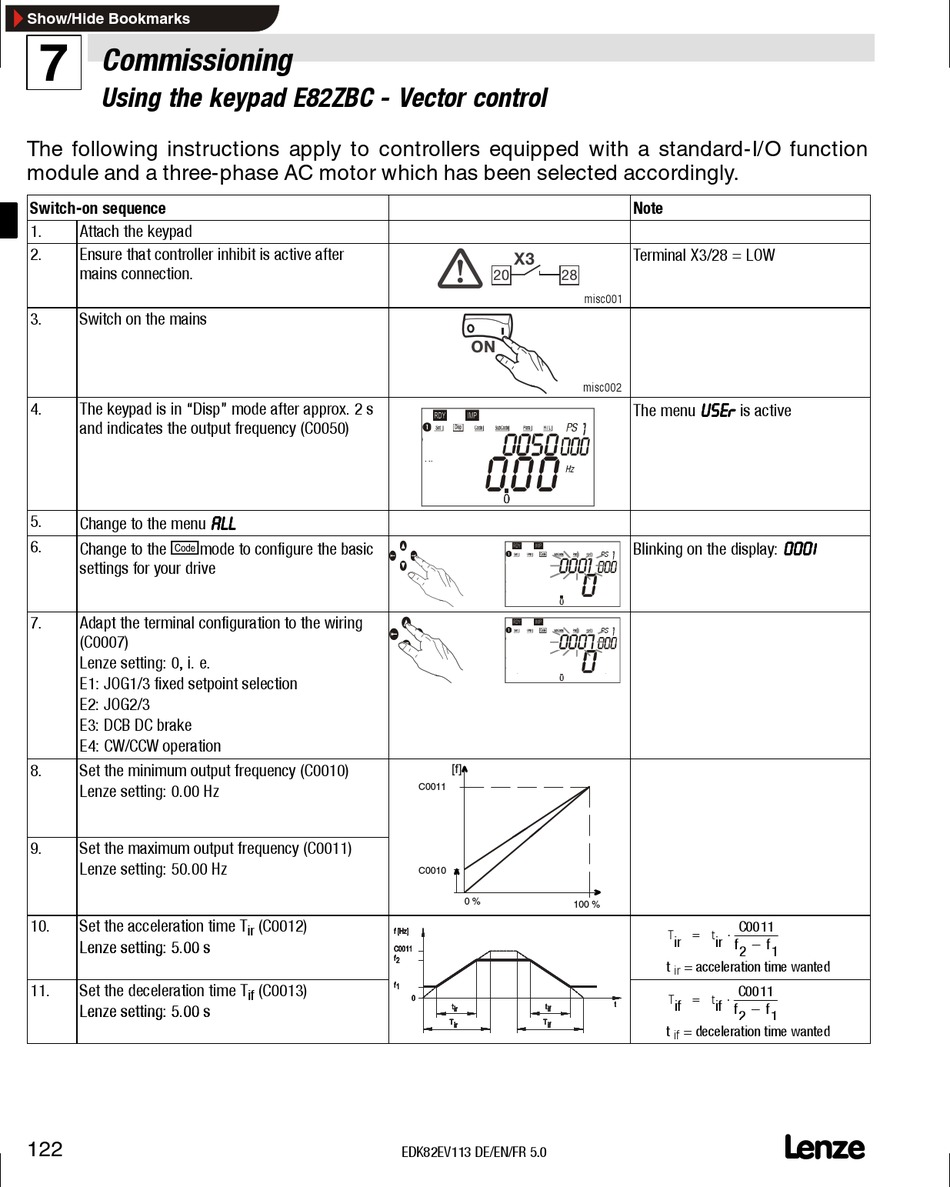

Commissioning
7
Using the keypad E82ZBC - Vector control
The following instructions apply to controllers equipped with a standard-I/O function
module and a three-phase AC motor which has been selected accordingly.
Switch-on sequence
1. Attach the keypad
2. Ensure that controller inhibit is active after
mains connection.
3. Switch on the mains
4. The keypad is in "Disp" mode after approx. 2 s
and indicates the output frequency (C0050)
5.
Change to the menu
f
6.
Change to the mode to configure the basic
settings for your drive
7. Adapt the terminal configuration to the wiring
(C0007)
Lenze setting: 0, i. e.
E1: JOG1/3 fixed setpoint selection
E2: JOG2/3
E3: DCB DC brake
E4: CW/CCW operation
8. Set the minimum output frequency (C0010)
Lenze setting: 0.00 Hz
9. Set the maximum output frequency (C0011)
Lenze setting: 50.00 Hz
10. Set the acceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
11. Set the deceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
