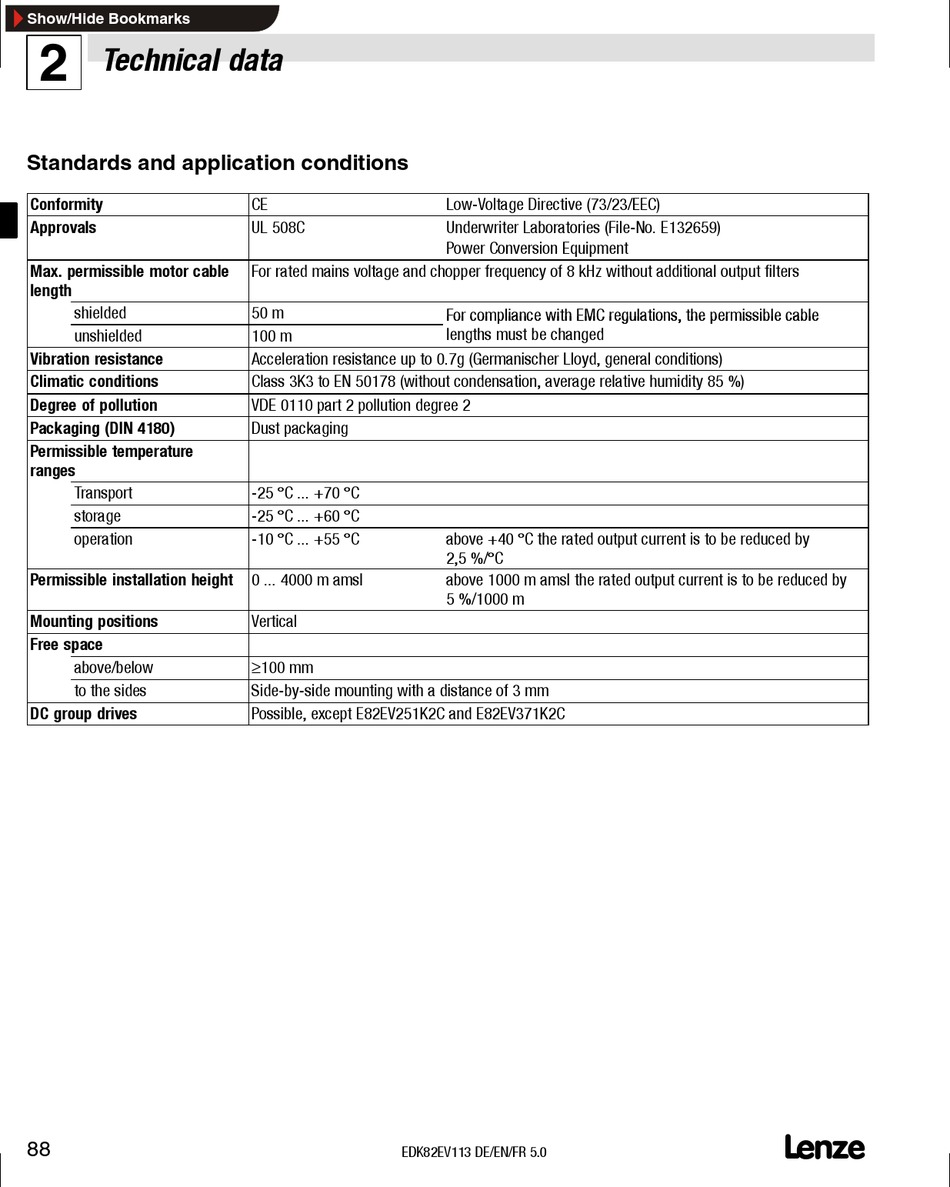

Technical data
2
Standards and application conditions
Conformity
Approvals
Max. permissible motor cable
length
shielded
unshielded
Vibration resistance
Climatic conditions
Degree of pollution
Packaging (DIN 4180)
Permissible temperature
ranges
Transport
storage
operation
Permissible installation height
Mounting positions
Free space
above/below
to the sides
DC group drives
88
CE
UL 508C
For rated mains voltage and chopper frequency of 8 kHz without additional output filters
50 m
100 m
Acceleration resistance up to 0.7g (Germanischer Lloyd, general conditions)
Class 3K3 to EN 50178 (without condensation, average relative humidity 85 %)
VDE 0110 part 2 pollution degree 2
Dust packaging
-25 °C ... +70 °C
-25 °C ... +60 °C
-10 °C ... +55 °C
0 ... 4000 m amsl
Vertical
≥ 100 mm
Side-by-side mounting with a distance of 3 mm
Possible, except E82EV251K2C and E82EV371K2C
EDK82EV113 DE/EN/FR 5.0
Low-Voltage Directive (73/23/EEC)
Underwriter Laboratories (File-No. E132659)
Power Conversion Equipment
For compliance with EMC regulations, the permissible cable For compliance with EMC regulations, the permissible cable
lengths must be changed
above +40 °C the rated output current is to be reduced by
2,5 %/°C
above 1000 m amsl the rated output current is to be reduced by
5 %/1000 m
