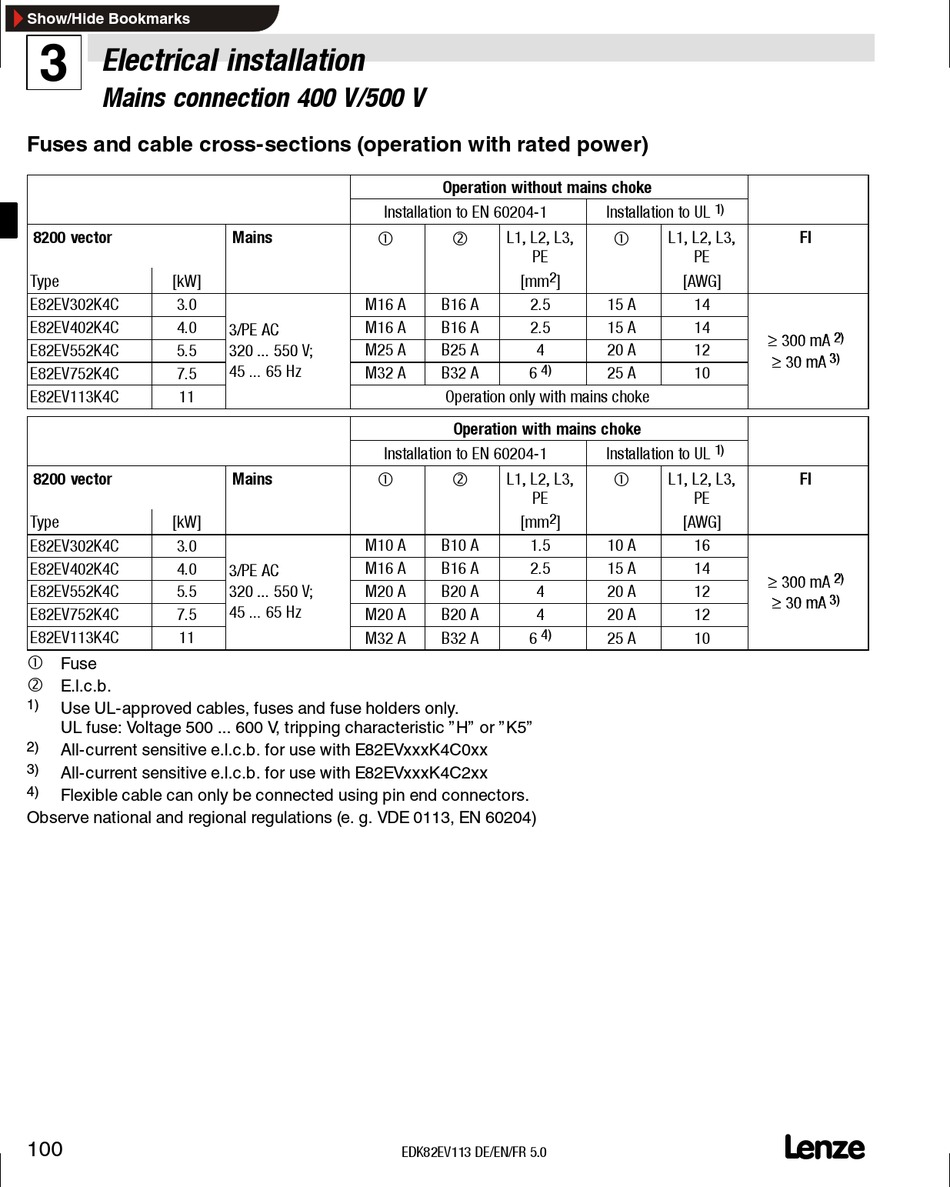

Electrical installation
3
Mains connection 400 V/500 V
Fuses and cable cross-sections (operation with rated power)
8200 vector
Type [kW]
E82EV302K4C 3.0
E82EV402K4C 4.0
E82EV552K4C 5.5
E82EV752K4C 7.5
E82EV113K4C 11
8200 vector
Type [kW]
E82EV302K4C 3.0
E82EV402K4C 4.0
E82EV552K4C 5.5
E82EV752K4C 7.5
E82EV113K4C 11

Fuse
‚
E.l.c.b.
1)
Use UL-approved cables, fuses and fuse holders only.
UL fuse: Voltage 500 ... 600 V, tripping characteristic "H" or "K5"
2)
All-current sensitive e.l.c.b. for use with E82EVxxxK4C0xx
3)
All-current sensitive e.l.c.b. for use with E82EVxxxK4C2xx
4)
Flexible cable can only be connected using pin end connectors.
Observe national and regional regulations (e. g. VDE 0113, EN 60204)
100
Installation to EN 60204-1
Mains 
M16 A
M16 A
3/PE AC 3/PE AC
320 ... 550 V; 320 ... 550 V; M25 A
45 ... 65 Hz 45 ... 65 Hz
M32 A
Installation to EN 60204-1
Mains 
M10 A
M16 A
3/PE AC 3/PE AC
M20 A
320 ... 550 V; 320 ... 550 V;
45 ... 65 Hz 45 ... 65 Hz
M20 A
M32 A
EDK82EV113 DE/EN/FR 5.0
Operation without mains choke
Installation to UL
‚ 
L1, L2, L3,
PE
2
[mm ]
B16 A 2.5 15 A
B16 A 2.5 15 A
B25 A 4 20 A
4)
B32 A 6 25 A
Operation only with mains choke
Operation with mains choke
Installation to UL
‚ 
L1, L2, L3,
PE
2
[mm ]
B10 A 1.5 10 A
B16 A 2.5 15 A
B20 A 4 20 A
B20 A 4 20 A
4)
B32 A 6 25 A
1)
FI
L1, L2, L3,
PE
[AWG]
14
14
2) 2)
≥ 300 mA ≥ 300 mA
12
3) 3)
≥ 30 mA ≥ 30 mA
10
1)
FI
L1, L2, L3,
PE
[AWG]
16
14
≥ 300 mA ≥ 300 mA 2) 2)
12
≥ 30 mA ≥ 30 mA 3) 3)
12
10
