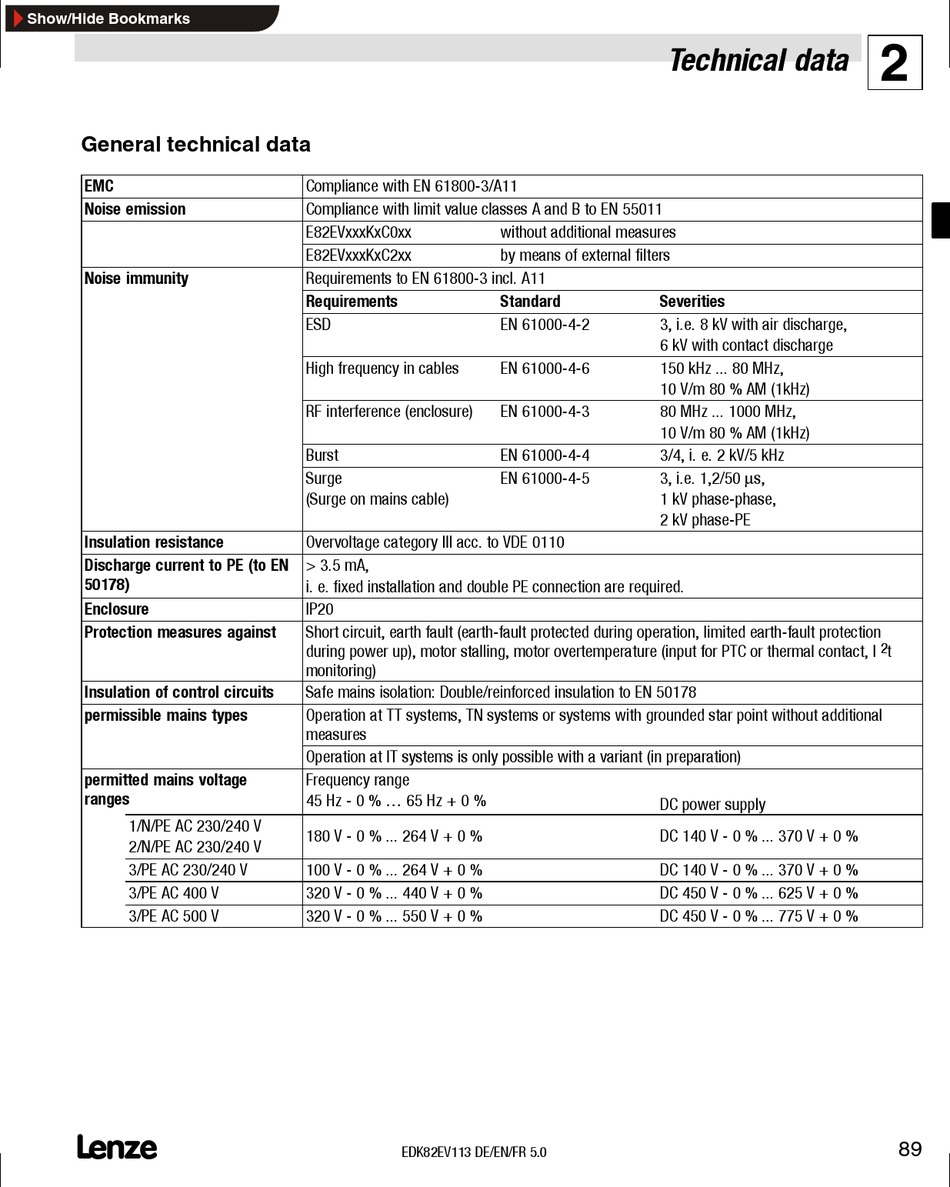

General technical data
EMC
Noise emission
Noise immunity Noise immunity
Insulation resistance
Discharge current to PE (to EN
50178)
Enclosure
Protection measures against
Insulation of control circuits
permissible mains types
permitted mains voltage
ranges
1/N/PE AC 230/240 V
2/N/PE AC 230/240 V
3/PE AC 230/240 V
3/PE AC 400 V
3/PE AC 500 V
L
Compliance with EN 61800-3/A11
Compliance with limit value classes A and B to EN 55011
E82EVxxxKxC0xx
E82EVxxxKxC2xx
Requirements to EN 61800-3 incl. A11
Requirements
ESD
High frequency in cables
RF interference (enclosure)
Burst
Surge
(Surge on mains cable)
Overvoltage category III acc. to VDE 0110
> 3.5 mA,
i. e. fixed installation and double PE connection are required.
IP20
Short circuit, earth fault (earth-fault protected during operation, limited earth-fault protection
during power up), motor stalling, motor overtemperature (input for PTC or thermal contact, I
monitoring)
Safe mains isolation: Double/reinforced insulation to EN 50178
Operation at TT systems, TN systems or systems with grounded star point without additional
measures
Operation at IT systems is only possible with a variant (in preparation)
Frequency range
45 Hz - 0 % ¼ 65 Hz + 0 %
180 V - 0 % ... 264 V + 0 %
100 V - 0 % ... 264 V + 0 %
320 V - 0 % ... 440 V + 0 %
320 V - 0 % ... 550 V + 0 %
EDK82EV113 DE/EN/FR 5.0
Technical data
without additional measures
by means of external filters
Standard Severities
EN 61000-4-2 3, i.e. 8 kV with air discharge,
6 kV with contact discharge
EN 61000-4-6 150 kHz ... 80 MHz,
10 V/m 80 % AM (1kHz)
EN 61000-4-3 80 MHz ... 1000 MHz,
10 V/m 80 % AM (1kHz)
EN 61000-4-4 3/4, i. e. 2 kV/5 kHz
3, i.e. 1,2/50 µ s,
EN 61000-4-5
1 kV phase-phase,
2 kV phase-PE
DC power supply
DC 140 V - 0 % ... 370 V + 0 %
DC 140 V - 0 % ... 370 V + 0 %
DC 450 V - 0 % ... 625 V + 0 %
DC 450 V - 0 % ... 775 V + 0 %
2
2
t
89
