Stop!
Controller type E82EVxxxK 4C must only be connected to a mains voltage of
l
3/PE AC 320 ... 550 V. Higher mains voltages will destroy the controller!
The discharge current to PE is > 3.5 mA. EN 50178 requires a fixed
l
installation. Double PE connection required.
45 Hz -0 %...65 Hz +0 % 320 V -0 %...550 V +0 %
L1
L2
L3
N
PE
X1.1 PE L1
X1.1/+UG, X1.1/-UG
L
3 PE AC 400 V
L2 L3
+UG -UG
E82EVXXXK4C
DC supply (DC-bus operation - see Operating Instructions)
EDK82EV113 DE/EN/FR 5.0

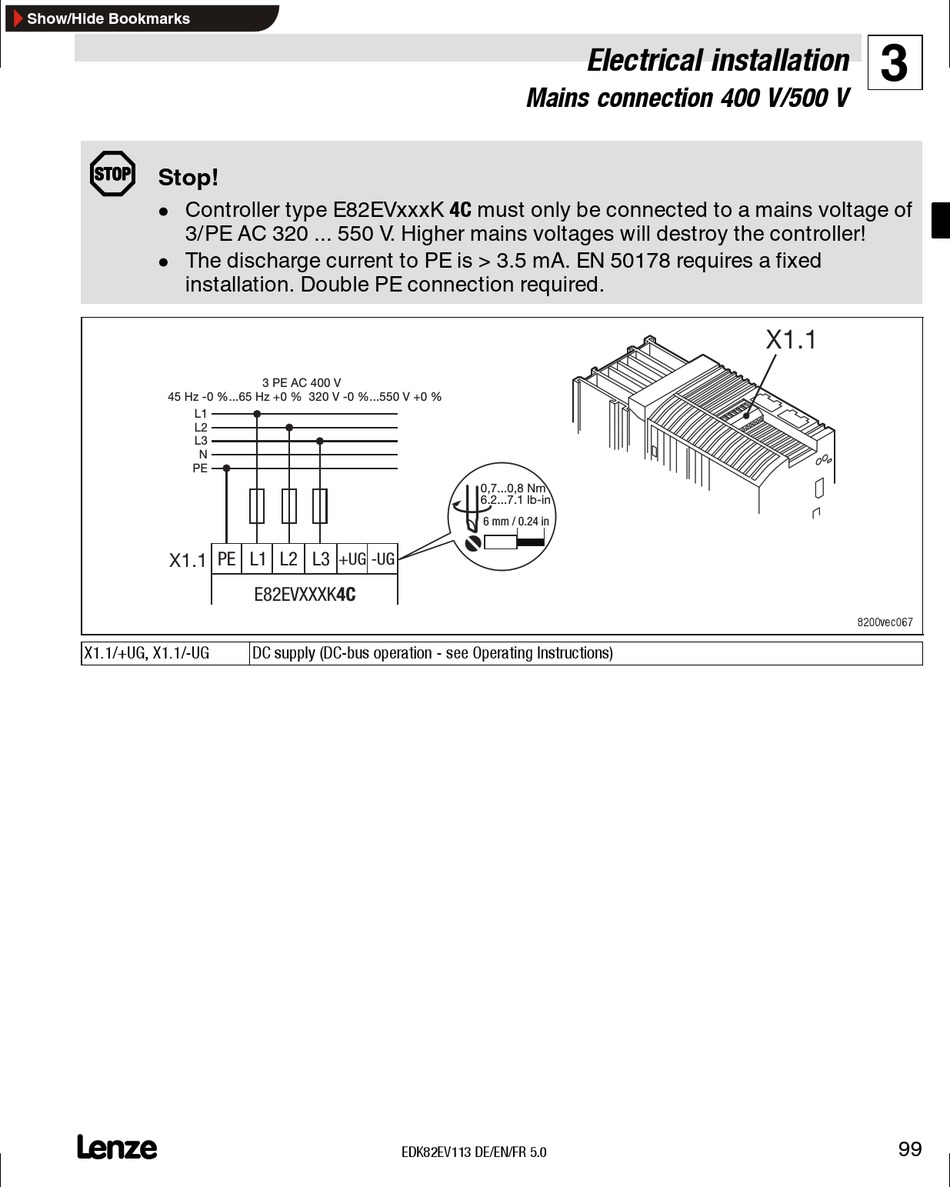

Electrical installation
Mains connection 400 V/500 V
0,7...0,8 Nm
6.2...7.1 lb-in
6 mm / 0.24 in
3
X1.1
-24- 8200vec067
