Switch-on sequence
12. Set the V/f-rated frequency (C0015)
Lenze setting: 50.00 Hz
13. Set the V
min
Lenze settings: Depending on the controller type
14. If you want to change the settings, please go to
the menu A A A A L L L L L L L L
When you are ready with parameter setting:
15. Setpoint selection
16. Enable the controller.
17. The drive should be running now at e.g. 30 Hz
L

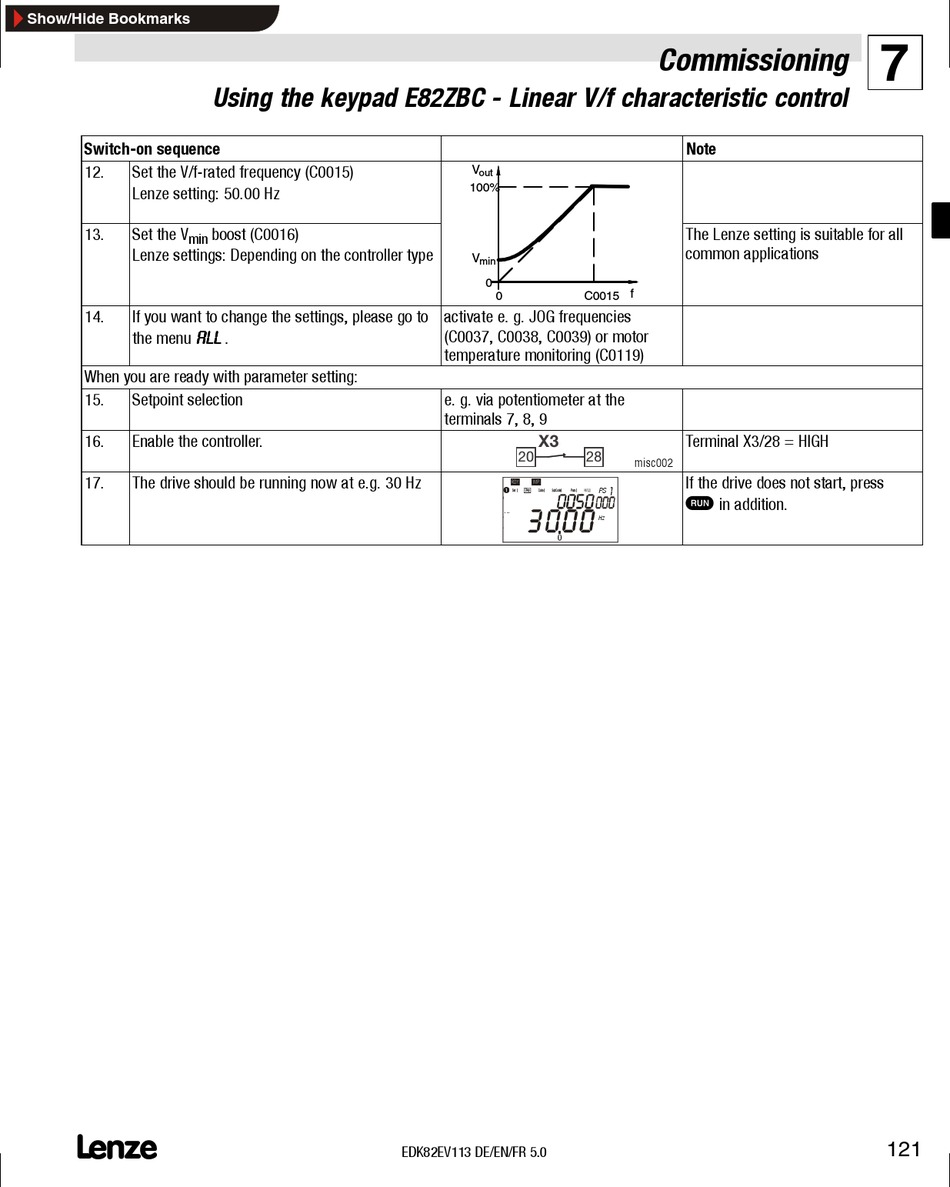

Using the keypad E82ZBC - Linear V/f characteristic control
boost (C0016)
.
V
out
100%
V
min
0
0
activate e. g. JOG frequencies
(C0037, C0038, C0039) or motor
temperature monitoring (C0119)
e. g. via potentiometer at the
terminals 7, 8, 9
X3
20
d c b e
Πj g f k i h
‚ m n o
p
q r
Hi
Lo
EDK82EV113 DE/EN/FR 5.0
Commissioning
Note
The Lenze setting is suitable for all
common applications
f
C0015
Terminal X3/28 = HIGH
28
misc002
If the drive does not start, press
a
PS
u
in addition.
Hz
7
