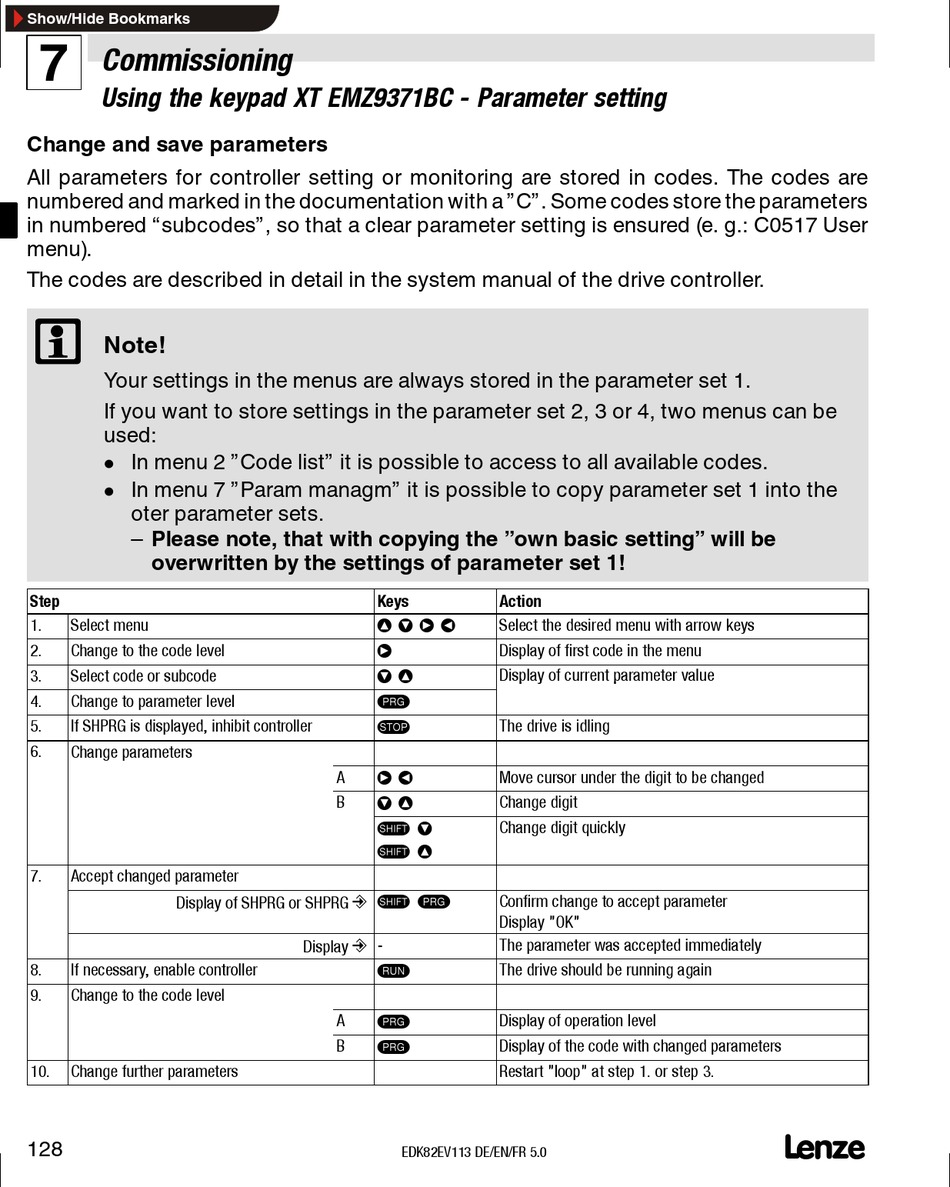

Commissioning
7
Using the keypad XT EMZ9371BC - Parameter setting
Change and save parameters
All parameters for controller setting or monitoring are stored in codes. The codes are
numbered and marked in the documentation with a "C". Some codes store the parameters
in numbered "subcodes", so that a clear parameter setting is ensured (e. g.: C0517 User
menu).
The codes are described in detail in the system manual of the drive controller.
) ) ) )
Note!
Your settings in the menus are always stored in the parameter set 1.
If you want to store settings in the parameter set 2, 3 or 4, two menus can be
used:
In menu 2 "Code list" it is possible to access to all available codes.
l
In menu 7 "Param managm" it is possible to copy parameter set 1 into the
l
oter parameter sets.
– Please note, that with copying the "own basic setting" will be
overwritten by the settings of parameter set 1!
Step
1. Select menu
2. Change to the code level
3. Select code or subcode
4. Change to parameter level
5. If SHPRG is displayed, inhibit controller
6 6. Change parameters
7. Accept changed parameter
Display of SHPRG or SHPRG
8. If necessary, enable controller
9. 9
Change to the code level
10. Change further parameters
128
Keys
z y Z Y
Z
y z
V
S
A Z Y
B y z
T y
T z
p T V
p
-
Display
U
V
A
V
B
EDK82EV113 DE/EN/FR 5.0
Action
Select the desired menu with arrow keys
Display of first code in the menu
Display of current parameter value sp ay o cu e t pa a ete a ue
The drive is idling
Move cursor under the digit to be changed
Change digit
Change digit quickly
Confirm change to accept parameter
Display "OK"
The parameter was accepted immediately
The drive should be running again
Display of operation level
Display of the code with changed parameters
Restart "loop" at step 1. or step 3.
