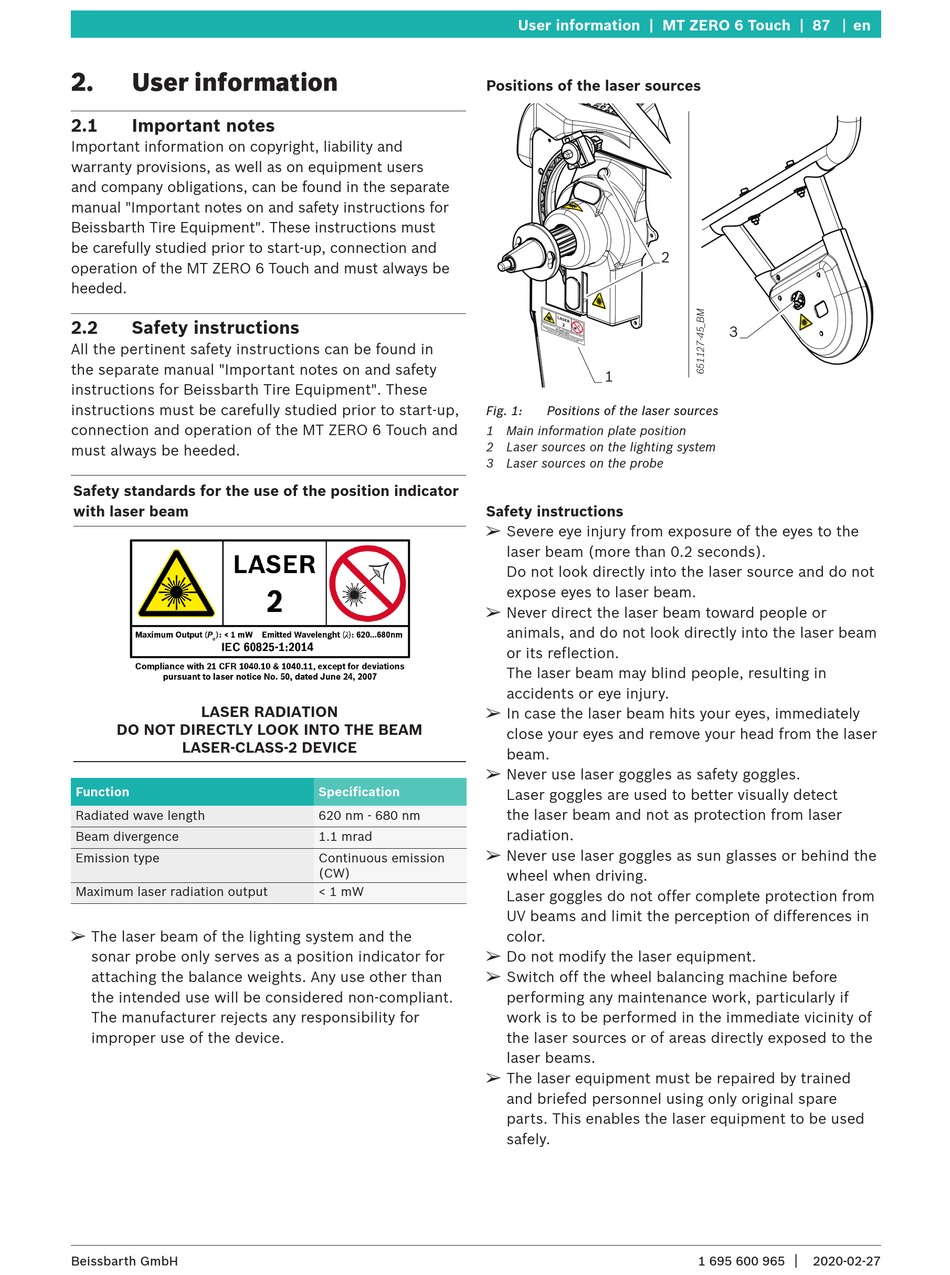

2. User information
2.1 Important notes
Important information on copyright, liability and
warranty provisions, as well as on equipment users
and company obligations, can be found in the separate
manual "Important notes on and safety instructions for
Beissbarth Tire Equipment". These instructions must
be carefully studied prior to start-up, connection and
operation of the MT ZERO 6 Touch and must always be
heeded.
2.2 Safety instructions
All the pertinent safety instructions can be found in
the separate manual "Important notes on and safety
instructions for Beissbarth Tire Equipment". These
instructions must be carefully studied prior to start-up,
connection and operation of the MT ZERO 6 Touch and
must always be heeded.
Safety standards for the use of the position indicator
with laser beam
LASER RADIATION
DO NOT DIRECTLY LOOK INTO THE BEAM
LASER-CLASS-2 DEVICE
Function
Radiated wave length
Beam divergence
Emission type
Maximum laser radiation output
¶
The laser beam of the lighting system and the
sonar probe only serves as a position indicator for
attaching the balance weights. Any use other than
the intended use will be considered non-compliant.
The manufacturer rejects any responsibility for
improper use of the device.
Beissbarth GmbH
Positions of the laser sources
Fig. 1:
1 Main information plate position
2 Laser sources on the lighting system
3 Laser sources on the probe
Safety instructions
¶
¶
¶
¶
Specification
620 nm - 680 nm
1.1 mrad
¶
Continuous emission
(CW)
< 1 mW
¶
¶
¶
User information | MT ZERO 6 Touch | 87
2
1
Positions of the laser sources
Severe eye injury from exposure of the eyes to the
laser beam (more than 0.2 seconds).
Do not look directly into the laser source and do not
expose eyes to laser beam.
Never direct the laser beam toward people or
animals, and do not look directly into the laser beam
or its reflection.
The laser beam may blind people, resulting in
accidents or eye injury.
In case the laser beam hits your eyes, immediately
close your eyes and remove your head from the laser
beam.
Never use laser goggles as safety goggles.
Laser goggles are used to better visually detect
the laser beam and not as protection from laser
radiation.
Never use laser goggles as sun glasses or behind the
wheel when driving.
Laser goggles do not offer complete protection from
UV beams and limit the perception of differences in
color.
Do not modify the laser equipment.
Switch off the wheel balancing machine before
performing any maintenance work, particularly if
work is to be performed in the immediate vicinity of
the laser sources or of areas directly exposed to the
laser beams.
The laser equipment must be repaired by trained
and briefed personnel using only original spare
parts. This enables the laser equipment to be used
safely.
en
3
|
1 695 600 965 2020-02-27
