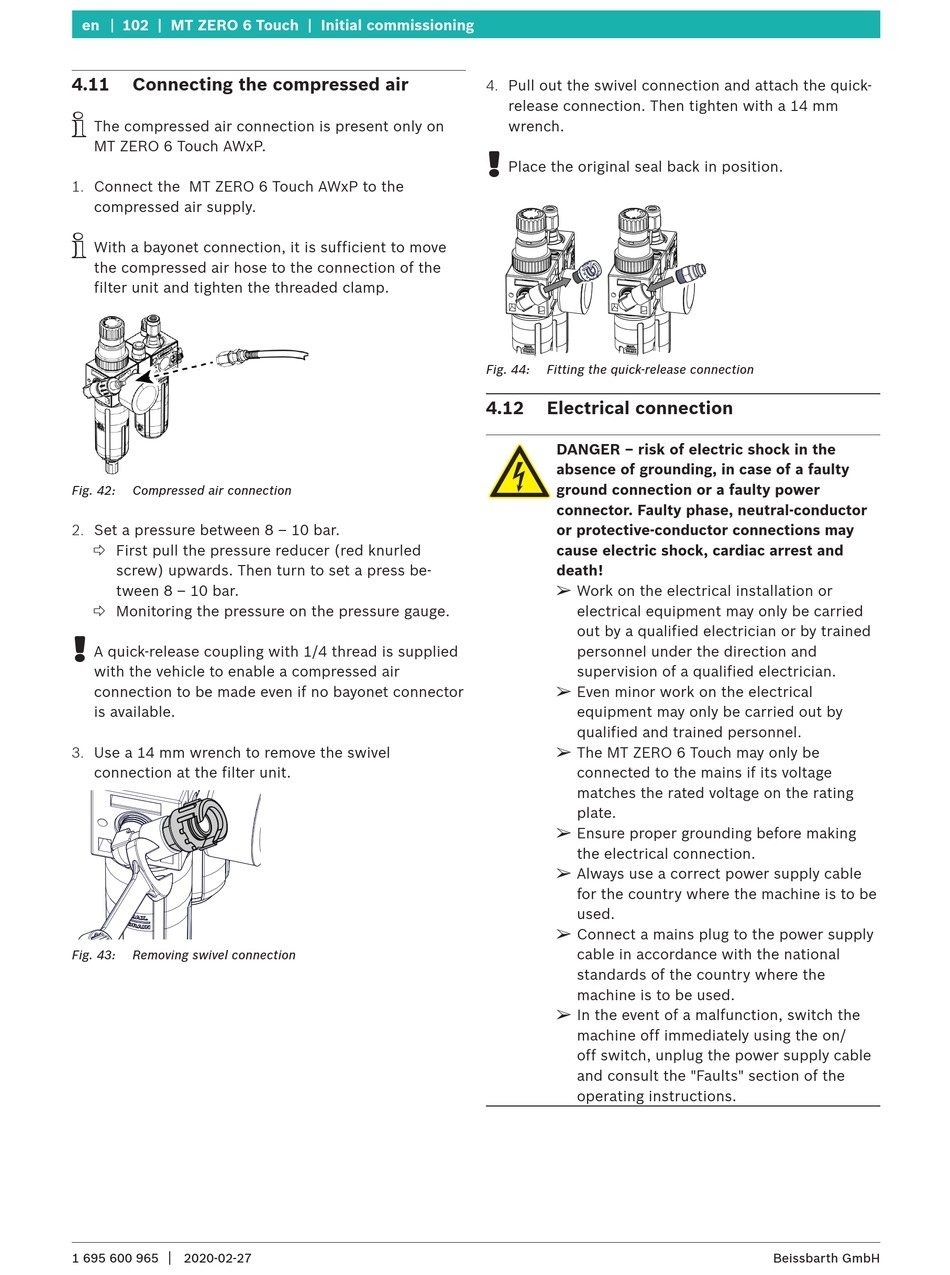

102 | MT ZERO 6 Touch | Initial commissioning
4.11
Connecting the compressed air
i
The compressed air connection is present only on
MT ZERO 6 Touch AWxP.
1. Connect the MT ZERO 6 Touch AWxP to the
compressed air supply.
i
With a bayonet connection, it is sufficient to move
the compressed air hose to the connection of the
filter unit and tighten the threaded clamp.
Fig. 42:
Compressed air connection
2. Set a pressure between 8 – 10 bar.
First pull the pressure reducer (red knurled
screw) upwards. Then turn to set a press be-
tween 8 – 10 bar.
Monitoring the pressure on the pressure gauge.
!
A quick-release coupling with 1/4 thread is supplied
with the vehicle to enable a compressed air
connection to be made even if no bayonet connector
is available.
3. Use a 14 mm wrench to remove the swivel
connection at the filter unit.
Fig. 43:
Removing swivel connection
|
1 695 600 965
2020-02-27
4. Pull out the swivel connection and attach the quick-
release connection. Then tighten with a 14 mm
wrench.
!
Place the original seal back in position.
Fig. 44:
Fitting the quick-release connection
4.12
Electrical connection
DANGER – risk of electric shock in the
absence of grounding, in case of a faulty
ground connection or a faulty power
connector. Faulty phase, neutral-conductor
or protective-conductor connections may
cause electric shock, cardiac arrest and
death!
¶
Work on the electrical installation or
electrical equipment may only be carried
out by a qualified electrician or by trained
personnel under the direction and
supervision of a qualified electrician.
¶
Even minor work on the electrical
equipment may only be carried out by
qualified and trained personnel.
¶
The MT ZERO 6 Touch may only be
connected to the mains if its voltage
matches the rated voltage on the rating
plate.
¶
Ensure proper grounding before making
the electrical connection.
¶
Always use a correct power supply cable
for the country where the machine is to be
used.
¶
Connect a mains plug to the power supply
cable in accordance with the national
standards of the country where the
machine is to be used.
¶
In the event of a malfunction, switch the
machine off immediately using the on/
off switch, unplug the power supply cable
and consult the "Faults" section of the
operating instructions.
