1) 360° scale
2) Examination window
3) Bayonet mount
4) Examination window (patient side)
5) Focusing wheel
Purpose/indications
The slit/spot retinoscopes described in these instructions for use (aka skiascopes) were
manufactured to determine the refraction (ametropia) of the eye.
Startup and function
Attach the required instrument head to the mount on the upper part of the handle so that the
two recesses on the lower part of the instrument head align with the two protruding guide
pins of the battery handle. Gently press the instrument head onto the battery handle and
turn the handle clockwise until it stops. The head is removed by turning it anti-clockwise.
You can now use the knurled screw to rotate the slit image and focus the slit or spot image.
Rotation
The slit image can be rotated 360° using the control element. The respective angle can be
read directly from the scale on the retinoscope.
Fixation card
For dynamic retinoscopy, the fixation cards are hung and fixed in the holder on the object
side of the retinoscope.
Technical data for the bulb
Slit retinoscope HL 2.5 V 2.5 V 440 mA, avg,lifespan 15 h
Line retinoscope XL 3.5 V 3.5 V 690 mA avg.lifespan 50 h
Point retinoscope HL 2.5 V 2.5 V 450 mA avg.lifespan 15 h
Point retinoscope XL 3.5 V 3.5 V 640 mA avg.lifespan 40 h

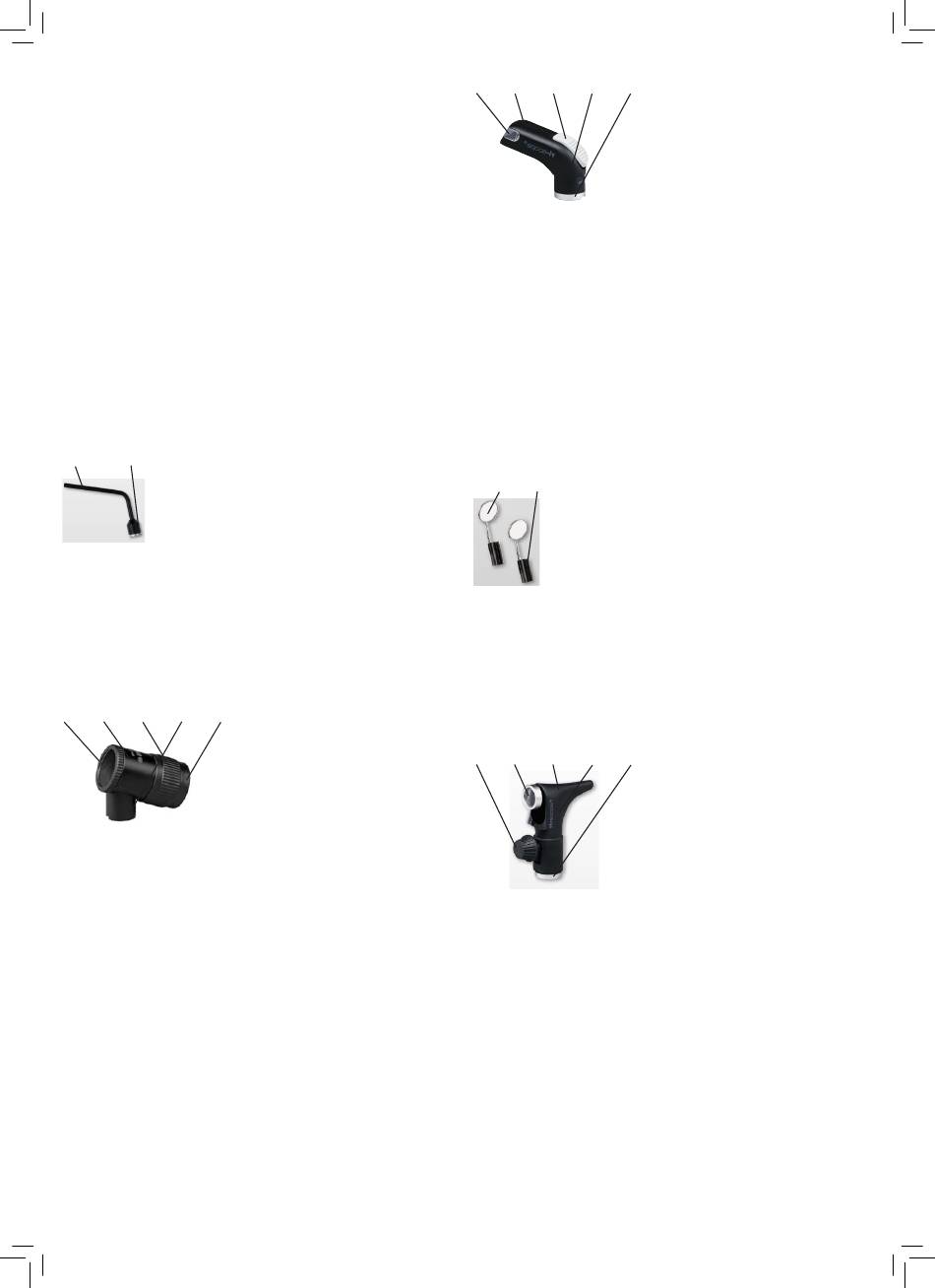

6.1.4 ri-scope® F.O. Light Conductor
1
2
1) Light Conductor with internal fibre optics
2) Bayonet mount
Purpose/indications
The Light Conductor described in these instructions for use is made to illuminate the oral
cavity and the pharynx.
Technical data for the bulb
Light Conductor XL 2.5 V 2.5 V 750 mA avg.lifespan 15 h
Light Conductor XL 3.5 V 3.5 V 690 mA avg.lifespan 15 h
Light Conductor LED 2.5 V 2.5 V 280 mA avg.lifespan 10,000 h
Light Conductor LED 3.5 V 3.5 V 280 mA avg.lifespan 10,000 h
6.1.5 ri-scope® dermatoscope
1
2
3
4
5
1) Skin-friendly contact plate with scale
2) Metal housing
3) Focusing wheel
4) Bayonet mount
5) Magnifying lens, 10x
Purpose/indications
The ri-derma dermatoscope described in these instructions for use is produced for the early
detection of pigmented skin changes (malignant melanomas).
Focusing
Turn the ocular ring to focus the magnifying glass.
Skin-friendly contact plates
2 skin-friendly contact plates are included:
1) With a scale of 0-10 mm for the measurement of pigmented lesions such as malignant
melanoma.
2) Without scale.
Both skin-friendly contact plates are easily removable and replaceable.
Technical data for the bulb
ri-derma XL 2.5 V 750 mA avg.lifespan 15 h
ri-derma XL 3.5 V 690 mA avg.lifespan 15 h
ri-derma LED 2.5 V 280 mA avg.lifespan 10,000 h
ri-derma LED 3.5 V 280 mA avg.lifespan 10,000 h
6.1.6 ri-scope® F.O. tongue blade holder
1
2
3
4
5
1) Light guide
2) Plastic housing
3) Sliding mechanism for tongue depressor
4) Internal fibre optics
5) Bayonet mount
Purpose/indications
The tongue depressor holder described in these instructions for use is manufactured for the
examination of the mouth and throat area in combination with standard wooden and plastic
tongue depressors.
Startup
Insert a standard wooden or plastic tongue depressor into the aperture below the light ope-
ning to the stop. The tongue depressor is easy to remove after examination by actuating the
ejector.
Technical data for the bulb
F.O. tongue blade holder XL 2.5 V 2.5 V 750 mA avg.lifespan 15 h
F.O. tongue blade holder XL 3.5 V 3.5 V 720 mA avg.lifespan 15 h
F.O. tongue blade holder XL 2.5 V 2.5 V 280 mA avg.lifespan 10,000 h
F.O. tongue blade holder LED 3.5 V 3.5 V 280 mA avg.lifespan 10,000 h
1
2
1) Mirror
2) Bracket for lamp holder
Purpose/indications
The laryngeal mirrors described in these instructions for use are manufactured for mirro-
ring orexamination of the mouth and throat area in combination with a Riester lamp holder.
Startup
The laryngeal mirrors can only be used in combination with the light conductor. This ensures
optimal illumination. Take one of the 2 laryngeal mirrors and attach it to the front of the light
conductor in the desired direction.
6.1.7 ri-scope® nasal speculum
1
2
3
4
5
1) Screw for expanding the speculum
2) Swivel lens, 2.5x magnification
3) Expandable speculum
4) Internal fibre optics
5) Bayonet mount
Purpose/indications
The nasal speculum described in these instructions for use is produced for illumination and
thereby examination of the inside of the nose.
Two modes of operation are possible:
a) Quick spreading
Push the set screw on the instrument head down with your thumb. In this adjustment, the
position of the shank of the speculum cannot be changed.
b) Individual expansion
Turn the adjusting screw clockwise until you reach the desired expansion width. The shanks
close again when the screw is turned counter-clockwise.
Swivel lens
On the nasal speculum there is a swivel lens with a magnification of around 2.5x, which
can be simply pulled out or reinserted into the opening provided on the nasal speculum, as
required.
Technical data for the bulb
Nasal speculum XL 2.5V, 2.5V 750 mA avg.lifespan 15 h
Nasal speculum XL 3.5V, 3.5V 720 mA avg.lifespan 15 h
Nasal speculum LED 2.5V, 2.5V 280 mA avg.lifespan 10,000 h
Nasal speculum LED 3.5V, 3.5V 280 mA avg.lifespan 10,000 h
