Remove the RVS-100 and RVS-200 devices from the packaging and check all parts for da-
mage.

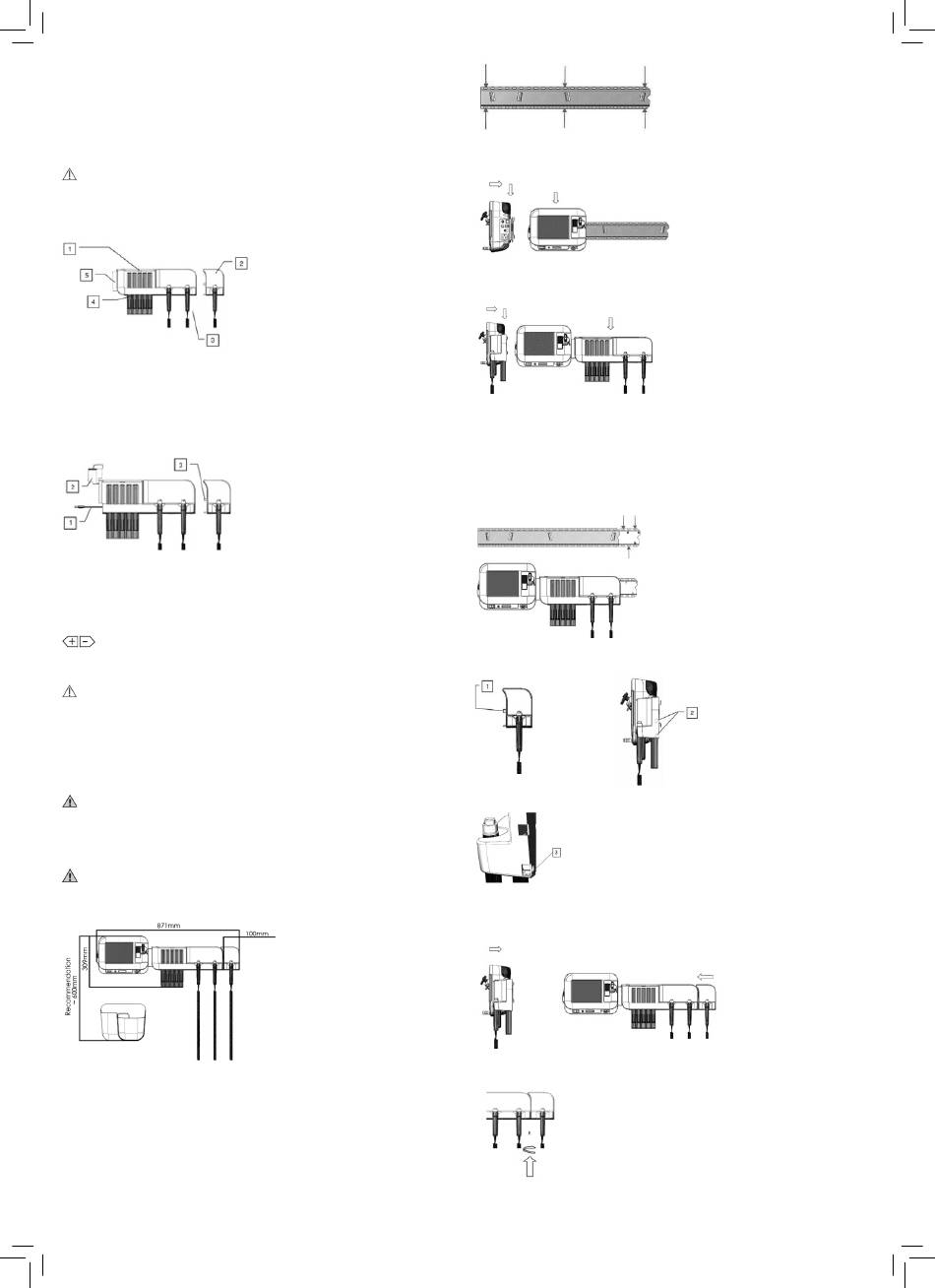

2.2 Device function

Front view (1)
1. The housing of the RVS-200 wall diagnostic station with protective cover for the
specula dispenser and with two handles to connect the instrument heads.
2. Optional RVS-200 Extension Module with a handle to which another
Instrument head can be connected.
3. Handle for instrument head.
4. Specula dispenser.
5. Maintenance cover.
Front view (2)
1. Power connection for RVS-100.
2. Opened maintenance cover.
3. Power connection from the RVS-200 Extension Module to the RVS-200 Wall Diagnostic
Station.

3. Operation and function

3.1 Symbol identification

Regulate light intensity
3.2 Startup

3.2.1 Before first use

Please observe the operating instructions for the RVS-100!
• Connect the power cord to a properly grounded socket. Avoid using the same electrical
circuit to which appliances such as air conditioners that are regularly switched on and off
are connected.
• Avoid putting the RVS-100 and RVS-200 in wobbly or unstable locations.
• Enough space should be left around the devices to ensure normal ventilation.
• Make sure the ambient temperature and humidity are stable and avoid the occurrence of
condensation during the operation of the devices.
Never install the RVS-100 and RVS-200 in an environment where flammable anaesthetic
gases are present.

3.2.2 Wall mounting

3.2.2.1 Attaching the RVS-100 and RVS-200 Wall Diagnostic Station

Please make sure that the wall to which the RVS-200 is mounted has sufficient load bearing
capacity!
Space requirement
600mm = 23,622 inch
309mm = 12,165 inch
871mm = 34,291 inch
100mm = 3,937 inch
a.) Drilling instructions for RVS-100 and RVS-200 Wall Diagnostic Station. Follow the inst-
ructions when drilling the holes in the wall.
b.) Attaching the wall mounting plates
After you have drilled the holes, take the dowels supplied and push them into the holes as
far they will go. Hold the wall mounting plate against the wall so that the screws can be
inserted through the holes in the mounting plate into the dowels. Now tighten the screws
with a screwdriver.
We recommend these mounting points!
14

3.2.2.2 Attachment of the RVS-100

When all screws have been screwed in tightly, take the RVS-100 and pass the holder through
the openings (1). Then press the RVS-100 downwards until it snaps into place.

3.2.2.3 Attachment of the RVS-200 Wall Diagnostic Station

Take the RVS-200 Wall Diagnostic Station and pass the holder through the openings (1).
Then press the RVS-200 Wall Diagnostic Station downwards until it snaps into place.

3.2.2.4 Attachment of the RVS-200 Extension Module

Drilling instructions for the RVS-200 Extension Module.
Follow the instructions when drilling the holes in the wall.
a.) Attaching the wall mounting plates
After you have drilled the holes, take the dowels supplied and push them into the holes as
far they will go. Hold the wall mounting plate against the wall so that the screws can be
inserted through the holes in the mounting plate into the dowels. Now tighten the screws
with a screwdriver.
We recommend these mounting points!
b.) Make sure that the connector is undamaged (1). Also, make sure that the two predeter-
mined breaking points at the RVS-200 Wall Diagnostic Station are broken out with a pair of
pliers (2).
c.) If a burr remains there (3), please remove with a knife.
d.) When all screws have been tightened, take the RVS-200 Extension Module and pass the
screw head through the openings. Then press the RVS-200 Extension Module to the left until
it docks properly.
e.) Connect the RVS-200 Extension Module to the RVS-200 Wall Diagnostic Station with the
screw supplied.
