1. Introduction
1.1 Important information prior to use
You have purchased a high-quality Riester device, which was manufactured in compliance
with Regulation (EU) 2017/745 and is subject to the strictest quality controls at all times.
Read through these instructions for use carefully before using the device and keep them in a
safe place. If you have any questions, we are available at any time, and our contact informa-
tion is provided at the end of this IFU. Contact information for Riester sales and dsitribution
partners can be provided upon request. Please note all instruments described in these inst-
ructions for use may only be used by appropriately trained personnel. The safe functioning of
this device is only guaranteed if Riester original parts and accessories are used.
Intended use
The RVS-200 Wall Diagnostic Station and RVS-200 Extension Module were manufactured for
use with multiple ri-scope L instrument heads for non-invasive ENT and ophthalmological
diagnoses.
The RVS-200 Wall Diagnostic Station and RVS-200 Extension Module can only be operated
in conjunction with the RVS-100 Vital Signs Monitor. The RVS-100 Vital Signs Monitor is the
sole power source.
The integrated speculum dispenser serves as a storage container for ear specula of varying
sizes, which are easily dispensed. The RVS-100 Vital Signs Monitor, RVS-200 Wall Diagnostic
Station, and RVS-200 Extension Module were designed for use in outpatient departments
and emergency treatment rooms of hospitals, community clinics, private clinics and other
medical institutions. They are not intended for flight transport, ambulance or home use.
Restrictions on use
They are not intended for flight transport, ambulance or home use.
12
Manufacturer's configuration
The RVS-200 consists primarily of a storage container / dispenser for ear specula. The integ-
rated handles serve as power sources for the interchangeable instrument heads.
Warning: The monitor and the wall unit are intended for use only by clinical professio-
nals or under their guidance. It must only be used by personnel who have received adequate
training on its use. Any unauthorized or untrained indidual must not operate the device.

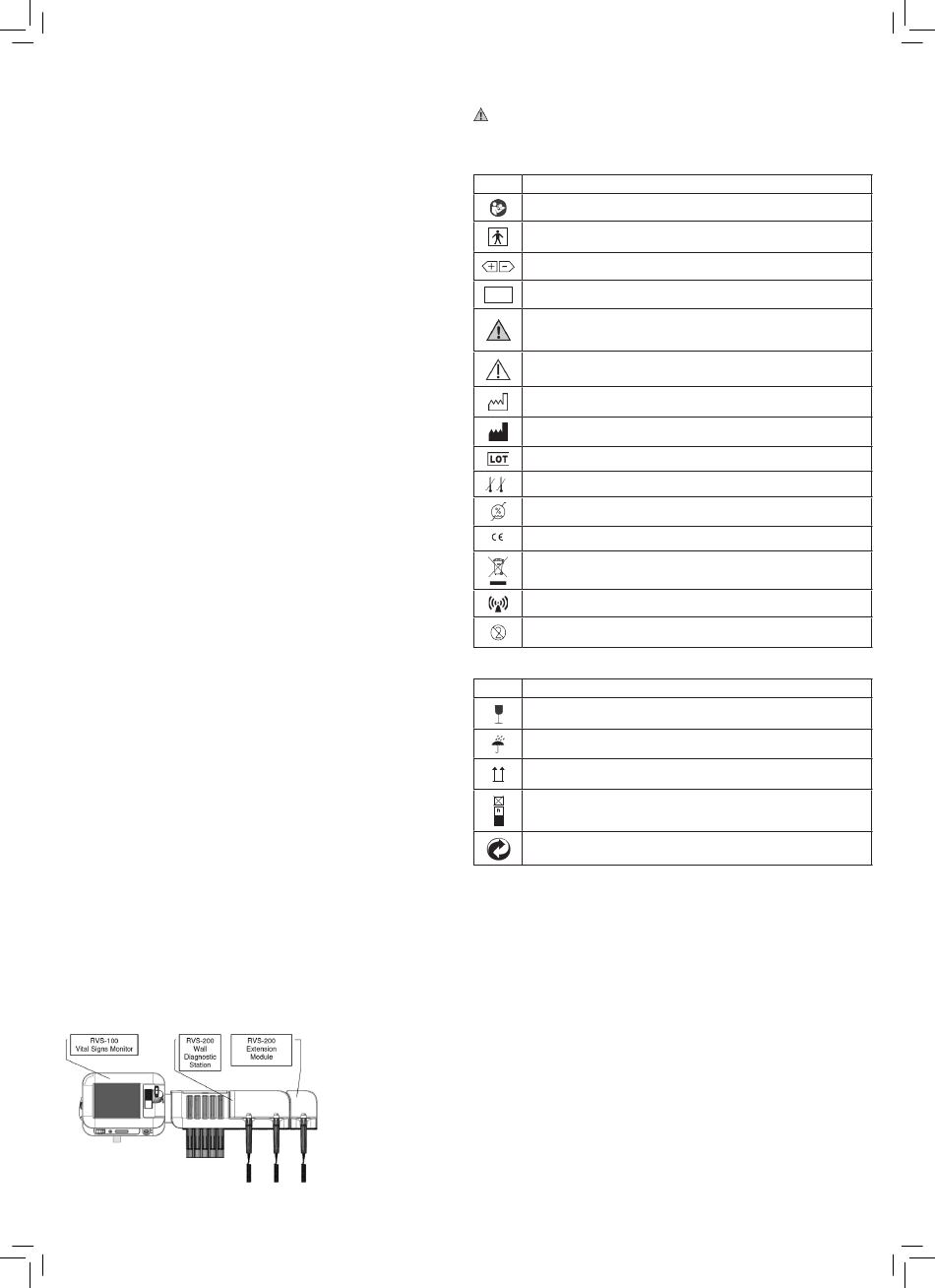

1.2 Safety symbols
Symbol
Note on symbol
The operator is obliged to read the instructions of the operating manual
Type BF indicates the device is classified as a device with a Type BF applied
part
Regulate light intensity
MD
Medical device
Warning!
The general warning symbol indicates a potentially dangerous situation that
can lead to serious injuries.
Caution!
Read operating instructions before use
Date of manufacture
Manufacturer
Production lot number/batch
Temperature for transportation and storage
Relative humidity for transportation and storage
CE Mark
The symbol refers to the separate collection of waste electrical and electronic
equipment in accordance with Directive 2002/96/EC.
Non-ionizing radiation
For single use only
1.3 Packaging symbols
Symbol
Note on symbol
Fragile. The package should be handled with care.
Keep the package from getting wet.
This way up. The symbol indicates the correct positioning for transporting the
package.
Stacking layer limit. This indicates the maximum number N of stacking layers
of the same package, where N stands for the number of layers. (N is 6).
„Green Dot" (country-specific)
1.4 Purpose
The RVS-200 Wall Diagnostic Station and RVS-200 Extension Module were manufactured for
use with various instrument heads for non-invasive ENT and ophthalmological diagnoses.
The RVS-200 Wall Diagnostic Station and RVS-200 Extension Module can only be operated
in conjunction with the RVS-100 Vital Signs Monitor. The RVS-100 Vital Signs Monitor is the
sole power source.
The integrated ear specula dispenser serves as a storage container for ear specula, and
various sizes of ear specula can be easily dispensed. RVS-100 Vital Signs Monitor, RVS-200
Wall Diagnostic Station, and the RVS-200 Extension Module
have been designed for use in outpatient departments and emergency treatment rooms in
hospitals, health centers, private clinics and other medical institutions. They are not inten-
ded for air transport, ambulance or home use.
Product description/indications
The RVS-200 Wall Diagnostic Station is an optional expansion unit without its own power
supply and, when connected, serves as an extension (accessory) of the RVS-100 Vital Signs
Monitor. It has 2 handles. The specula dispenser is integrated and serves as a storage box
for ear specula, with a mechanism for removing ear specula of various sizes.
An RVS-200 Extension Module with one handle can be installed and connected to the right
side of the RVS-200 Wall Diagnostic Station. The handles can be equipped with various inst-
rument heads. Instrument heads are not included and must be purchased separately.
These various instruments aid the trained clinician in the detection, diagnosis, monitoring,
treatment or alleviation of illnesses, injuries or disabilities. Their proper use is possible
using only the 3.5V ri-scope L instrument heads also manufactured by Riester.
Functions - The RVS-200 Wall Diagnostic Station, and RVS-200 Extension Module, supply the
various instrument heads with energy that is drawn from the RVS-100 Vital Signs Monitor.
