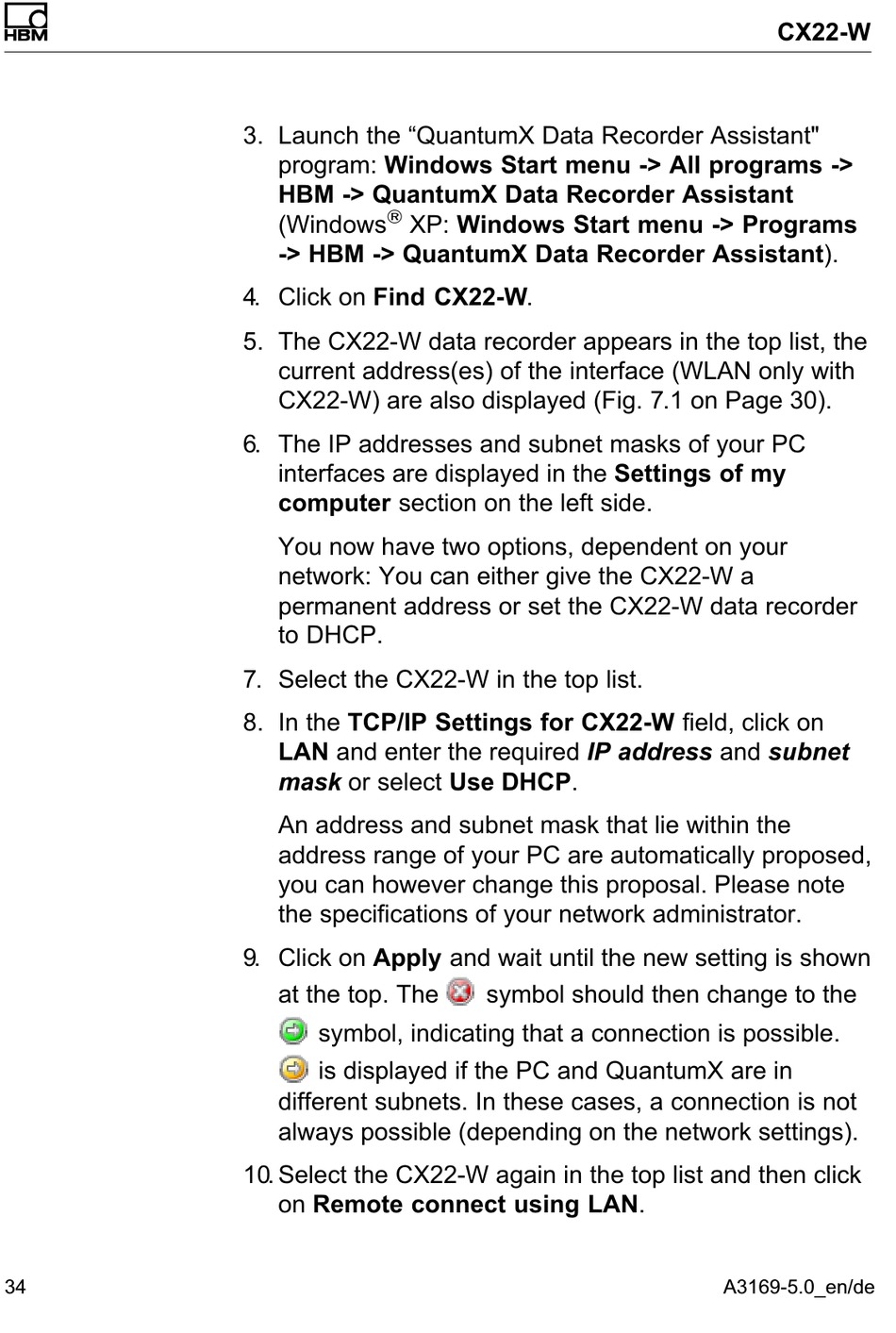

3. Launch the "QuantumX Data Recorder Assistant"
program: Windows Start menu -> All programs ->
HBM -> QuantumX Data Recorder Assistant

(Windows XP: Windows Start menu -> Programs
-> HBM -> QuantumX Data Recorder Assistant).
4. Click on Find CX22-W.
5. The CX22-W data recorder appears in the top list, the
current address(es) of the interface (WLAN only with
CX22-W) are also displayed (Fig. 7.1 on Page 30).
6. The IP addresses and subnet masks of your PC
interfaces are displayed in the Settings of my
computer section on the left side.
You now have two options, dependent on your
network: You can either give the CX22-W a
permanent address or set the CX22-W data recorder
to DHCP.
7. Select the CX22-W in the top list.
8. In the TCP/IP Settings for CX22-W field, click on
LAN and enter the required IP address and subnet
mask or select Use DHCP.
An address and subnet mask that lie within the
address range of your PC are automatically proposed,
you can however change this proposal. Please note
the specifications of your network administrator.
9. Click on Apply and wait until the new setting is shown
at the top. The
symbol, indicating that a connection is possible.
is displayed if the PC and QuantumX are in
different subnets. In these cases, a connection is not
always possible (depending on the network settings).
10. Select the CX22-W again in the top list and then click
on Remote connect using LAN.
symbol should then change to the
CX22-W
A3169-5.0_en/de
