Display of the found CX22-W and whether connection is possible
Your PC's address settings
30
CX22-W) are also displayed. The module in Fig. 7.1
has IP address 172.24.128.128 and subnet mask
255.255.0.0 (factory settings).

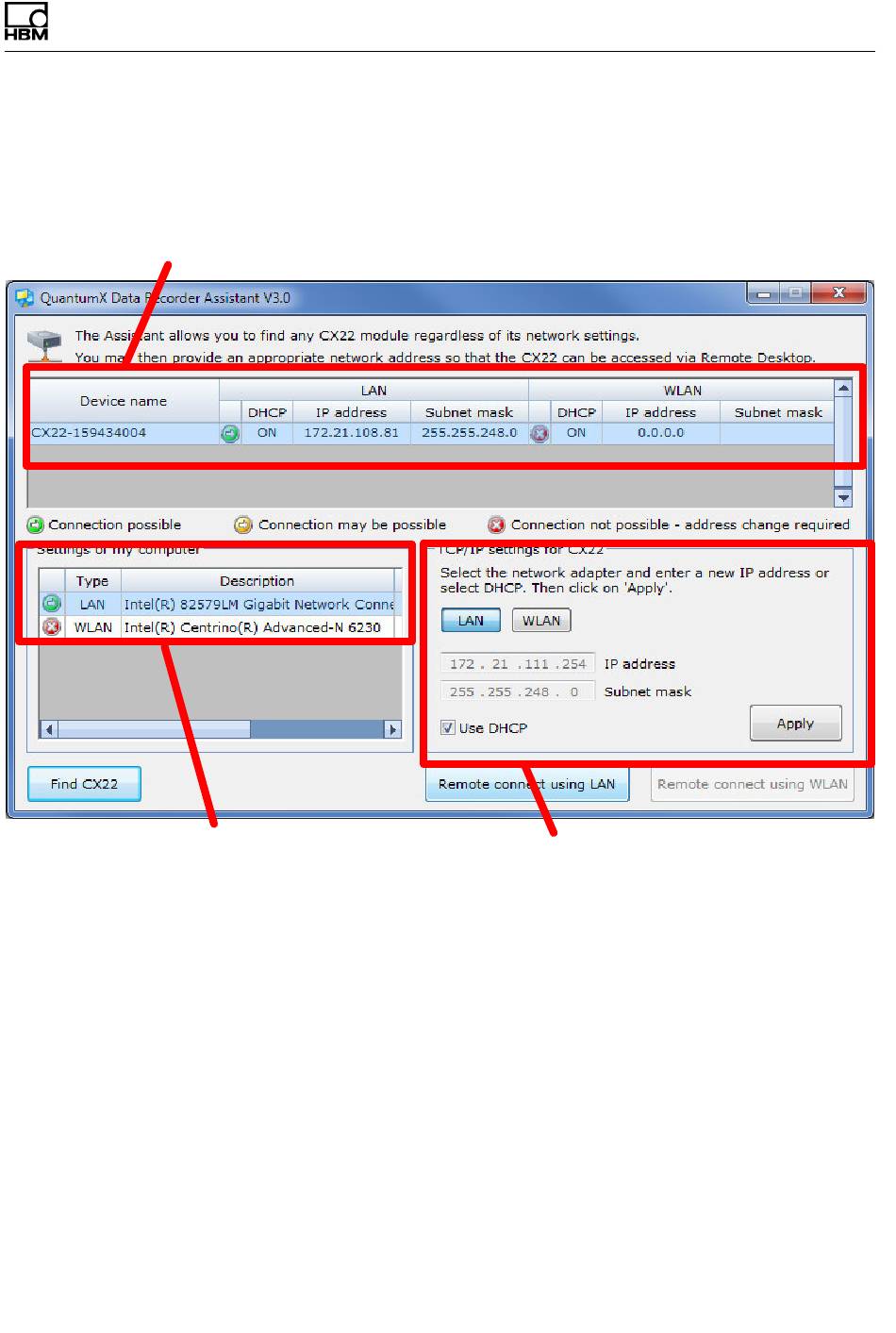

Fig. 7.1 Display in QuantumX Data Recorder Assistant after
a network search (example with connection via LAN)
6. The IP addresses and subnet masks of your PC
interfaces are displayed in the Settings of my
computer section on the left side.
Depending on the configuration of your PC, both the
PC and the CX22-W can be set to DHCP, then
suitable addresses are set up (renewed) between the
two devices and you can continue next time with
step 10. Alternatively you can use permanent
CX22-W address settings
CX22-W
