Supply voltage
10  30 V
Grounding
16
Lock for CF card
LED
DC
CF card, type 1

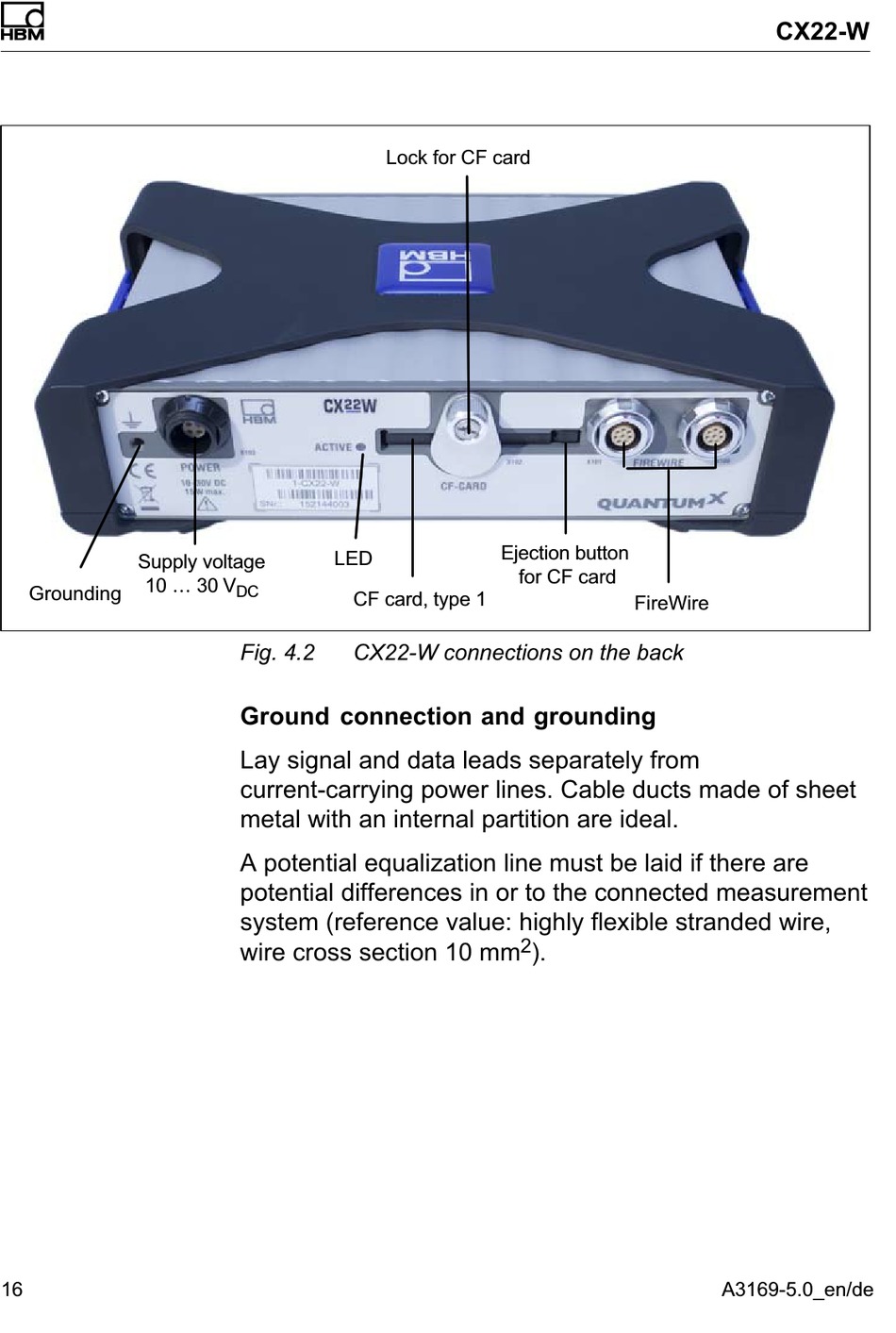

Fig. 4.2 CX22-W connections on the back
Ground connection and grounding
Lay signal and data leads separately from
current-carrying power lines. Cable ducts made of sheet
metal with an internal partition are ideal.
A potential equalization line must be laid if there are
potential differences in or to the connected measurement
system (reference value: highly flexible stranded wire,
wire cross section 10 mm
Ejection button
for CF card
FireWire
2
).
CX22-W
