8 Connecting the camera
(not required for second monitor)
1. 1.
Camera in holder 6 in the dentist element C1
i
NOTE
If
SIROTOM or
SIROSON L or
POLYLUX Light is installed in holder 6, it must be removed.

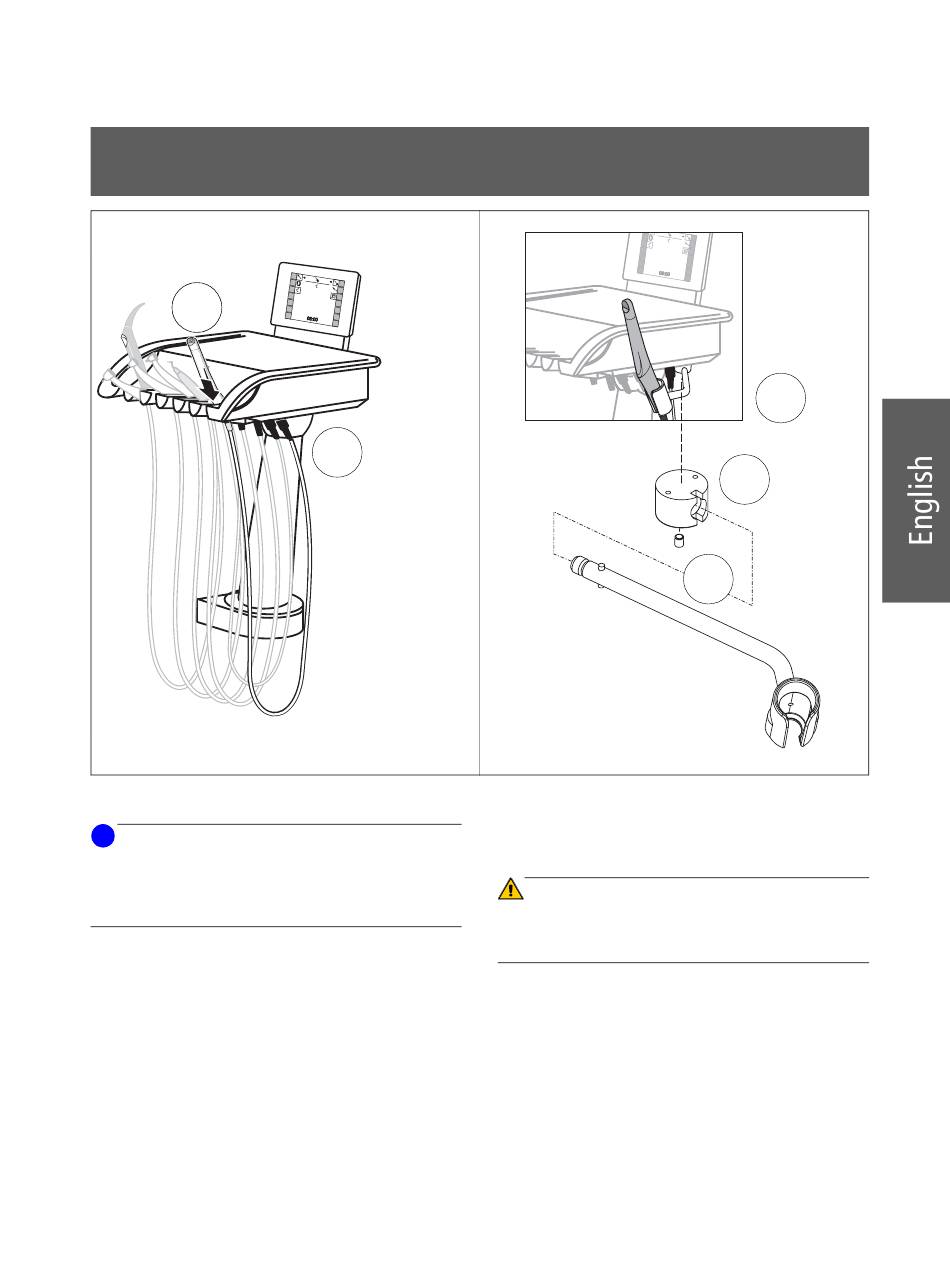

1. Hook the camera into the holder on the dentist element
(holder 6).
Connect the camera, refer to installation step 4.
Camera in additional holder on the dentist element C1
2. Screw the additional holder tight on the dentist element.
3. Hook the camera in the additional holder.
Connect the camera, refer to installation step 4.
59 14 200 D 3322
D 3322.031.11.04.02
4.
+
Connecting the camera (camera in holder 6 or in the
additional holder)
4. Push the camera plug carefully into the socket.
The connection socket is intended exclusively for
connecting the SIROCAM 3 / SIROCAM C intraoral camera.
No other devices may be connected there!
+

8 Connecting the camera (not required for second monitor)

3.
ATTENTION
4.
2.
