Example: SIDEXIS PC
Now connect the cables to the PC:
1. Secure the ground wire to an appropriate point on the
PC chassis.
2. Run the S video cable L15 in a loop in the accompany-
ing ferrite core. Place the ferrite core as close as possi-
ble to the PC connector. Then install the plug in the
framegrabber card.
(not for a second monitor without a camera)
3. Connect RS 232 cable L37 to a free serial port and se-
cure the plug.
4. Connect XGA cable L38 to the graphics card and se-
cure the plug.
i
NOTE
The hardware and software configuration of the PC is
described in the document "IInstallation Instructions and
System Prerequisites" for SIVISION 2, SIVISION 3
(59 11 321).
59 14 200 D 3322
D 3322.031.11.04.02

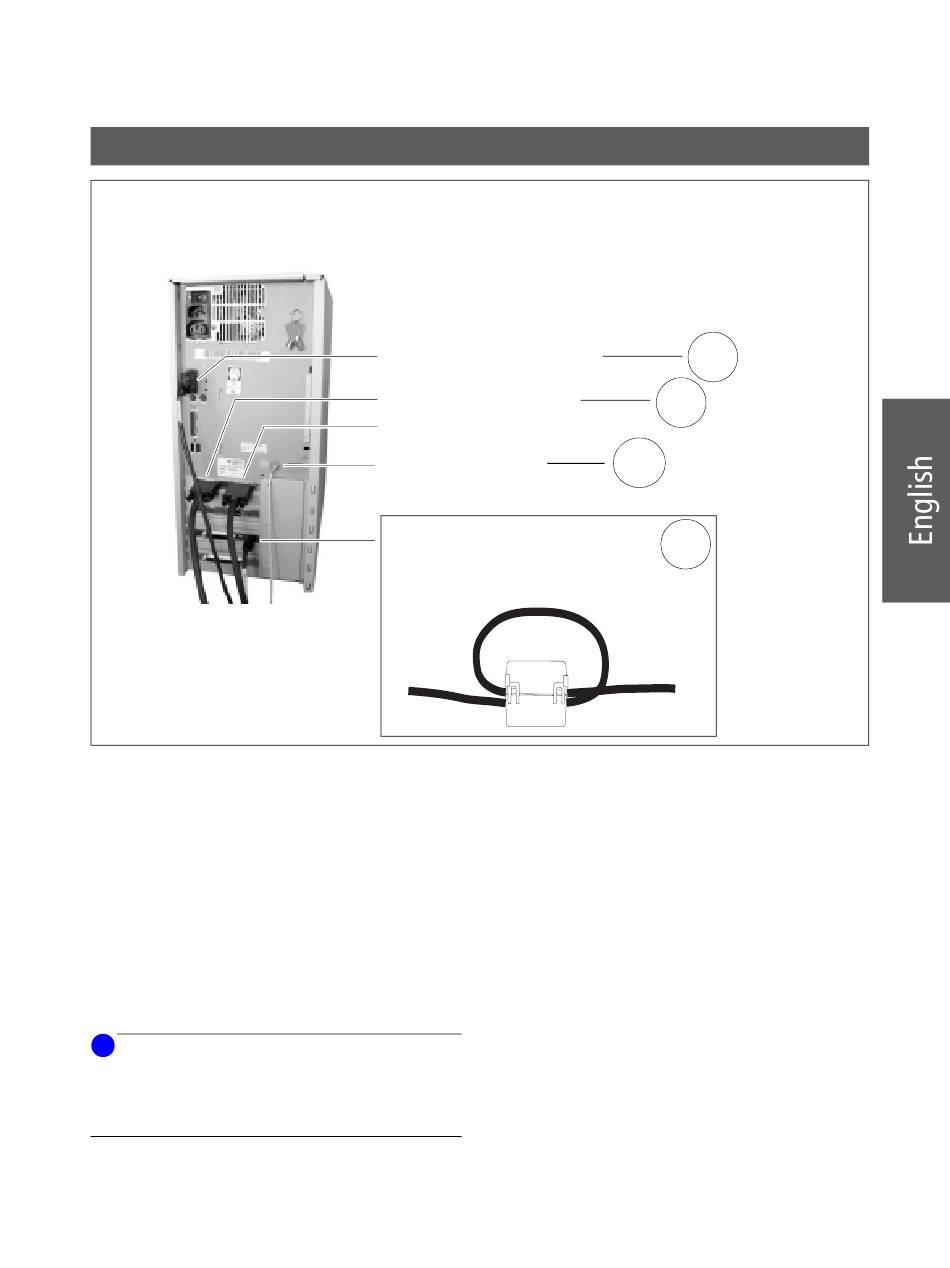

10 Running Cables to the PC, Installing and Connecting the Plugs
RS 232 cable L37
XGA cable L38
PC monitor
Ground wire
S video cable L15
(not required for second
monitor)
L15
3.
4.
1.
2.
