7 Connections in the Terminal Box of the Chair
4.
4.

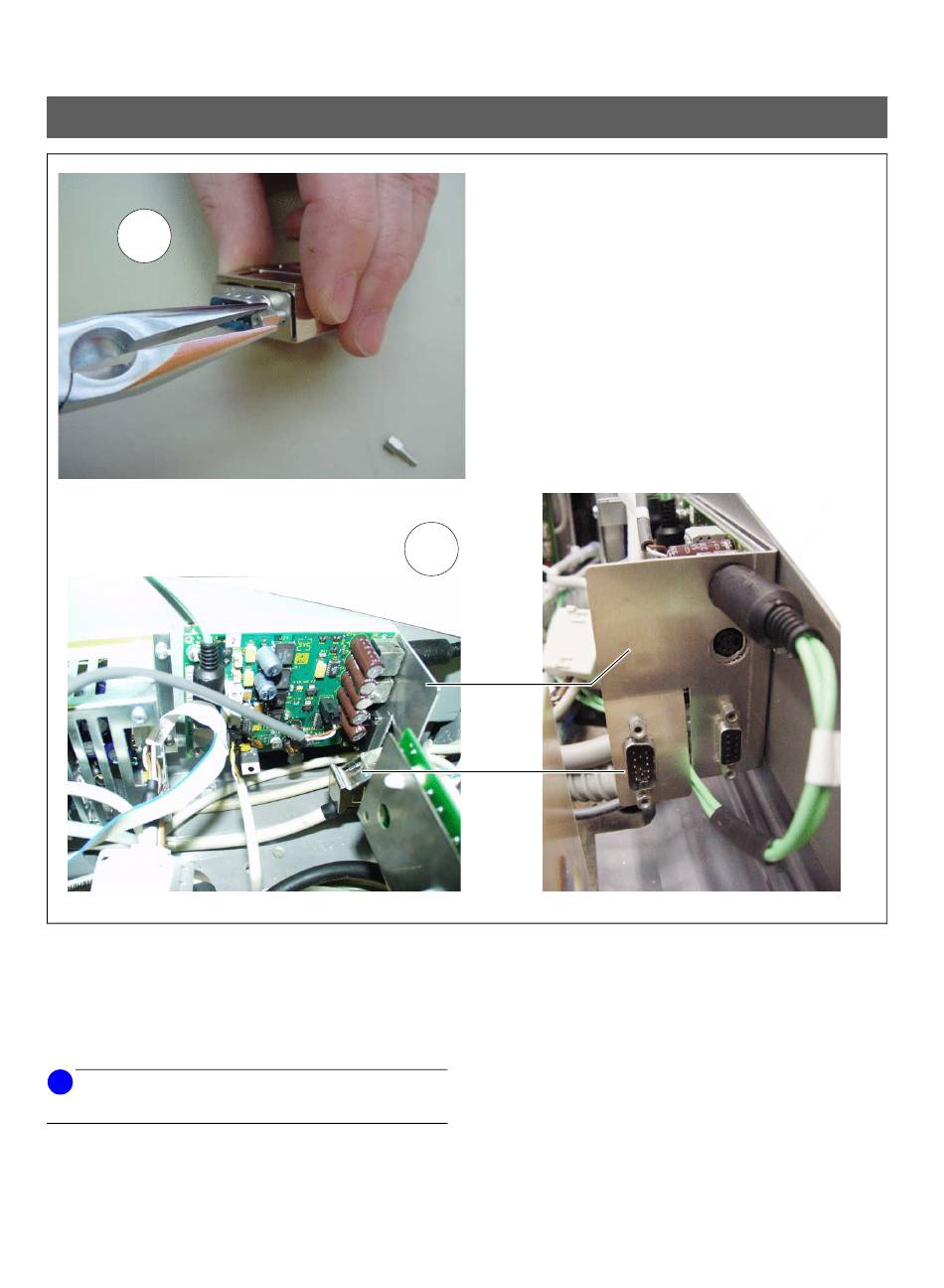

The Sub D plug of the XGA cable L35 must be mounted
on the angle bracket W.
To do this, unscrew the two hexagon bolts from the sub
D plug using a pair of pliers or a socket wrench.
5.
Screw the sub D plug onto the angle bracket W using
the hexagon bolts.
i
NOTE
Next, check that all plug connections are securely inserted.
14
5.
W
L35
Sirona Dental Systems GmbH
59 14 200 D 3322
D 3322.031.11.04.02
