Sirona SIVISION 3 Installationsanleitung Seite 34

4 Installing the Tray Support Arm for Monitor

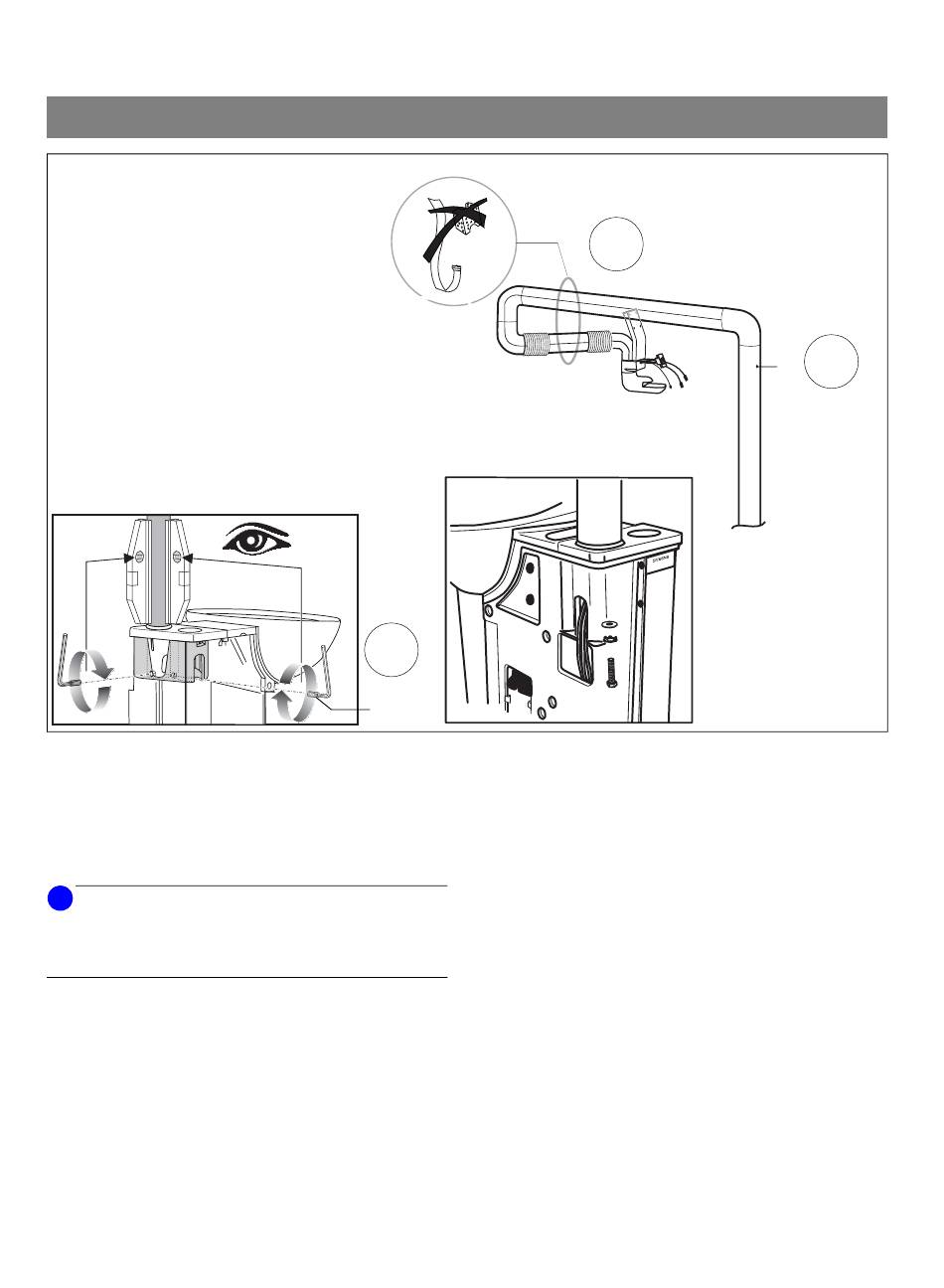

7. Take 2 setscrews (M6x14) from the accessory pack and
screw them into the chassis.
Place washer and spring ring onto screw S as shown
and screw in (do not tighten yet).
Align the support tube with the help of the setscrews
and spirit level so that it is vertical.
Tighten screw S.
i
NOTE
For left-handed versions rotate the support arm so that its
gravity center is turned away from the chair toward the di-
rection of the water unit.
8. Remove the transport safety device.
9. Adjust the stiffness of the support arm using set
screw B.
8
7.
M6x14
Sirona Dental Systems GmbH
8.
S
59 14 200 D 3322
D 3322.031.11.04.02
9.
B
