1.

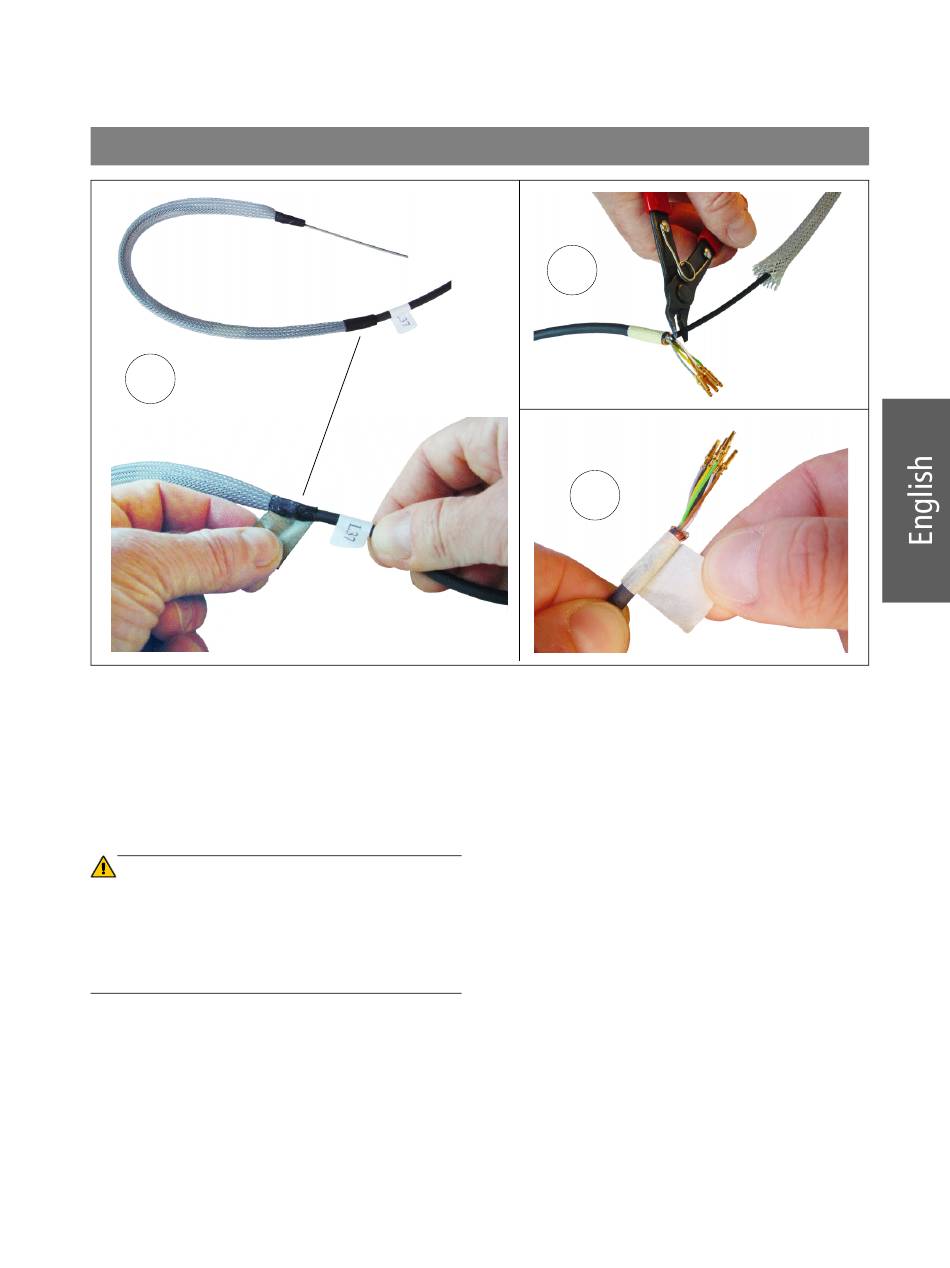

Preassembling RS232 cable L37:
1. Remove the adhesive tape around the braiding.
2. Push back braiding and cut off the wire pull.
Make certain not to damage or inadvertently cut off
any wires!
3. Remove the adhesive tape. Pull it off carefully so that
no wires are torn from the outer sheath.
ATTENTION
Proceed with extreme care when assembling the sub D
plug. Once a pin is inserted in the wrong hole, it cannot
be removed!
Be certain to work with proper lighting! Make certain the
wires are installed using the shortest path! The pins must
audibly/tangibly lock in place.
4. Insert all pins according to the accompanying diagram
(see also diagram on page 20).
5. Next, install the plug in the plug housing. Make sure
that:
• The sheath is seated securely in the plug housing,
• the wires do not become kinked,
• No wires are crushed when closing the housing.
59 14 200 D 3322
D 3322.031.11.04.02
10 Running Cables to the PC, Installing and Connecting the Plugs
