Connections in the Terminal Box of the Chair

Right-handed configuration
SVC

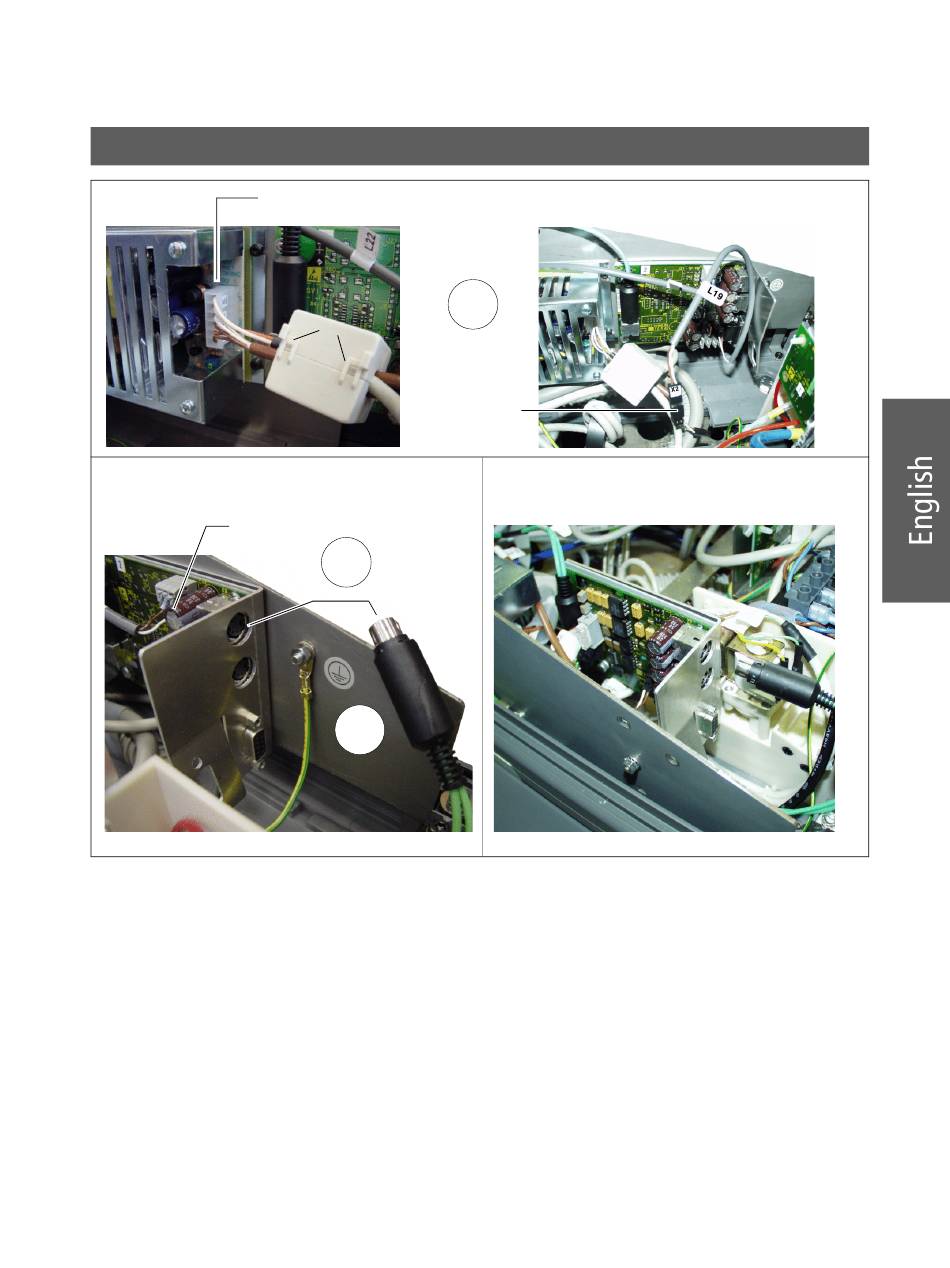

1. Connecting the power supply:
– Run cable L40 and the two short cables with con-
nectors X2 and X3 into the ferrite core provided.
– Close the ferrite core. Make certain the cover tabs
V snap into place.
– Plug the connector TB2 into the power supply
(ATTENTION! Make sure it is plugged in at the cor-
rect height!).
– Plug connector X2 of cable L19 (coming from
board SVC) into connector X2 (ferrite core).
2. Connect the ground wire to point E.
3. Connect the video cable L7 to the monitor at the upper
socket of the board SVC.
