Sirona Dental Systems GmbH
Turn both up
M3x8
L35 XGA-Video
L7 S video
L40 power supply
(Engage)

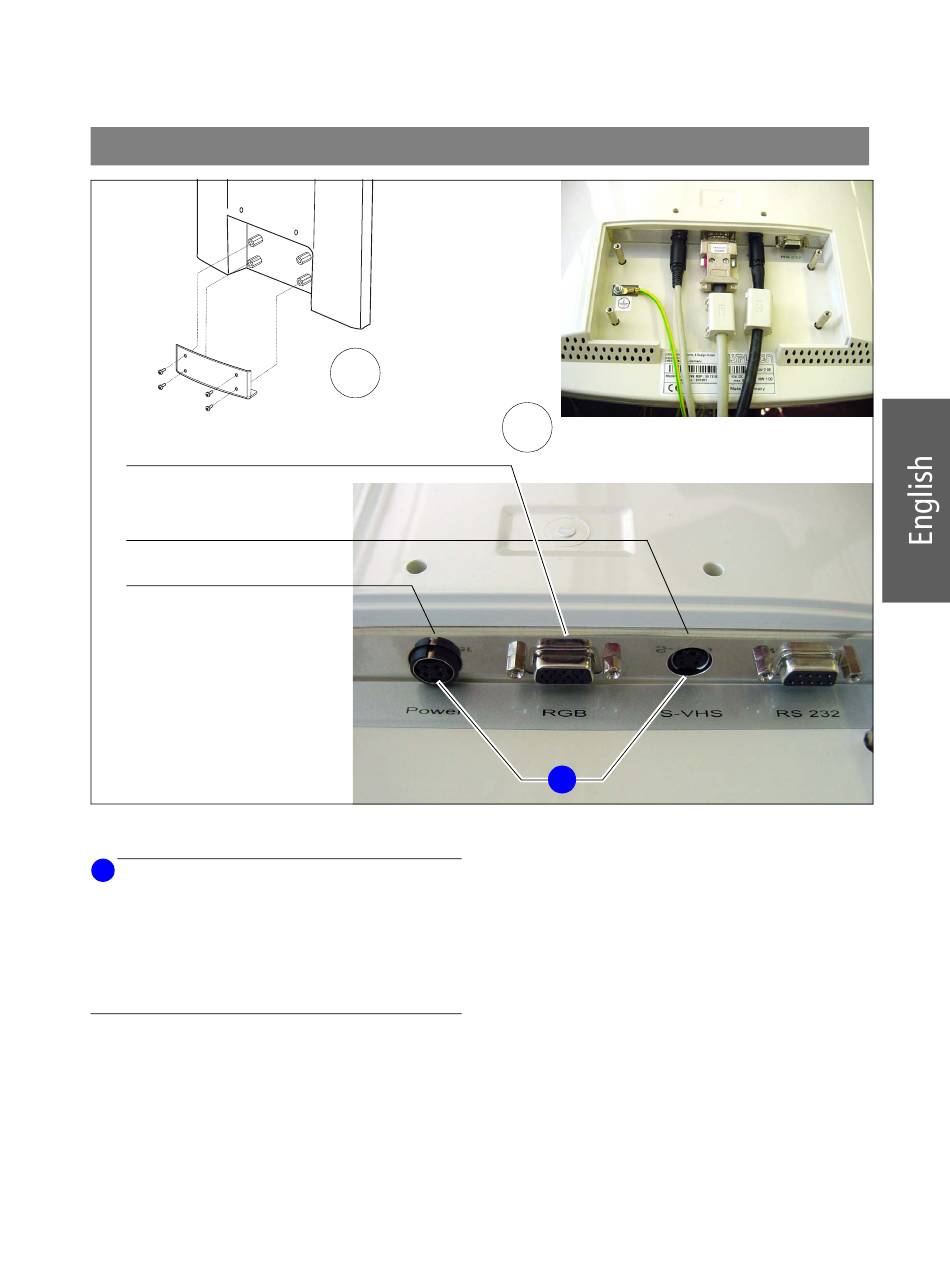

7. Plug the connectors into the marked sockets on the
monitor.
i
NOTE
Make certain not to confuse the power supply L40 and the S
video cable L7, as the connectors on the two cables look
very similar (the ferrite core is attached to the S video
cable).
The connectors are designed not to allow them to be
plugged in incorrectly, but trying to force them could
damage the connector contacts.
8. Screw the protective cover back onto the monitor.
59 14 200 D 3322
D 3322.031.11.04.02
8.
(screw tight)
7.
i
5 Installation of the Monitor
11
