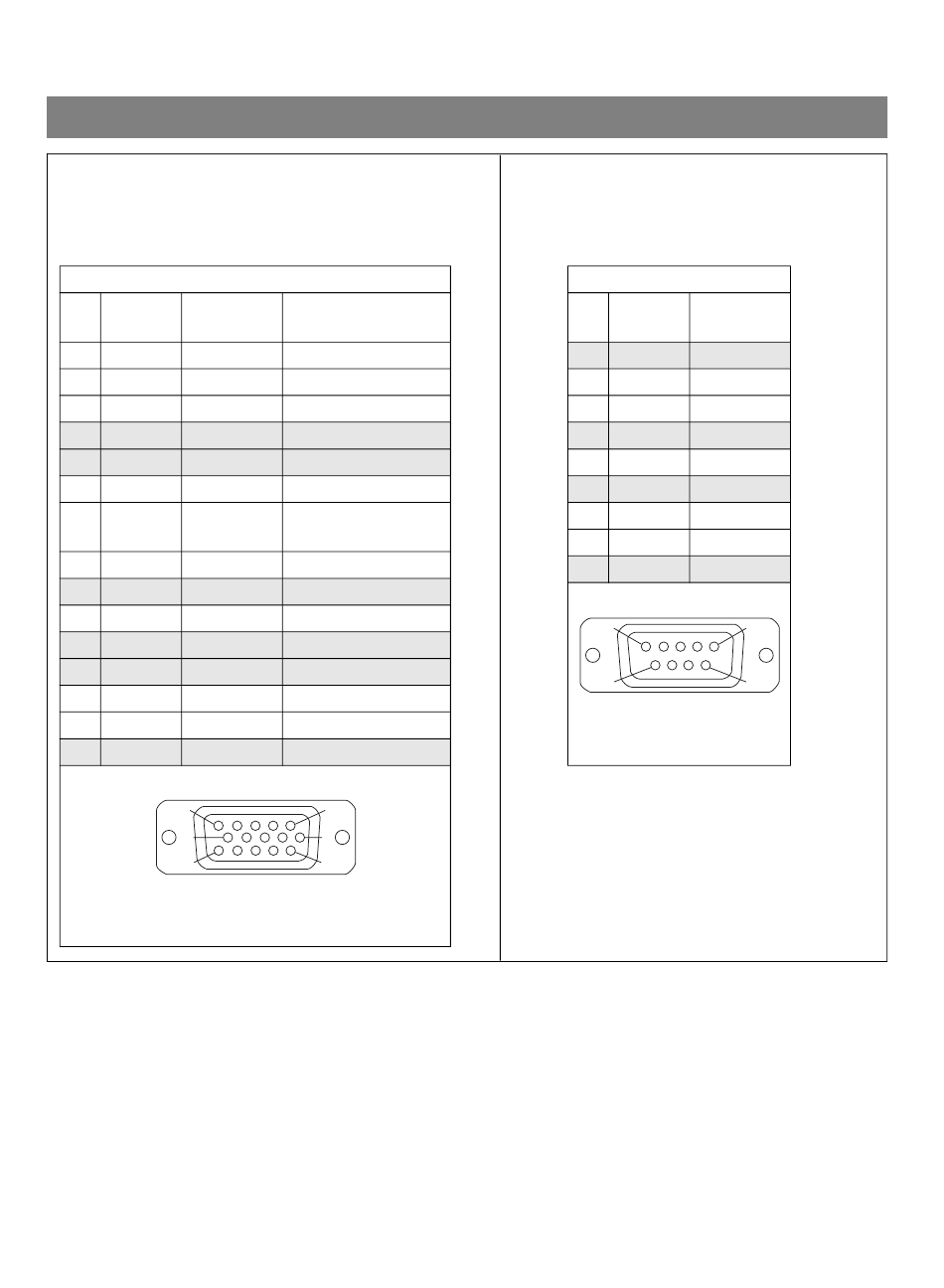

10 Running Cables to the PC, Installing and Connecting the Plugs
XGA cable L38
Pin Placement Guide
PIN Color Color
code
1 WH (RD) white (red)
2 WH (GN) white (green) Coaxial cable core
3 WH (BU) white (blue)
4 NC not used
5 NC not used
6 BN (RD) brown (red)
7 BN (GN) brown
(green)
8 BN (BU) brown (blue) Coaxial cable sheath
9 NC not used
10 BN brown
11 NC not used
12 NC not used
13 YE yellow
14 WH white
15 NC not used
5
10
15
View - pin side
Plug connector
20
Designation:
Coaxial cable core
Coaxial cable core
Coaxial cable sheath
Coaxial cable sheath
Wire
Wire
Wire
1
6
11
RS 232 Cable L37
Pin Placement Guide
PIN Color
code
1 NC
2 WH
3 BN
4 NC
5 GN
6 NC
7 YE
8 GY
9 NC
1
6
View - pin side
Socket connector
Sirona Dental Systems GmbH
Color
not used
white
brown
not used
green
not used
yellow
gray
not used
5
9
