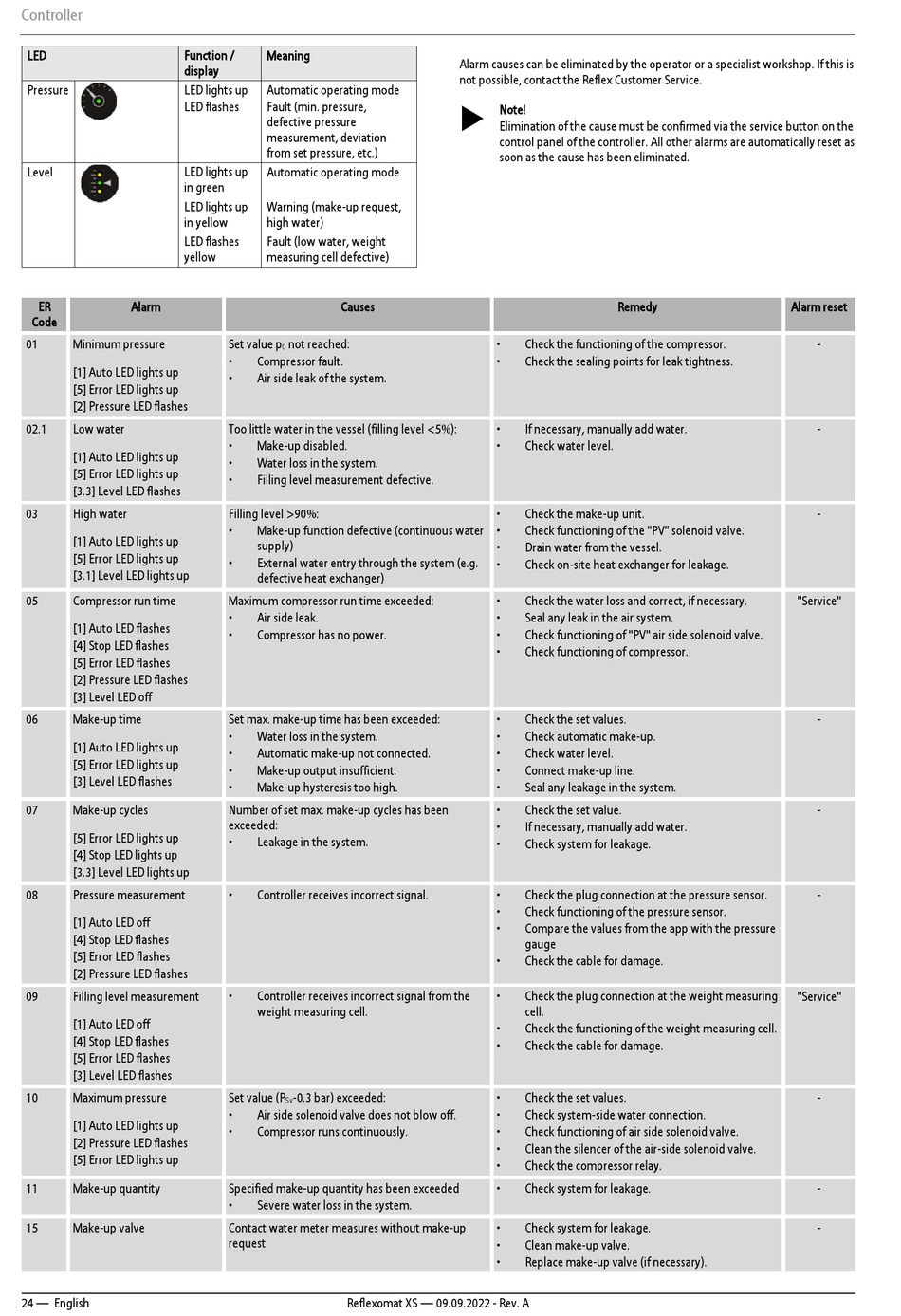

Reflex Reflexomat XS Originalbetriebsanleitung Seite 24

Controller
LED Function /
display
Pressure LED lights up
LED flashes
Level LED lights up
in green
LED lights up
in yellow
LED flashes
yellow
ER Alarm
Code
01 Minimum pressure
[1] Auto LED lights up
[5] Error LED lights up
[2] Pressure LED flashes
02.1 Low water
[1] Auto LED lights up
[5] Error LED lights up
[3.3] Level LED flashes
03 High water
[1] Auto LED lights up
[5] Error LED lights up
[3.1] Level LED lights up
05 Compressor run time
[1] Auto LED flashes
[4] Stop LED flashes
[5] Error LED flashes
[2] Pressure LED flashes
[3] Level LED off
06 Make-up time
[1] Auto LED lights up
[5] Error LED lights up
[3] Level LED flashes
07 Make-up cycles
[5] Error LED lights up
[4] Stop LED lights up
[3.3] Level LED lights up
08 Pressure measurement
[1] Auto LED off
[4] Stop LED flashes
[5] Error LED flashes
[2] Pressure LED flashes
09 Filling level measurement
[1] Auto LED off
[4] Stop LED flashes
[5] Error LED flashes
[3] Level LED flashes
10 Maximum pressure
[1] Auto LED lights up
[2] Pressure LED flashes
[5] Error LED lights up
11 Make-up quantity
15 Make-up valve
24 — English
Meaning
Automatic operating mode
Fault (min. pressure,
defective pressure
measurement, deviation
from set pressure, etc.)
Automatic operating mode
Warning (make-up request,
high water)
Fault (low water, weight
measuring cell defective)
Causes
Set value p not reached:
0
• Compressor fault.
• Air side leak of the system.
Too little water in the vessel (filling level <5%):
• Make-up disabled.
• Water loss in the system.
• Filling level measurement defective.
Filling level >90%:
• Make-up function defective (continuous water
supply)
• External water entry through the system (e.g.
defective heat exchanger)
Maximum compressor run time exceeded:
• Air side leak.
• Compressor has no power.
Set max. make-up time has been exceeded:
• Water loss in the system.
• Automatic make-up not connected.
• Make-up output insufficient.
• Make-up hysteresis too high.
Number of set max. make-up cycles has been
exceeded:
• Leakage in the system.
• Controller receives incorrect signal.
• Controller receives incorrect signal from the
weight measuring cell.
Set value (P -0.3 bar) exceeded:
Sv
• Air side solenoid valve does not blow off.
• Compressor runs continuously.
Specified make-up quantity has been exceeded
• Severe water loss in the system.
Contact water meter measures without make-up
request
Reflexomat XS — 09.09.2022 - Rev. A
Alarm causes can be eliminated by the operator or a specialist workshop. If this is
not possible, contact the Reflex Customer Service.
 Note!
Elimination of the cause must be confirmed via the service button on the
control panel of the controller. All other alarms are automatically reset as
soon as the cause has been eliminated.
Remedy
• Check the functioning of the compressor.
• Check the sealing points for leak tightness.
• If necessary, manually add water.
• Check water level.
• Check the make-up unit.
• Check functioning of the "PV" solenoid valve.
• Drain water from the vessel.
• Check on-site heat exchanger for leakage.
• Check the water loss and correct, if necessary.
• Seal any leak in the air system.
• Check functioning of "PV" air side solenoid valve.
• Check functioning of compressor.
• Check the set values.
• Check automatic make-up.
• Check water level.
• Connect make-up line.
• Seal any leakage in the system.
• Check the set value.
• If necessary, manually add water.
• Check system for leakage.
• Check the plug connection at the pressure sensor.
• Check functioning of the pressure sensor.
• Compare the values from the app with the pressure
gauge
• Check the cable for damage.
• Check the plug connection at the weight measuring
cell.
• Check the functioning of the weight measuring cell.
• Check the cable for damage.
• Check the set values.
• Check system-side water connection.
• Check functioning of air side solenoid valve.
• Clean the silencer of the air-side solenoid valve.
• Check the compressor relay.
• Check system for leakage.
• Check system for leakage.
• Clean make-up valve.
• Replace make-up valve (if necessary).
Alarm reset
-
-
-
"Service"
-
-
-
"Service"
-
-
-
