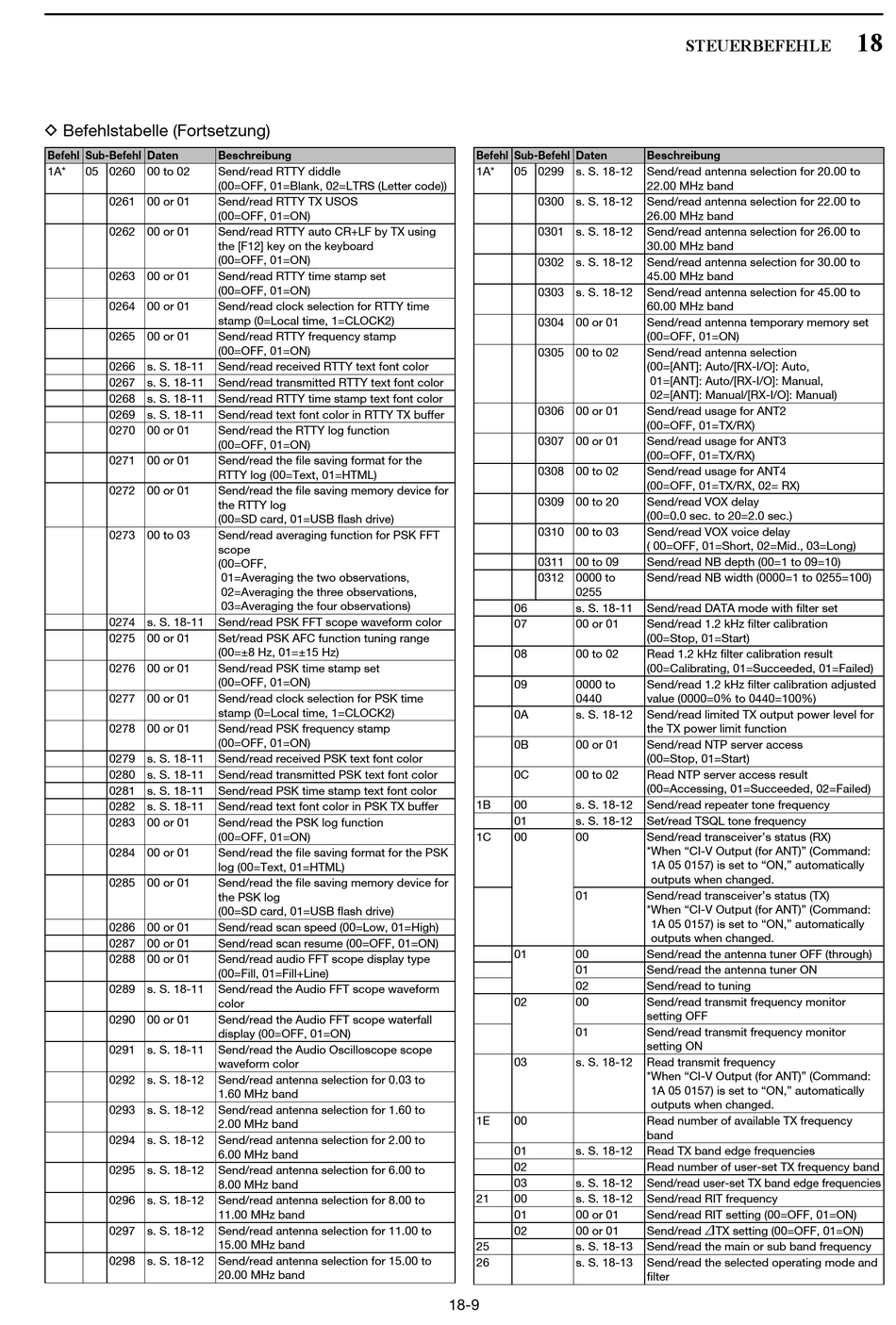

D Befehlstabelle (Fortsetzung)
Befehl Sub-Befehl Daten
1A*
05 0260 00 to 02
0261 00 or 01
0262 00 or 01
0263 00 or 01
0264 00 or 01
0265 00 or 01
0266 s. S. 18-11
0267 s. S. 18-11
0268 s. S. 18-11
0269 s. S. 18-11
0270 00 or 01
0271 00 or 01
0272 00 or 01
0273 00 to 03
0274 s. S. 18-11
0275 00 or 01
0276 00 or 01
0277 00 or 01
0278 00 or 01
0279 s. S. 18-11
0280 s. S. 18-11
0281 s. S. 18-11
0282 s. S. 18-11
0283 00 or 01
0284 00 or 01
0285 00 or 01
0286 00 or 01
0287 00 or 01
0288 00 or 01
0289 s. S. 18-11
0290 00 or 01
0291 s. S. 18-11
0292 s. S. 18-12
0293 s. S. 18-12
0294 s. S. 18-12
0295 s. S. 18-12
0296 s. S. 18-12
0297 s. S. 18-12
0298 s. S. 18-12
Beschreibung
Send/read RTTY diddle
(00=OFF, 01=Blank, 02=LTRS (Letter code))
Send/read RTTY TX USOS
(00=OFF, 01=ON)
Send/read RTTY auto CR+LF by TX using
the [F12] key on the keyboard
(00=OFF, 01=ON)
Send/read RTTY time stamp set
(00=OFF, 01=ON)
Send/read clock selection for RTTY time
stamp (0=Local time, 1=CLOCK2)
Send/read RTTY frequency stamp
(00=OFF, 01=ON)
Send/read received RTTY text font color
Send/read transmitted RTTY text font color
Send/read RTTY time stamp text font color
Send/read text font color in RTTY TX buffer
Send/read the RTTY log function
(00=OFF, 01=ON)
Send/read the file saving format for the
RTTY log (00=Text, 01=HTML)
Send/read the file saving memory device for
the RTTY log
(00=SD card, 01=USB flash drive)
Send/read averaging function for PSK FFT
scope
( 00=OFF,
01=Averaging the two observations,
02=Averaging the three observations,
03=Averaging the four observations)
Send/read PSK FFT scope waveform color
Set/read PSK AFC function tuning range
(00=±8 Hz, 01=±15 Hz)
Send/read PSK time stamp set
(00=OFF, 01=ON)
Send/read clock selection for PSK time
stamp (0=Local time, 1=CLOCK2)
Send/read PSK frequency stamp
(00=OFF, 01=ON)
Send/read received PSK text font color
Send/read transmitted PSK text font color
Send/read PSK time stamp text font color
Send/read text font color in PSK TX buffer
Send/read the PSK log function
(00=OFF, 01=ON)
Send/read the file saving format for the PSK
log (00=Text, 01=HTML)
Send/read the file saving memory device for
the PSK log
(00=SD card, 01=USB flash drive)
Send/read scan speed (00=Low, 01=High)
Send/read scan resume (00=OFF, 01=ON)
Send/read audio FFT scope display type
(00=Fill, 01=Fill+Line)
Send/read the Audio FFT scope waveform
color
Send/read the Audio FFT scope waterfall
display (00=OFF, 01=ON)
Send/read the Audio Oscilloscope scope
waveform color
Send/read antenna selection for 0.03 to
1.60 MHz band
Send/read antenna selection for 1.60 to
2.00 MHz band
Send/read antenna selection for 2.00 to
6.00 MHz band
Send/read antenna selection for 6.00 to
8.00 MHz band
Send/read antenna selection for 8.00 to
11.00 MHz band
Send/read antenna selection for 11.00 to
15.00 MHz band
Send/read antenna selection for 15.00 to
20.00 MHz band
Befehl Sub-Befehl Daten
1A*
05 0299 s. S. 18-12
0300 s. S. 18-12
0301 s. S. 18-12
0302 s. S. 18-12
0303 s. S. 18-12
0304 00 or 01
0305 00 to 02
0306 00 or 01
0307 00 or 01
0308 00 to 02
0309 00 to 20
0310 00 to 03
0311 00 to 09
0312 0000 to
0255
06
s. S. 18-11
07
00 or 01
08
00 to 02
09
0000 to
0440
0A
s. S. 18-12
0B
00 or 01
0C
00 to 02
1B
00
s. S. 18-12
01
s. S. 18-12
1C
00
00
01
01
00
01
02
02
00
01
03
s. S. 18-12
1E
00
01
s. S. 18-12
02
03
s. S. 18-12
21
00
s. S. 18-12
01
00 or 01
02
00 or 01
25
s. S. 18-13
26
s. S. 18-13
18-9
STEUERBEFEHLE
Beschreibung
Send/read antenna selection for 20.00 to
22.00 MHz band
Send/read antenna selection for 22.00 to
26.00 MHz band
Send/read antenna selection for 26.00 to
30.00 MHz band
Send/read antenna selection for 30.00 to
45.00 MHz band
Send/read antenna selection for 45.00 to
60.00 MHz band
Send/read antenna temporary memory set
(00=OFF, 01=ON)
Send/read antenna selection
( 00=[ANT]: Auto/[RX-I/O]: Auto,
01=[ANT]: Auto/[RX-I/O]: Manual,
02=[ANT]: Manual/[RX-I/O]: Manual)
Send/read usage for ANT2
(00=OFF, 01=TX/RX)
Send/read usage for ANT3
(00=OFF, 01=TX/RX)
Send/read usage for ANT4
(00=OFF, 01=TX/RX, 02= RX)
Send/read VOX delay
(00=0.0 sec. to 20=2.0 sec.)
Send/read VOX voice delay
( 00=OFF, 01=Short, 02=Mid., 03=Long)
Send/read NB depth (00=1 to 09=10)
Send/read NB width (0000=1 to 0255=100)
Send/read DATA mode with filter set
Send/read 1.2 kHz filter calibration
(00=Stop, 01=Start)
Read 1.2 kHz filter calibration result
(00=Calibrating, 01=Succeeded, 01=Failed)
Send/read 1.2 kHz filter calibration adjusted
value (0000=0% to 0440=100%)
Send/read limited TX output power level for
the TX power limit function
Send/read NTP server access
(00=Stop, 01=Start)
Read NTP server access result
(00=Accessing, 01=Succeeded, 02=Failed)
Send/read repeater tone frequency
Set/read TSQL tone frequency
Send/read transceiver's status (RX)
* When "CI-V Output (for ANT)" (Command:
1A 05 0157) is set to "ON," automatically
outputs when changed.
Send/read transceiver's status (TX)
* When "CI-V Output (for ANT)" (Command:
1A 05 0157) is set to "ON," automatically
outputs when changed.
Send/read the antenna tuner OFF (through)
Send/read the antenna tuner ON
Send/read to tuning
Send/read transmit frequency monitor
setting OFF
Send/read transmit frequency monitor
setting ON
Read transmit frequency
* When "CI-V Output (for ANT)" (Command:
1A 05 0157) is set to "ON," automatically
outputs when changed.
Read number of available TX frequency
band
Read TX band edge frequencies
Read number of user-set TX frequency band
Send/read user-set TX band edge frequencies
Send/read RIT frequency
Send/read RIT setting (00=OFF, 01=ON)
Send/read
TX setting (00=OFF, 01=ON)
:
Send/read the main or sub band frequency
Send/read the selected operating mode and
filter
18
