The following conditions must be met in order to connect absolute encoders to the SSI interface:
- Only absolute encoders with a monoflop time between 20 µsec and 260 µsec can be used.
- Absolute encoders with a maximum 24 Bit (AG24) or 32 Bit (AG32) can be read.
The function blocks AG24 and AG32 are provided for the operation. They are contained in the standard
software package 4 SWPLCPOS01-0 (rev. 00.32 or higher).
20. IF4 - B&R ONLINE INTERFACE
For communication with the programming device, the Compact PLC uses an on-line interface. The on-
line interface is a TTY interface which runs at 62.5 kBaud and is only used for on-line operation with
the programming device.
The connection to the programming device is made with an online cable (BRKAOL-0).

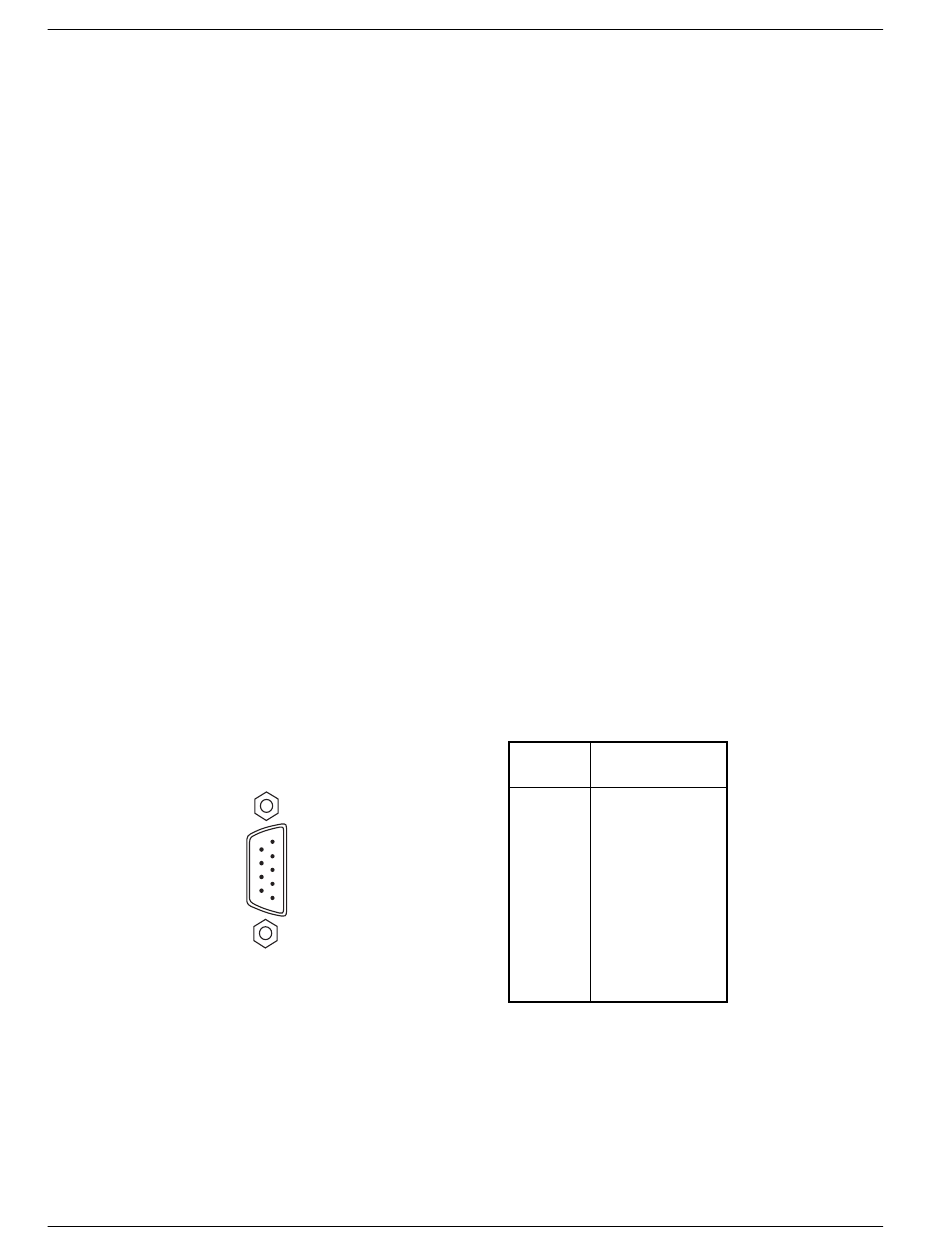

Pin-outs
9 Pin D-Type
Connector (M)
- 216 -
1
6
9
5
Pin Assignment
1 TXD
2 Reserved
3 RXD RET
4 Reset RET
5 Reserved
6 TXD RET
7 RXD
8 Reset
9 Reserved
