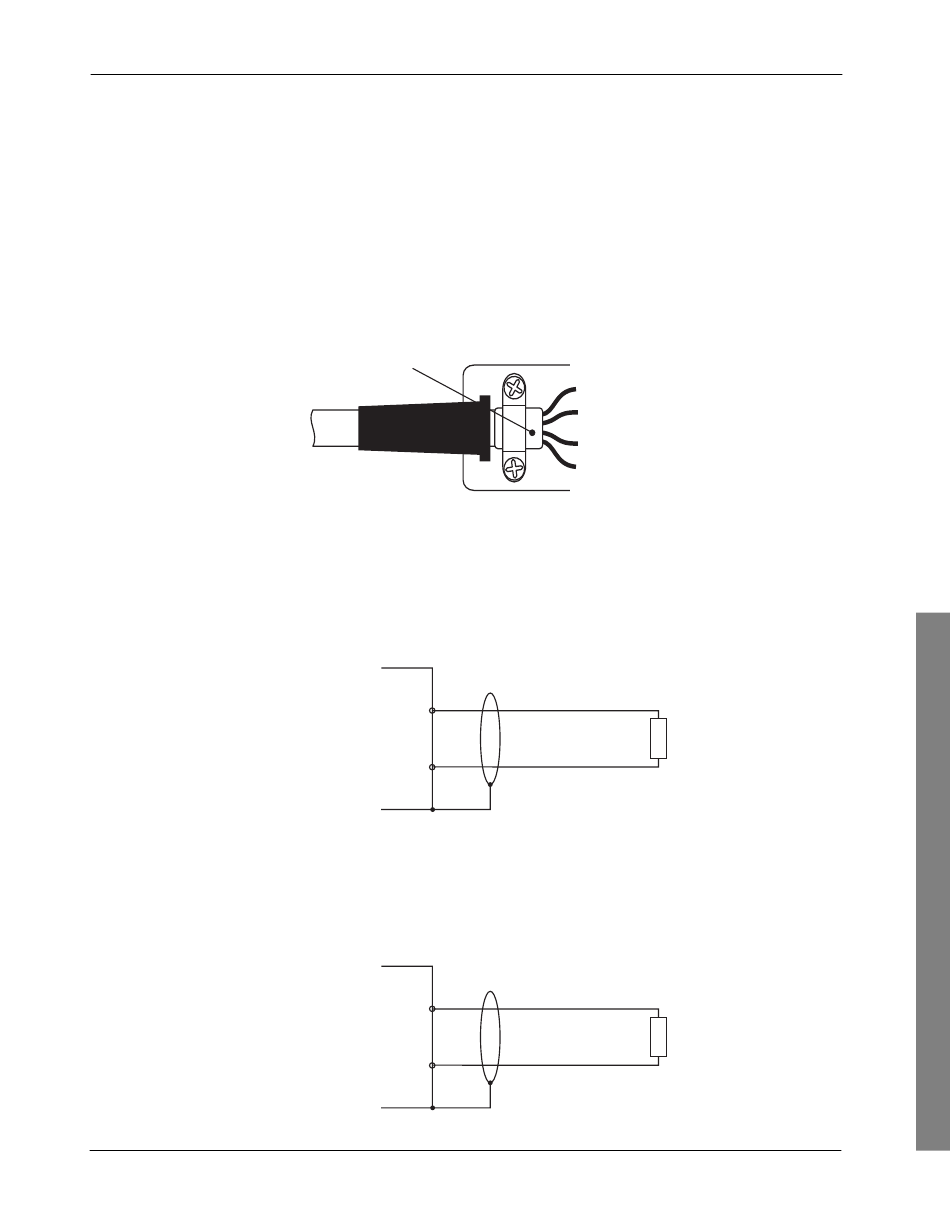

13.4 GROUNDING YOUR CABLE SHIELDING
Metal screws or a metallic connector housing are the easiest and most efficient methods of diverting
any possible disturbances to the housing of the Compact PLC.
The cable shielding should be in direct contact with the connector housing.
13.5 WIRING
Voltage output
9 pin
D-type (female)
Current output
9 pin
D-type (female)
Shielding connected
with cable clamp
and housing
V
GND
I
GND
